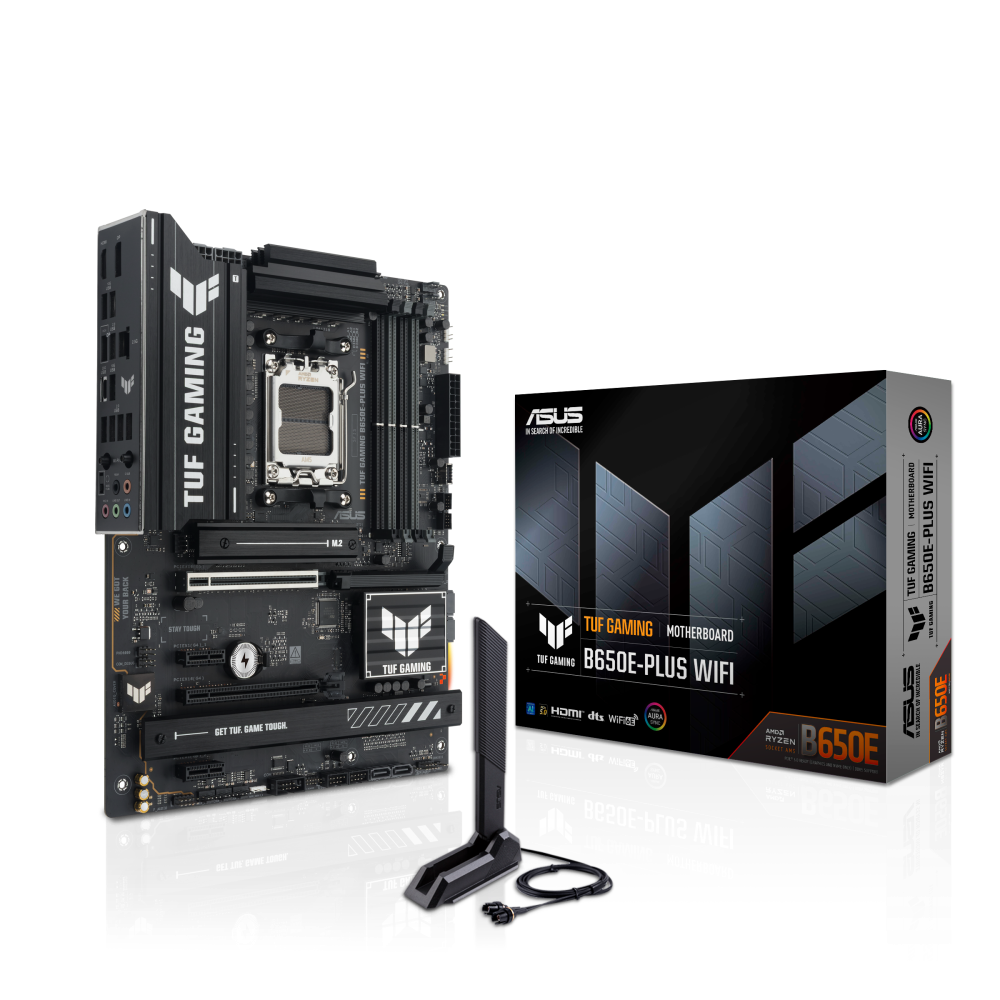

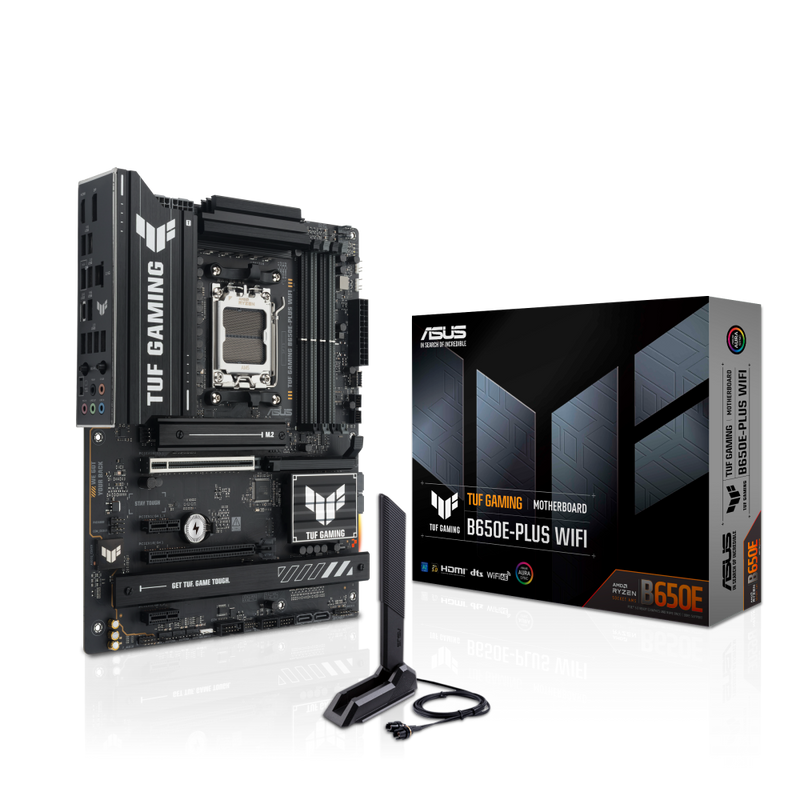

ASUS TUF GAMING B650E-PLUS WIFI MOTHERBOARD - 197105995499
Price shown in SGD.
Pair this with
View all
AMD RYZEN 7 9800X3D 4.7GHz 8C/16T 104MB CACHE TRAY PROCESSOR(4YRS) - 100-000001084
$645.00
AMD Ryzen 7 7800X3D 8 Core AM5 Zen4 PCIe 5.0 CPU/TRAY Processor - 100-000000910
$423.00
AMD RYZEN 9 9950X3D 4.3GHz 16C/32T 144MB CACHE TRAY PROCESSOR(4YRS) - 100-000000719
$959.00
AMD RYZEN 5 5600 3.5GHz 6CORE/12THREAD AM4 TRAY PROCESSOR(3YRS BY AMD) - 100-000000927
$179.00
AMD Ryzen 7 7700 8 Cores / 16 Threads 65 Watts 40MB Cache Gaming Processor / CPU - 100-000000592
$258.00
Product details
CPU
AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
Chipset
AMD B650 Chipset
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
Graphics
1 x DisplayPort
1 x HDMI™ port
Expansion Slots
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen™ 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x1 slots
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen™ 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Ethernet
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wireless & Bluetooth
Wi-Fi 6E
2x2 Wi-Fi 6E (802.11ax)
Supports 2.4/5/6GHz frequency band
Bluetooth® v5.3
USB
Rear USB (Total 10 ports)
1 x USB 20Gbps port (1 x USB Type-C®)
3 x USB 10Gbps ports (3 x Type-A)
6 x USB 2.0 ports (6 x Type-A)
BIOS
256 Mb Flash ROM, UEFI AMI BIOS
Manageability
WOL by PME, PXE
Accessories
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
2 x M.2 rubber packages
Documentation
1 x Quick start guide
Operating System
Windows 11, Windows 10 64-bit
Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
* For Compatibly of the product, please visit the respective product web site
* Compatibility issues are not covered under warranty or return
* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
$424.00 today.
In stock, 1–2 working day delivery, and a 3 Years local warranty behind every unit.
