Asus ROG STRIX 1000W / 1200W Platinum ATX 3.1 Fully Modular PSU/Power Supply Unit - 4711387594247,4711387594384

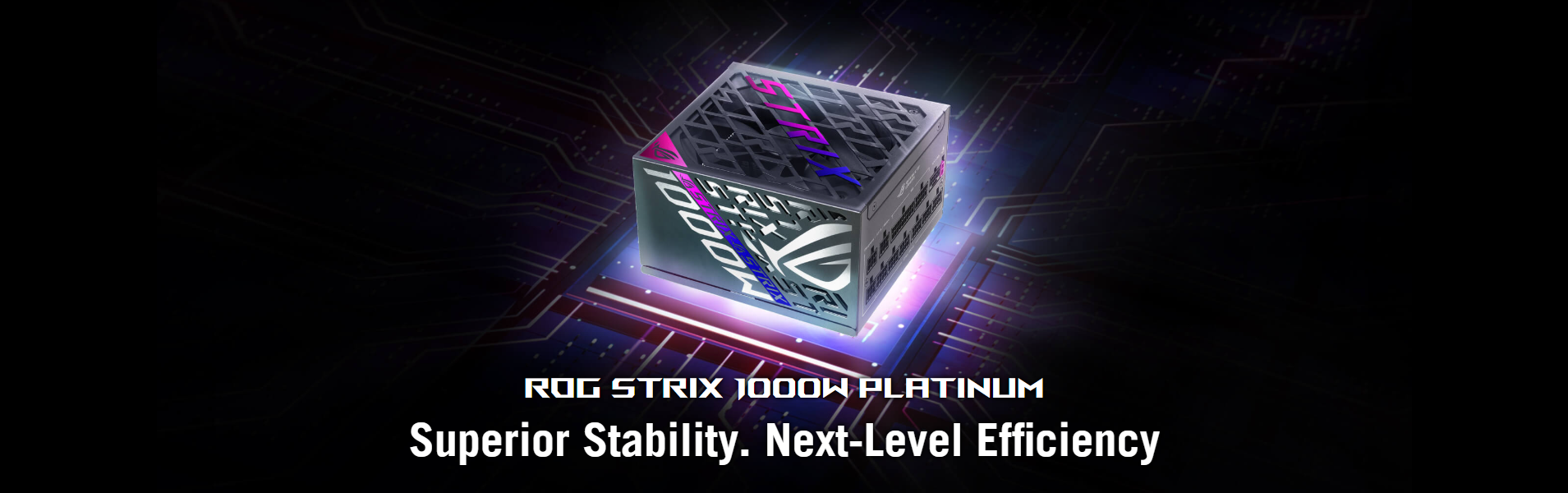

( ROG STRIX 1000W Platinum )

** SPECIFICATIONS **

Model:

- ROG STRIX 1000W Platinum

Intel Form Factor:

- ATX12V

PFC Type:

- Active PFC

ATX Standard:

- ATX 3.1

Dimensions:

- 160 x 150 x 86 mm

Efficiency:

- 80Plus Platinum

MTBF:

- ( >120,000 hrs @ 25°C )

Protection Features:

- OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials:

- ROHS

AC Input Range:

- 100-240Vac

DC Output Voltage:

- ( +3.3V +5V +12V -12V +5Vsb )

Maximum Load:

- ( 25A 25A 83.3A 0.3A 3A )

Combined Load:

- ( 130W 130W 1000W 3.6W 15W )

Total Output:

- 1000W

Cable Connectors:

- MB 24/20-pin x 1

- CPU 4+4-pin x 2

- PCI-E 16-pin x 1 (both PSU & component side)

- PCI-E 6+2-pin x 4

- SATA x 6

- PERIPHERAL x 3

Package Contents:

- Power Cord x 1

- Motherboard Power Cable x 1 (610mm)

- CPU Cable x 2 (1000mm)

- PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)

- PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)

- SATA 1-to-3 Cable x 2 (400+120+120mm)

- Peripheral 1-to-3 Cabel x 1 (400+150+150mm)

- ROG Strix DIY sticker x 1

- User Manual x 1

Weight:

- 1.81 kg (single PSU)

Cybenetics Noise Level Certification:

- A+

0dB Technology:

- Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button:

- Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.

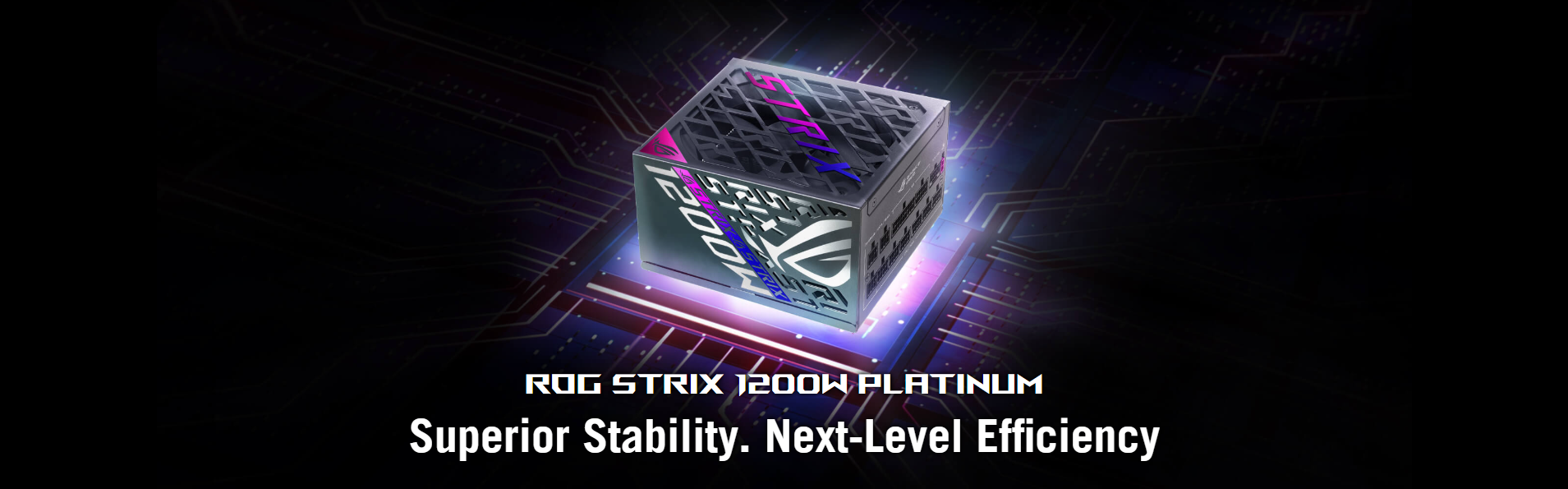

( ROG STRIX 1200W Platinum )

** SPECIFICATIONS **

Model:

- ROG STRIX 1200W Platinum

Intel Form Factor:

- ATX12V

PFC Type:

- Active PFC

ATX Standard:

- ATX 3.1

Dimensions:

- 160 x 150 x 86 mm

Efficiency:

- 80Plus Platinum

MTBF:

- ( >120,000 hrs @ 25°C )

Protection Features:

- OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials:

- ROHS

AC Input Range:

- 100-240Vac

DC Output Voltage:

- ( +3.3V +5V +12V -12V +5Vsb )

Maximum Load:

- ( 25A 25A 100A 0.3A 3A )

Combined Load:

- ( 130W 130W 1200W 3.6W 15W )

Total Output:

- 1200W

Cable Connectors:

- MB 24/20-pin x 1

- CPU 4+4-pin x 2

- PCI-E 16-pin x 1 (both PSU & component side)

- PCI-E 6+2-pin x 4

- SATA x 6

- PERIPHERAL x 3

Package Contents:

- Power Cord x 1

- Motherboard Power Cable x 1 (610mm)

- CPU Cable x 2 (1000mm)

- PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)

- PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)

- SATA 1-to-3 Cable x 2 (400+120+120mm)

- Peripheral 1-to-3 Cabel x 1 (400+150+150mm)

- ROG Strix DIY sticker x 1

- User Manual x 1

Weight:

- 1.84 kg (single PSU)

Cybenetics Noise Level Certification:

- A

0dB Technology:

- Supported. The fan shuts off entirely when the PSU is under certain load

0dB Fan Button:

- Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels.
