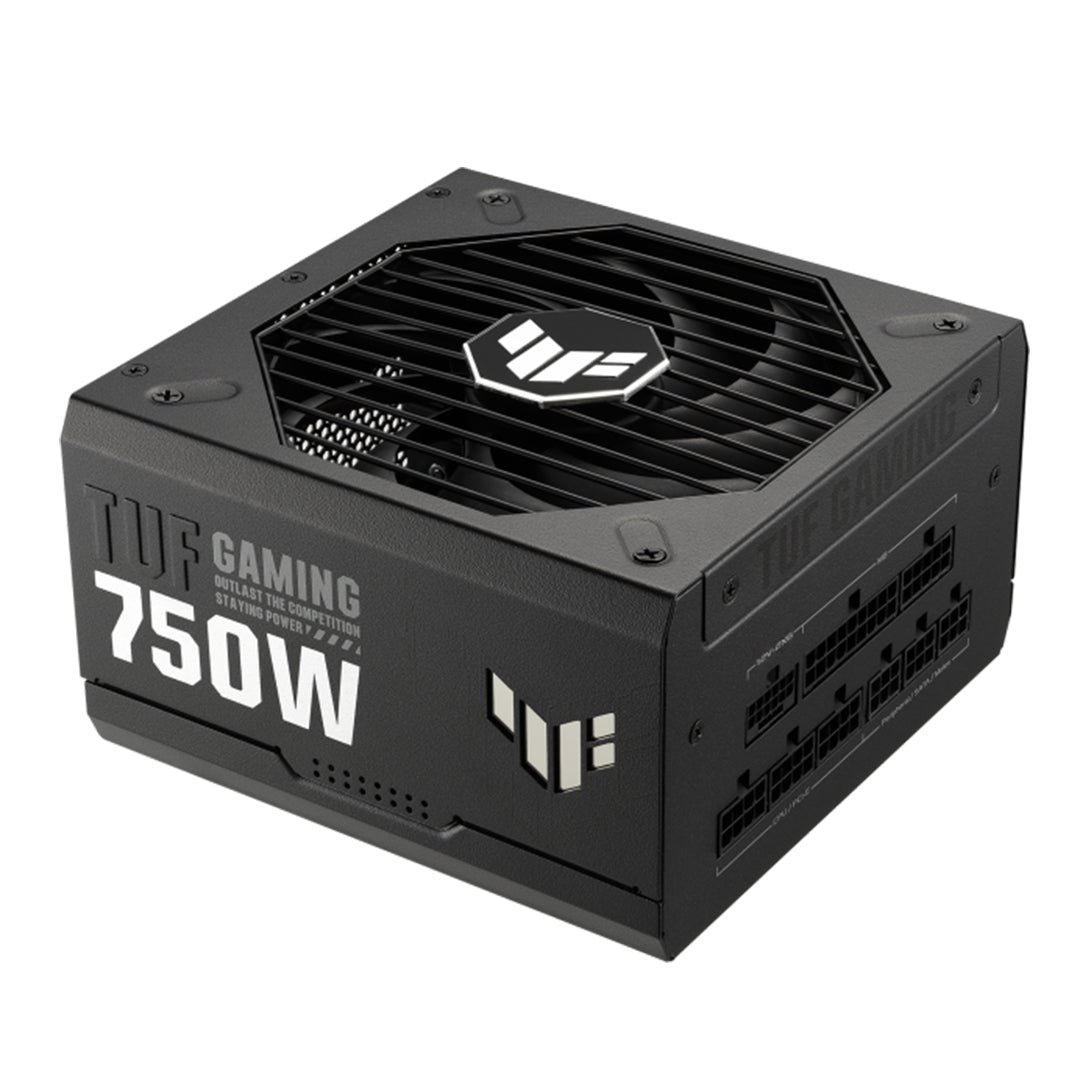

ASUS TUF GAMING 750W GOLD FULL MODULAR PSU - 195553786737

Model

TUF Gaming 750W Gold

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.0

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A62A 0.8A 3A

Combined Load

130W 130W 744W 9.6W 15W

Total Output

750W

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 8-pin x 3
SATA x 5
PERIPHERAL x 4

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (650mm)
PCI-E Gen 5 16-pin Cable x 1 (675mm)
PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 1 (675mm)
SATA 1-to-2 Cable x 1 (400+120mm)
SATA 1-to-3 Cable x 1 (400+120+120mm)
Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)
TUF Gaming Cable Tie x 3
User Manual x 1

Weight

2.38kg (single PSU)

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load

10 Years
