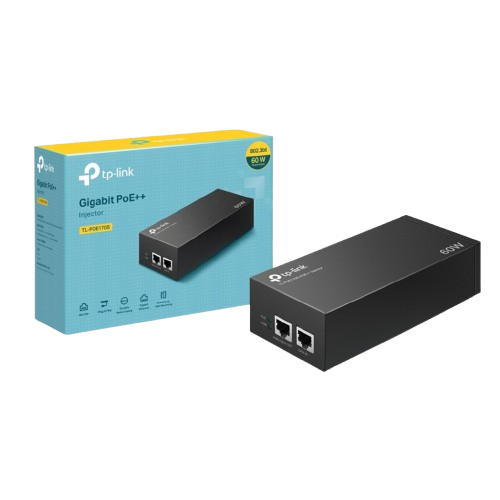

TP-Link TL-POE170S PoE++ Injector 60W - 4897098683897

NETWORK

-Standards and Protocols-

IEEE802.3i, IEEE802.3u, IEEE802.3ab, IEEE802.3af, IEEE802.3at, IEEE802.3bt*

PACKAGE CONTENTS

PoE++ Injector TL-POE170S

Installation Guide

Power Cord

RJ45 Cable

HARDWARE FEATURES

-Network Media-

10BASE-T: UTP category 3, 4, 5 cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

100BASE-TX: UTP category 5, 5e cable (maximum 100 m)

EIA/TIA-568 100Ω STP (maximum 100 m)

1000BASE-T: UTP category 5, 5e, 6 cable(maximum 100 m)

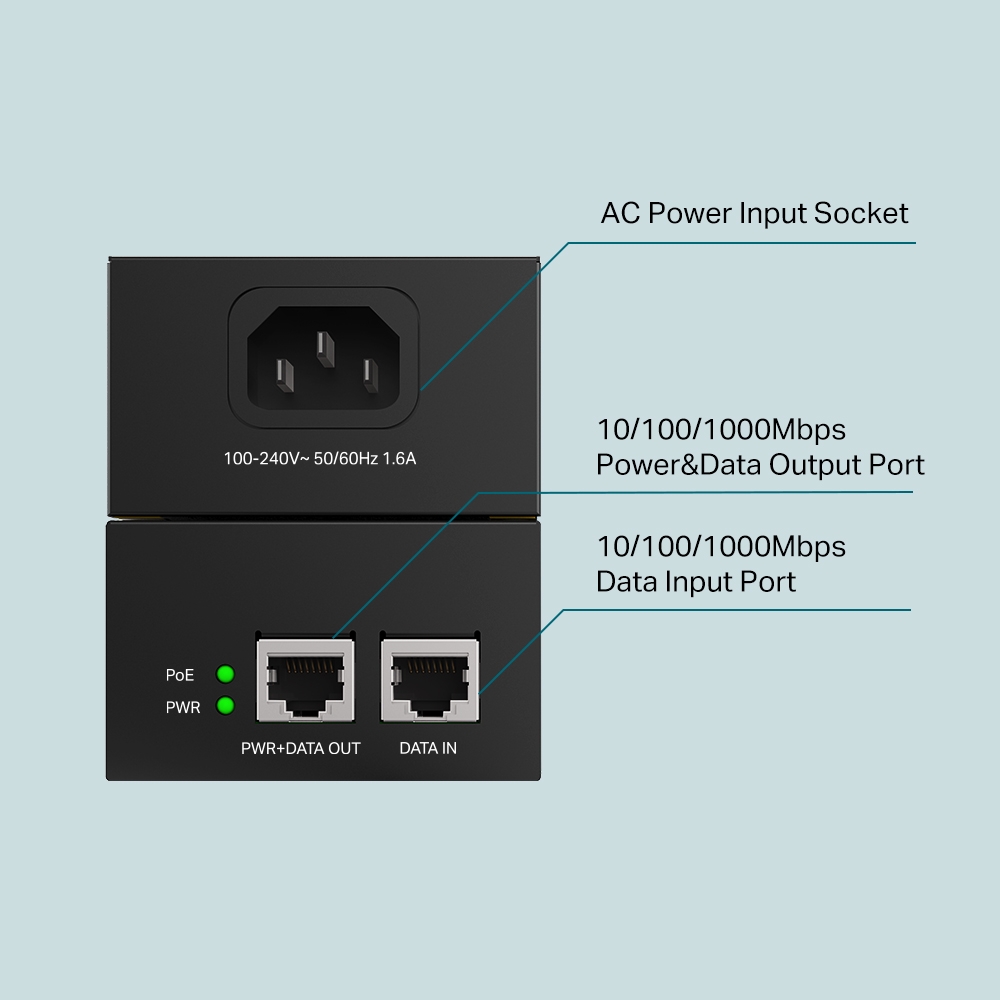

-Ports-

1 10/100/1000Mbps RJ45 data-in port

1 10/100/1000Mbps RJ45 power+data-out port

1 AC socket

-Power Consumption-

Input: 100-240 V, 50/60 Hz, 1.6A

Output: Auto-determine the necessary power requirements (max. 60 W)

-Basic Functions-

Auto-Sensing Algorithm enables providing power with 802.3af/at/bt* PD

Auto-determine the necessary power requirements

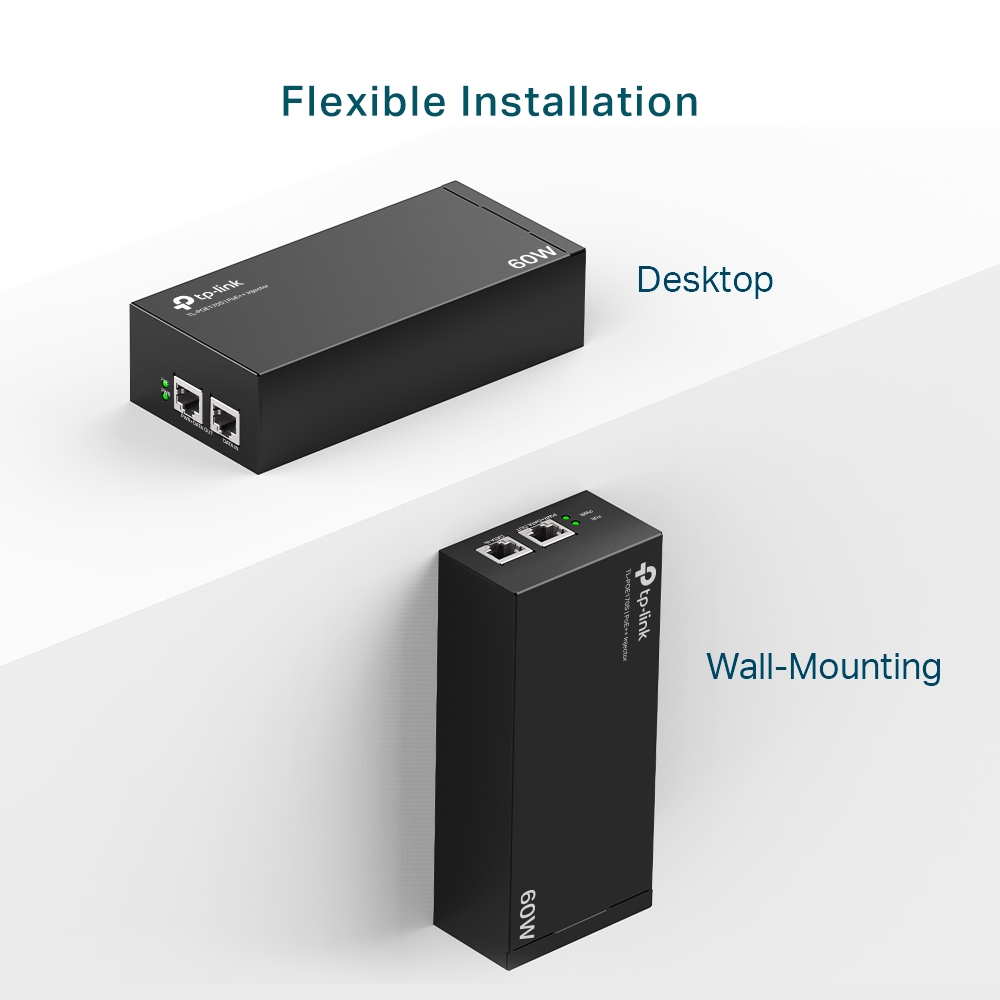

Wall-mounting and desktop installation supported

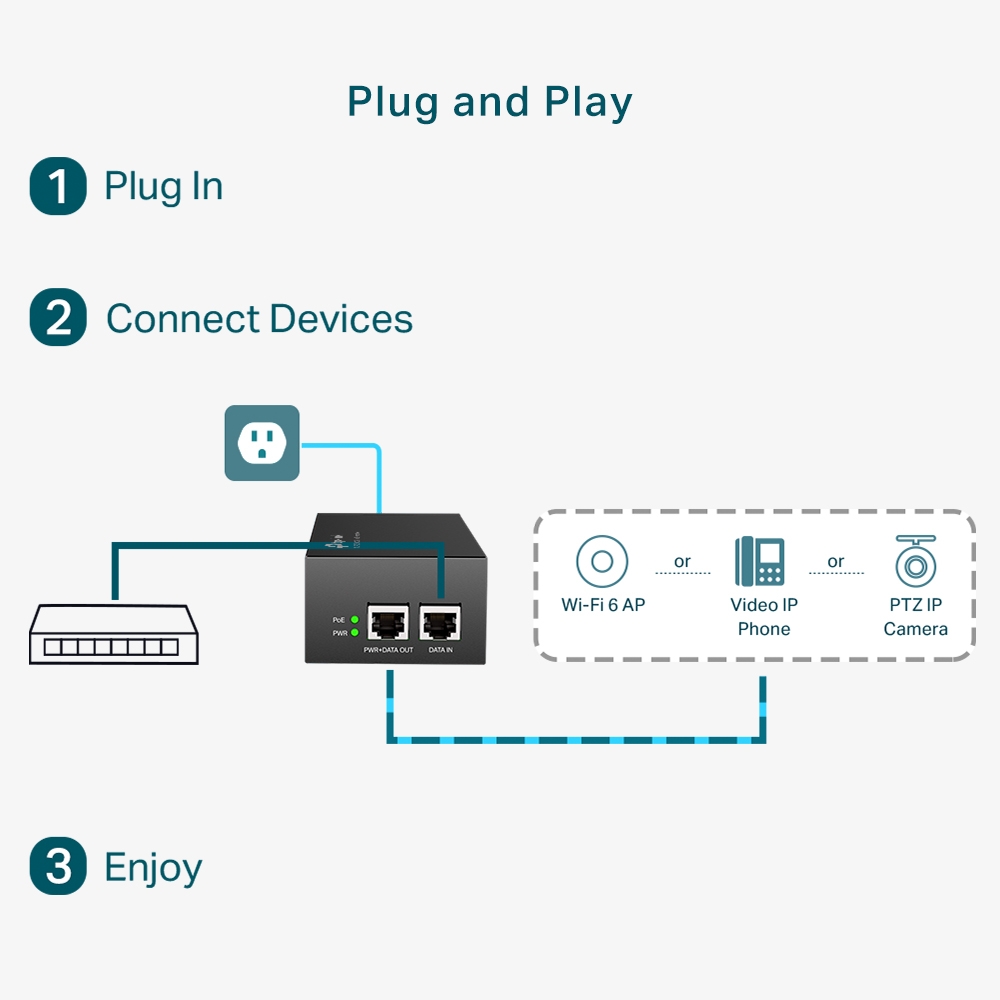

Plug-and-Play

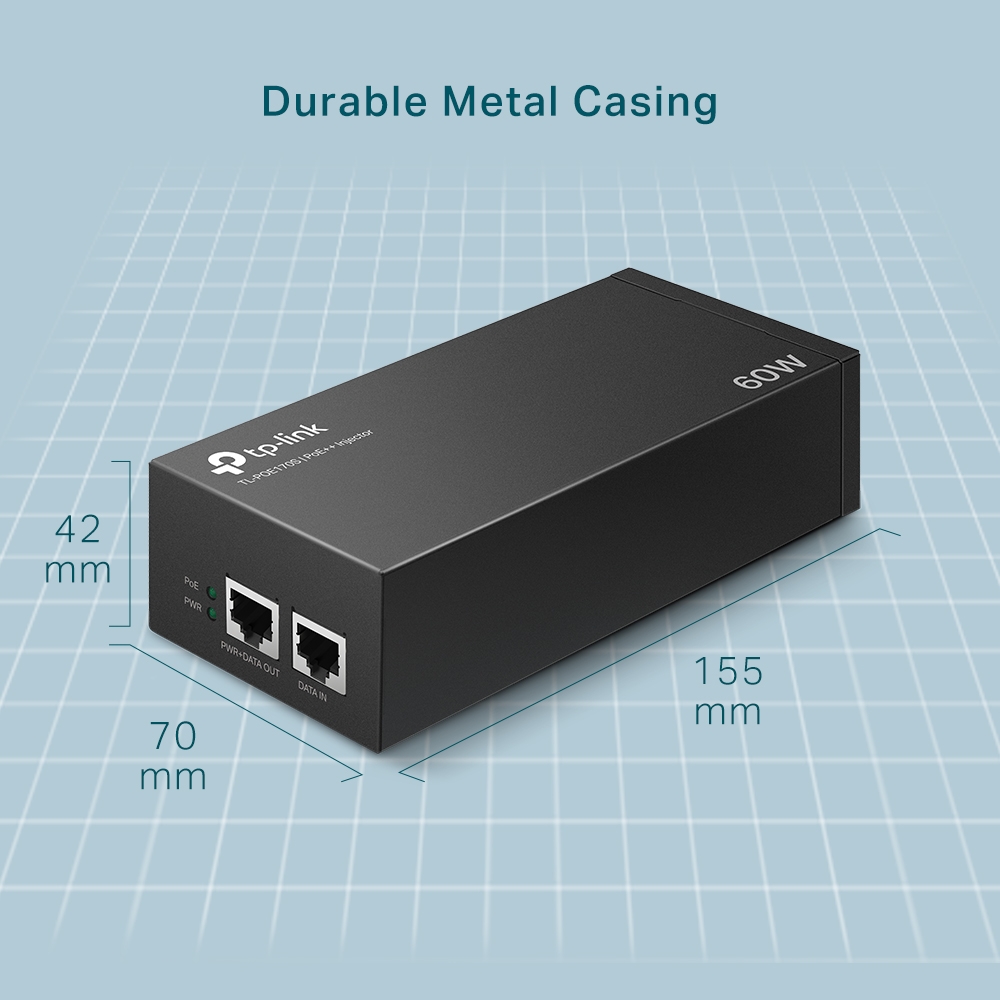

-Dimensions ( W x D x H )-

6.1*2.8*1.7 in (155*70*42 mm)

GENERAL

-Certifications-

FCC, CE, RoHS

-Environment-

Operating Temperature: 0°C to 45°C (32°F to 113°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Operating Humidity: 10% to 90%RH non-condensing

Storage Humidity: 5% to 90%RH non-condensing

-Material-

Metal Casing
