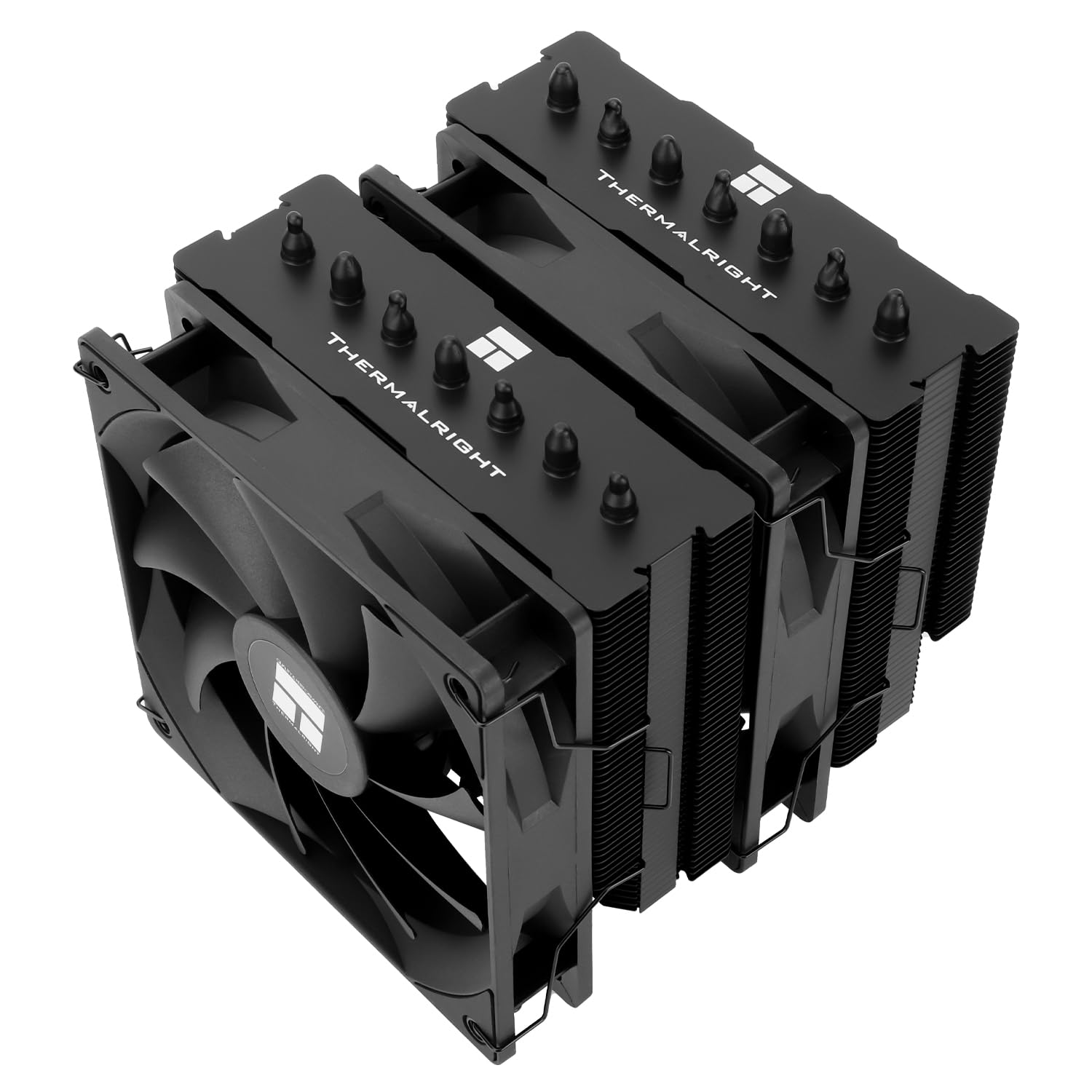

Thermal right Phantom Spirit 120 SE
CPU Air Cooler, 7 Heat Pipes, Dual 120mm, TL-C12B V2 PWM Fan, AGHP 4.0 Technology, S-FDB Bearing, For AMD: AM4/AM5, For Intel: 1700/1150/1151/1200
-
【Brand Overview】: Thermal right is a Taiwanese brand with more than 20 years of development history. It has a certain popularity in the domestic and international markets and has a decisive influence in the cooler market. We have been focusing on the research and development of computer accessories. The R&D product line includes: CPU coolers, case fans, silicone pad, thermal paste, mounting brackets, accessories and other products.
-
【AGHP technique】: 7x6mm heat pipe with AGHP upgraded 4th generation technology, the Inverse gravity effect caused by vertical / horizontal orientation. Up to 20000 hours of industrial service life, S-FDB bearings ensure long service life of air-cooler radiators. UL class a safety insulation low-grade, industrial strength PBT + PC material to create high-quality products for you. The height is 154mm, compatible with a wide range of chassis models.
-
【Product specification】: Phantom Spirit 120SE; CPU Cooler dimensions: 125(L)x110(W)x154(H)mm (4.92x4.3x 6.06 inch); Product weight:0.9kg(1.98lb); heat sink material: aluminum, the main body is made of anodized black frosted top + finely carved pure copper base technology, avoiding the memory design, the main body is fully aluminum fins, bringing maximum heat dissipation area, combined with the high thermal conductivity of the thermal paste, which can perfectly perform the cooler's most powerful cooling effect.
-
【PWM Fan】: TL-C12B V2; Standard size industrial grade PWM performance PC fan: 120x120x25mm (4.92x4.92x0.98 inches); Fan speed (RPM): 1500rpm±10%; Power port: 4-pin; Voltage: 12V; Air flow: 66.17CFM (max); Noise level ≤25.6dB(A), high performance fan combined with efficient heat dissipation The cooling body of the unit gives you the best cooling effect.
-
【Compatibility】: CPU cooling slot support: Intel: LGA1700/1150/1151/1155/ 1156/1200, AMD: AM4/AM5; for different CPU slot platforms, provide the corresponding mounting plate or fasteners, can be combined with the installation instructions or follow the tutorial to get on the machine.
PRODUCT DESCRIPTION
TECHNICAL SPECIFICATIONS :
HEATSINK SPECIFICATIONS :
DIMENSION : L110 mm x W125 mm x H154 mm
WEIGHT : 765g
HEAT PIPES : 6mm heatpipe x 7 units
Copper Base : C1100 Pure copper nickel plated
TL-C12B-S V2 FAN SPECIFICATIONS :
DIMENSION : L120 mm x W120 mm x H25 mm
WEIGHT : 135g
RATED SPEED : 1500 RPM±10% (MAX)
NOISE LEVEL : 25.6 dBA
AIR FLOW : 66.17 CFM (MAX)
AIR PRESSURE : 1.53 mm H2O (MAX)
AMPERE : 0.20 A
CONNECTOR : 4 Pin (PWM Fan connector)
BEARING TYPE : S-FDB Bearing
