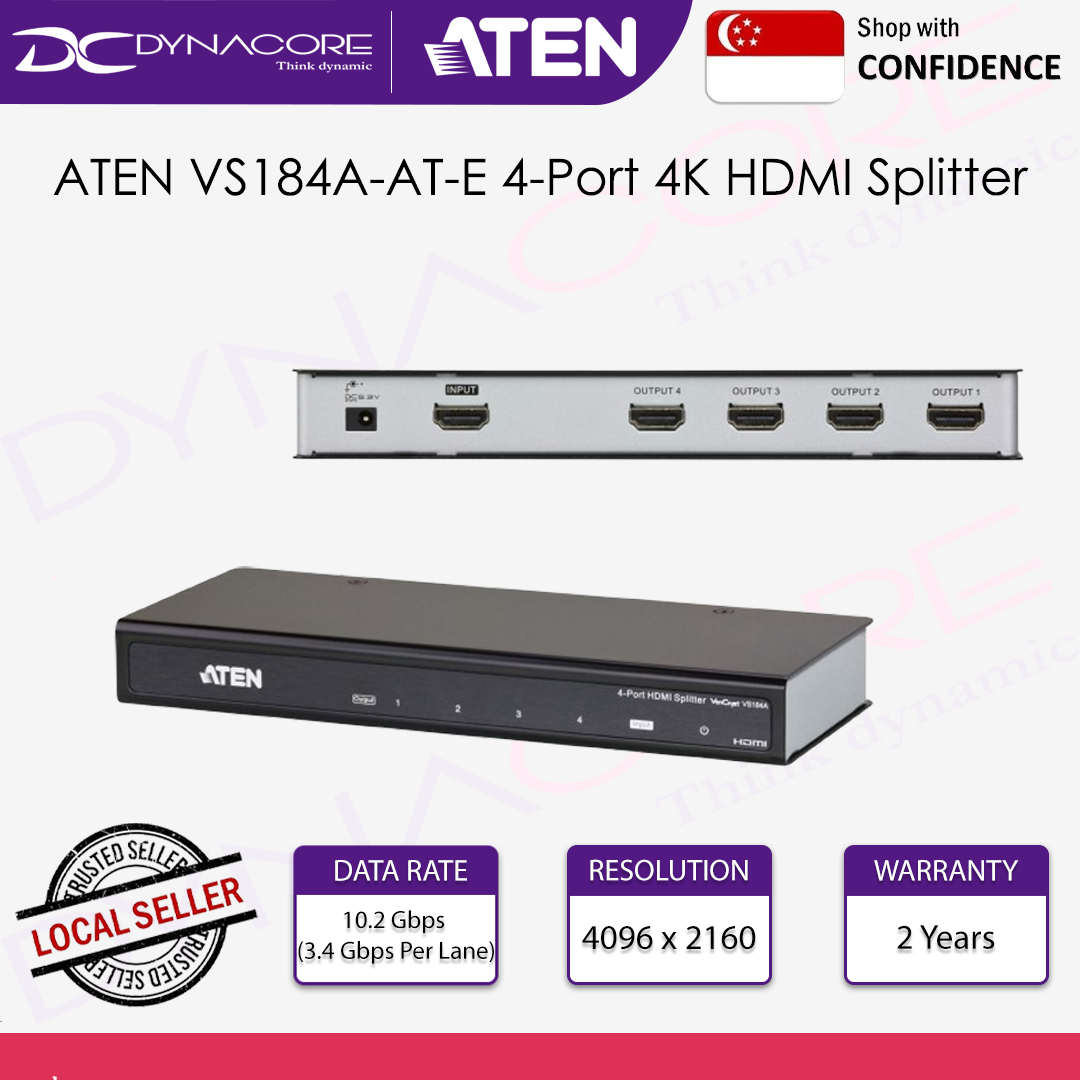

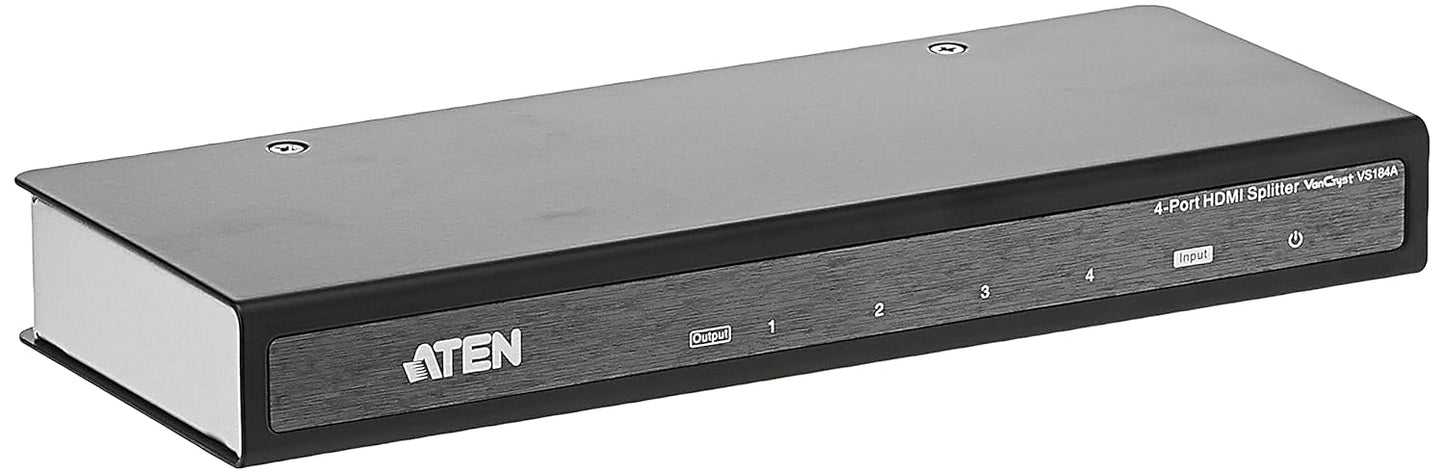

ATEN VS184A-AT-E 4-Port 4K HDMI Splitter - 672792004377

Video Input

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

3m @3840x2160@30Hz (4:4:4)

Video Output

• Interfaces

4 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

15m @3840x2160@30Hz (4:4:4)

Video

• Max. Data Rate

10.2 Gbps (3.4 Gbps Per Lane)

• Max. Pixel Clock

340 MHz

• Compliance

HDMI (3D, Deep Color, 4K);
HDCP Compatible

• Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

• Input

1 x HDMI Type A Female (Black)

• Output

4 x HDMI Type A Female (Black)

Connectors

• Power

1 x DC Jack

• Power Consumption

DC5.3V:6.02W:28BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0-50 °C

• Storage Temperature

-20 - 60°C

• Humidity

0 - 80% RH, Non-Condensing

Physical Properties

• Housing

Metal

• Weight

0.47 kg ( 1.04 lb )

• Dimensions (L x W x H)

20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

• Carton Lot

20 pcs

• Package Contents

1x VS184A 4-Port HDMI Splitter
1x Power Adapter
1x HDMI Cable
1x User Instructions

2 Years
