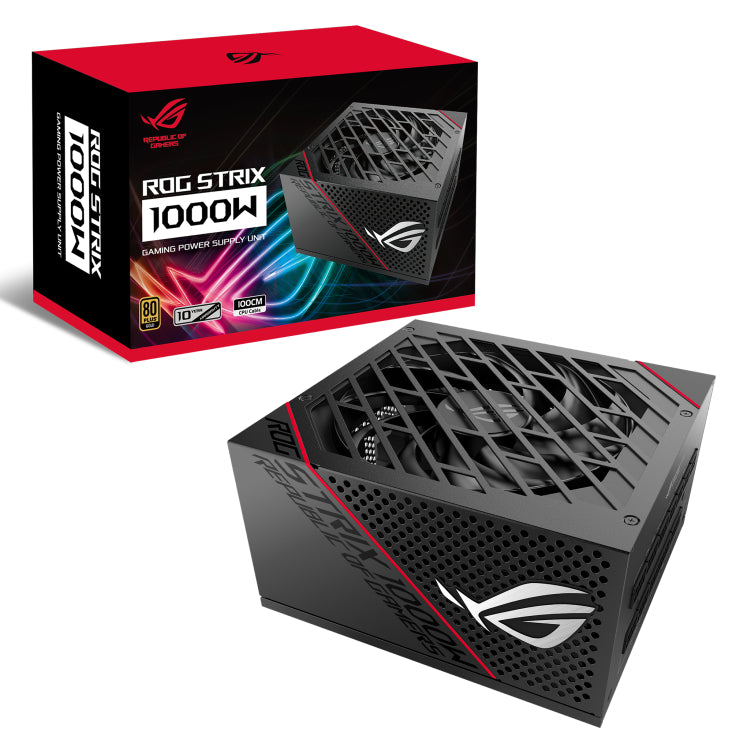

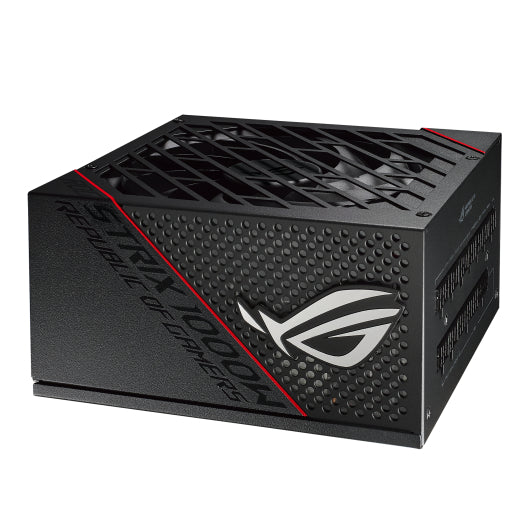

ASUS ROG STRIX 1000W 80+ GOLD FULLY MODULAR PSU(10YRS) - 4711387246115

** SPECIFICATIONS **

Model:

- ROG-STRIX-1000G

Intel Specification:

- ATX12V

PFC Type:

- Active PFC

Dimensions:

- 16 x 15 x 8.6 Centimeter

Efficiency:

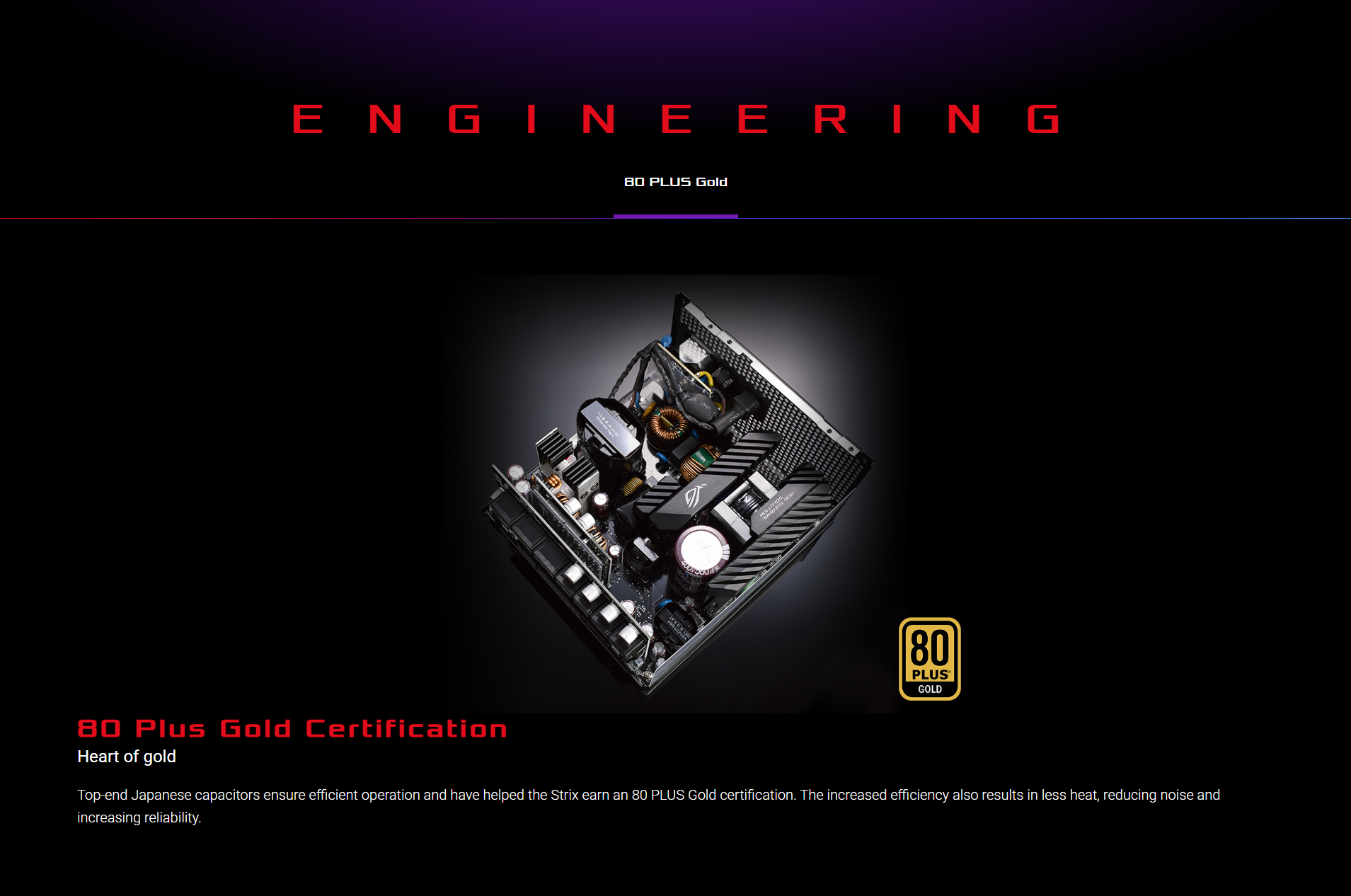

- 80Plus Gold

MTBF:

- ( >120,000 hrs @ 25°C )

Protection Features:

- OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials:

- ROHS

AC Input Range:

- 100-240Vac

DC Output Voltage:

- ( +3.3V +5V +12V -12V +5Vsb )

Maximum Load:

- 25A 25A 83A 0.3A 3A

Combined Load:

- 125W 996W 3.6W 15W

Total Output:

- 1000W

Cable Connectors:

- MB 24/20-pin x 1

- CPU 4+4-pin x 2

- PCI-E 6+2-pin x 6

- SATA x 8 PERIPHERAL x 6

Package Contents:

- Power Cord x 1

- Motherboard Power Cable x 1 (610mm)

- CPU Cable x2 (1000mm)

- PCIE 1-to-2 Cable x3 (675+75mm)

- SATA 1-to-4 Cable x1 (410+150+150+150mm)

- SATA 1-to-4 Cable x1 (450+120+120+120mm)

- Peripheral 1-to-3 Cable x2 (450+120+120mm)

- ROG badge x 2

- ROG logo magnet x 1

- ROG label x 3

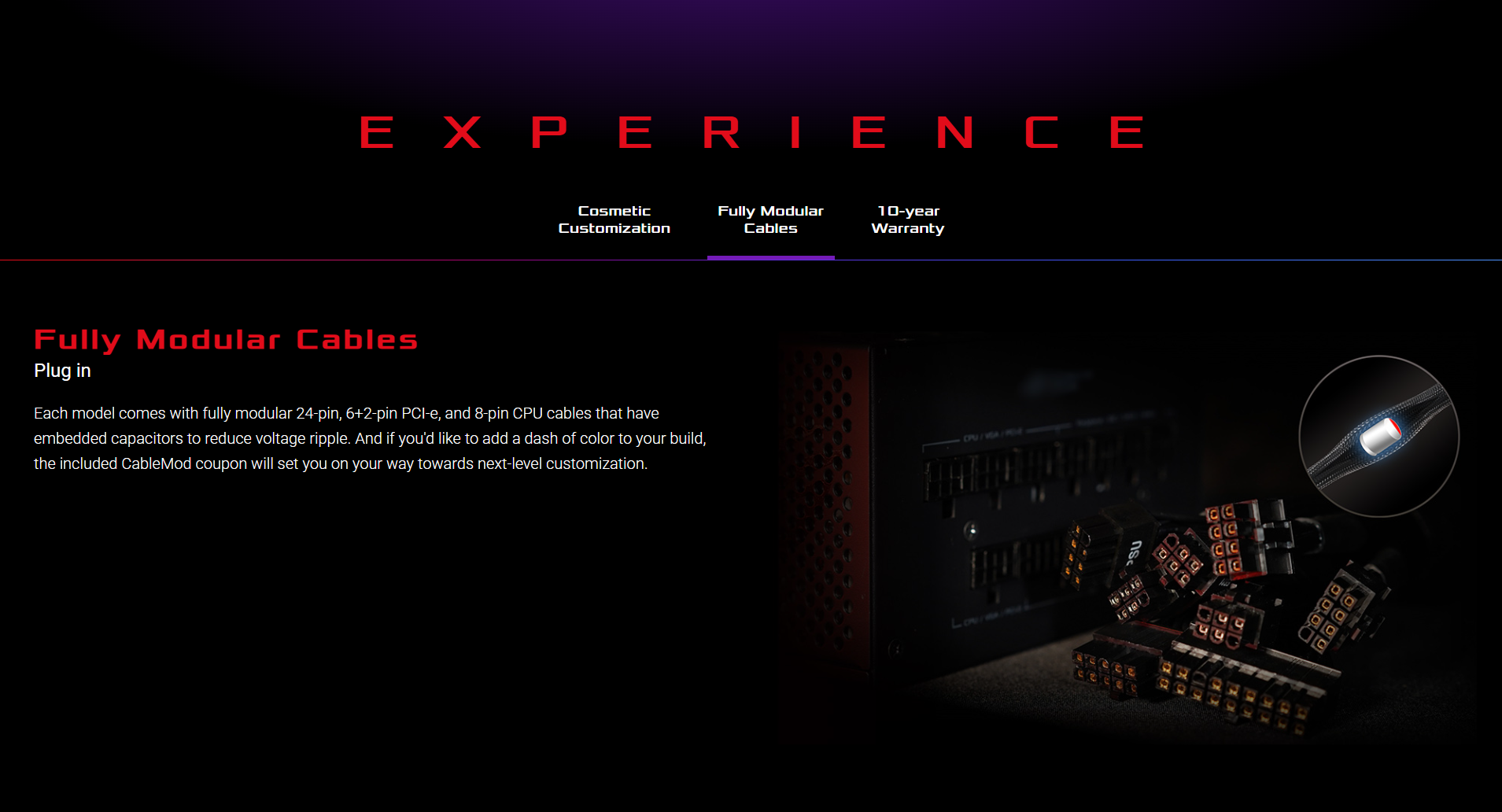

*MB/ CPU/ PCI-E cables come with embedded capacitors in the middle.

Weight:

- 1.885 Kg

Cybenetics Noise Level Certification:

- NA

0dB Technology:

- Supported. The fan shuts off entirely when the PSU is under certain load
