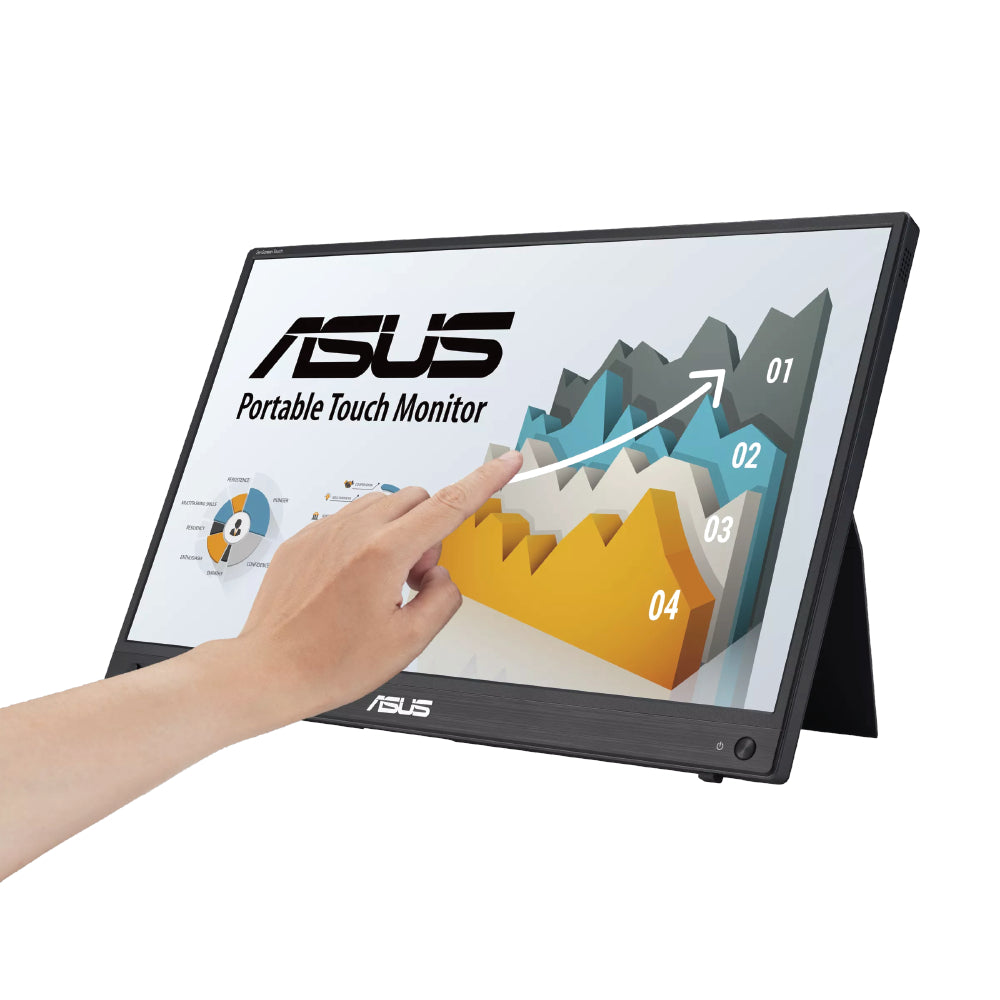

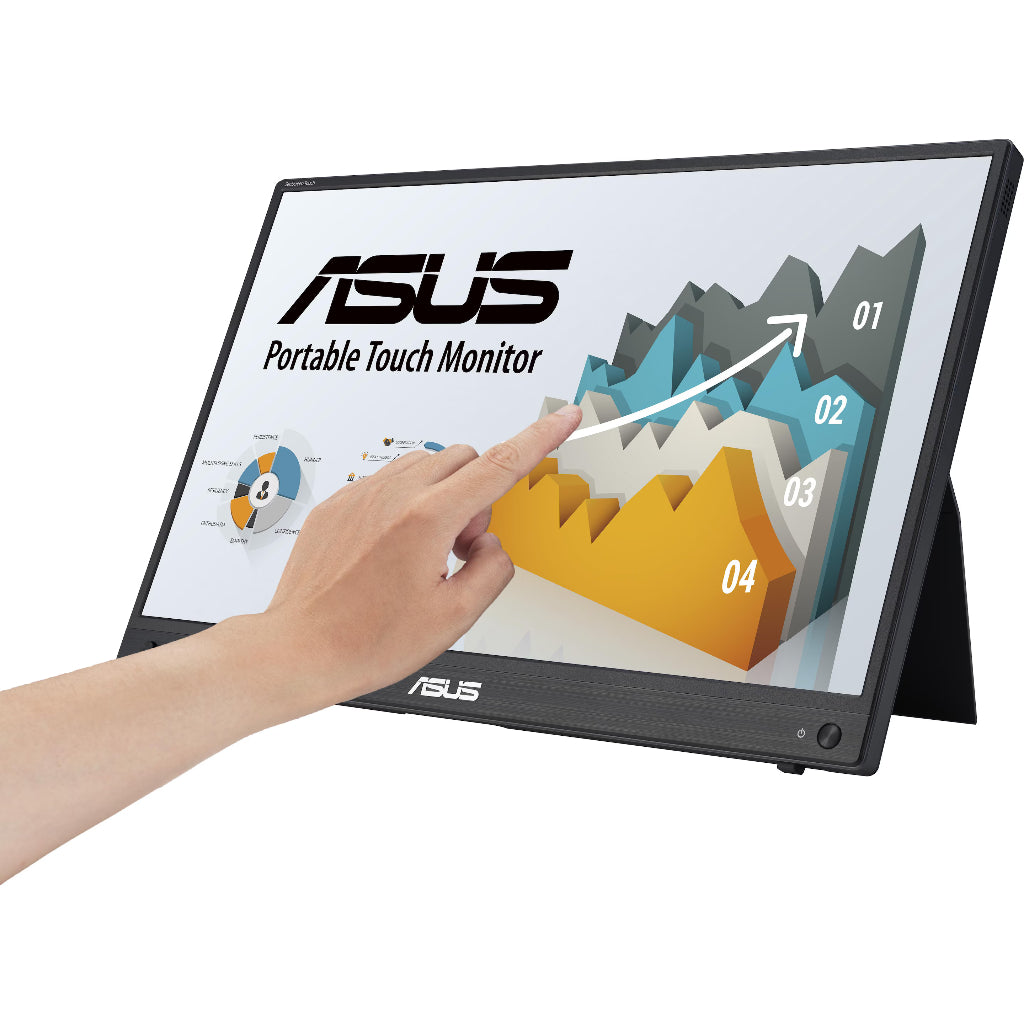

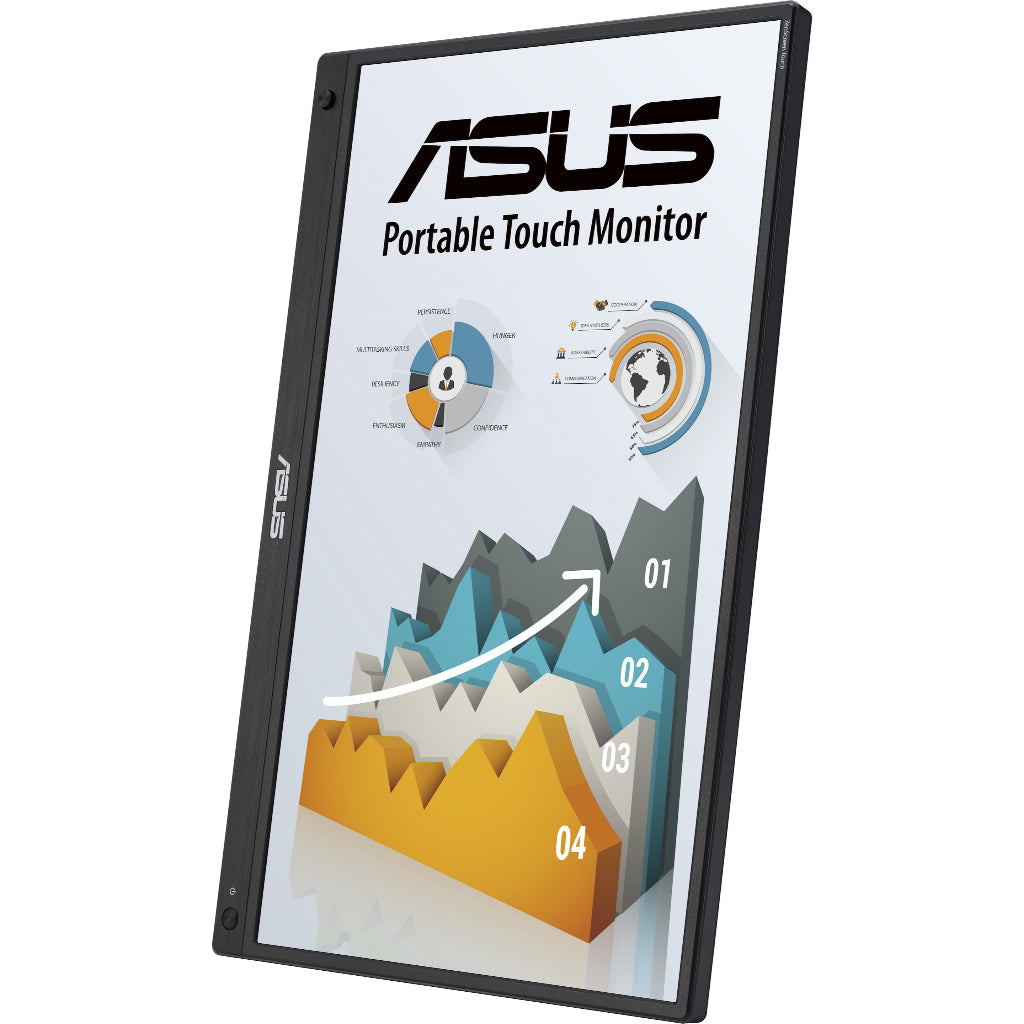

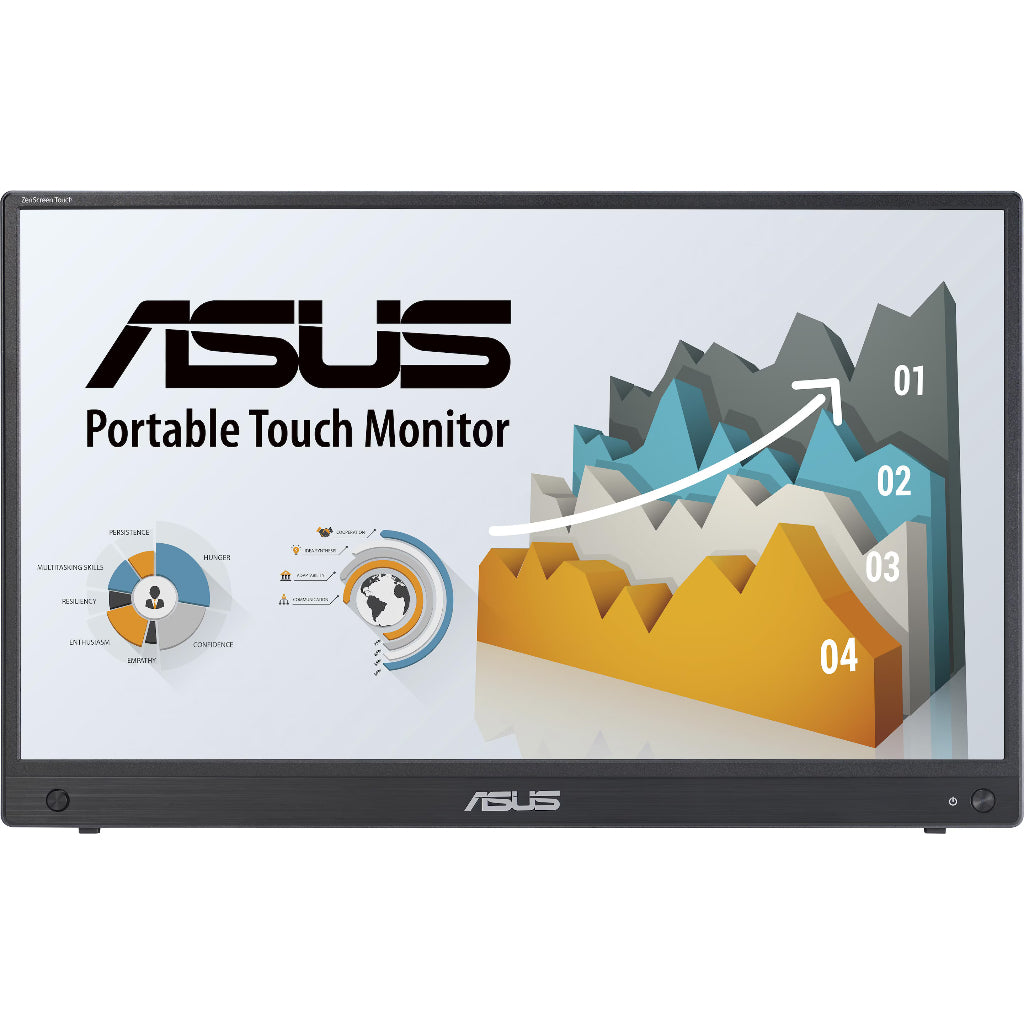

ASUS ZenScreen Touch MB16AMTR Portable Monitor - 16", Full HD, IPS, 10-point touch, Built in Battery, USB-C, Mini HDMI - ASUSMB16AMTR

Specification

Display

Panel Size (inch) : 15.6

Aspect Ratio : 16:9

Display Viewing Area (H x V) : 344.16 x 193.59 mm

Display Surface : Non-Glare

Backlight Type : LED

Panel Type : IPS

Viewing Angle (CR≧10, H/V) : 170°/ 170°

Pixel Pitch : 0.179mm

Resolution : 1920x1080

Brightness (Typ.) : 250cd/㎡

Contrast Ratio (Typ.) : 700:1

Display Colors : 260K

Response Time : 5ms(GTG)

Refresh Rate (Max) : 60Hz

Touch : Yes, Projective Capacitive 10-point Touch

Flicker-free : Yes

Features

SPLENDID Technology : Yes

Color Temp. Selection : Yes(4 modes)

QuickFit : Yes (Photo/Alighment Grid)

HDCP : Yes

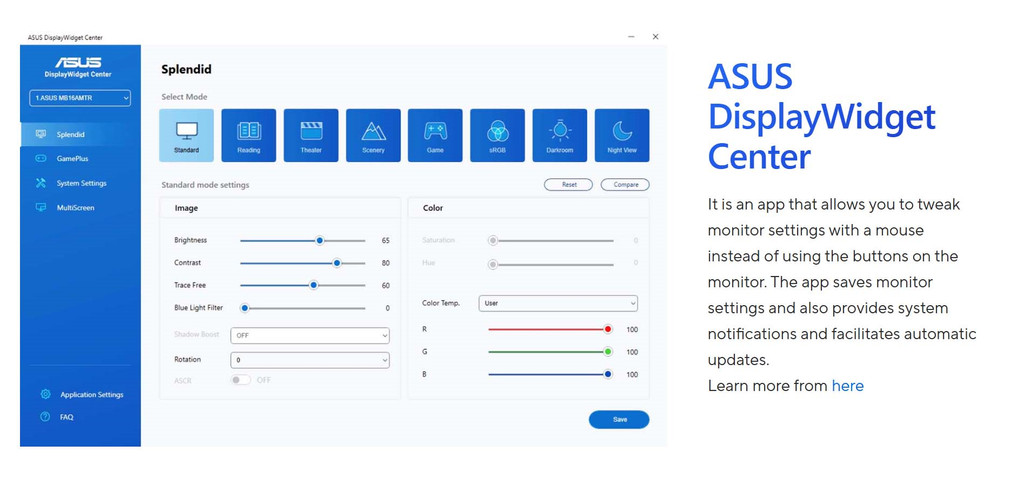

DisplayWidget : Yes, DisplayWidget Center

Low Blue Light : Yes

Audio

Speaker : Yes(1Wx2)

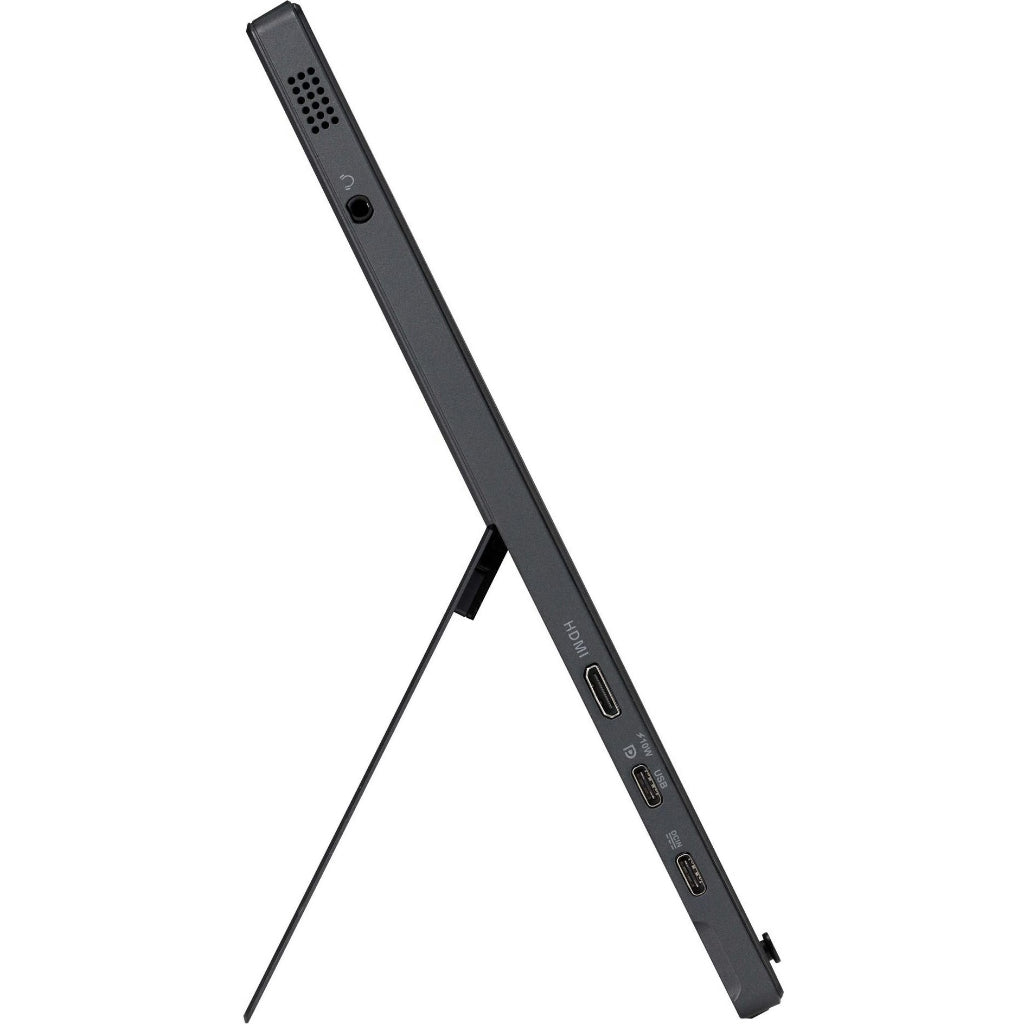

I/O Ports

USB-C x 2 (DP Alt Mode & USB 3.2 x1 + DC In x1)

Mini HDMI x 1

Earphone Jack : Yes

USB-C Power Delivery : 10W

USB 3.2 (Signal) : x 1

Signal Frequency

Digital Signal Frequency : HDMI: 24~83 KHz (H) / 50~61 Hz (V)

USB-C: 83~83 KHz (H) / 50~61 Hz (V)

Battery

Battery : 7800mAh

Power Consumption

Power Consumption : 10W

Power Saving Mode : <0.5W

Power Off Mode : <0.3W

Voltage : 100-240V, 50/60Hz

Mechanical Design

Tilt : Yes (+15° ~ +35°)

Height Adjustment : No

1/4" Tripod Socket : Yes

Dimensions (Esti.)

Phys. Dimension (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

Phys. Dimension without Stand (W x H x D) : 35.99 x 22.68 x 1.19 cm (14.17" x 8.93" x 0.47")

Box Dimension (W x H x D) : 48.8 x 29.8 x 8.8 cm (19.21" x 11.73" x 3.46")

Weight (Esti.)

Net Weight without Stand : 1.15 kg (2.54 lbs)

Gross Weight : 2.29 kg (5.05 lbs)

Accessories (vary by regions)

Mini HDMI to HDMI cable

Power adapter

Quick start guide

USB-C cable

USB-C to A cable

Warranty Card

ZenScreen sleeve

ZenScreen tripod hole cover

Operation Temperature / Humidity

Operation Temperature : 5~35℃

Operation Humidity : 20-90% RH

Certificate

TÜV Flicker-free

TÜV Low Blue Light
