TP-Link Tapo H500 Smart HomeBase - Smart Home Ecosystem Center - 4895252504293

• Expandable Local Storage, No Monthly Fee: Delivers massive, secure, and free local storage with a built-in 16GB eMMC, expandable up to 16TB via an HDD/SDD drive.*

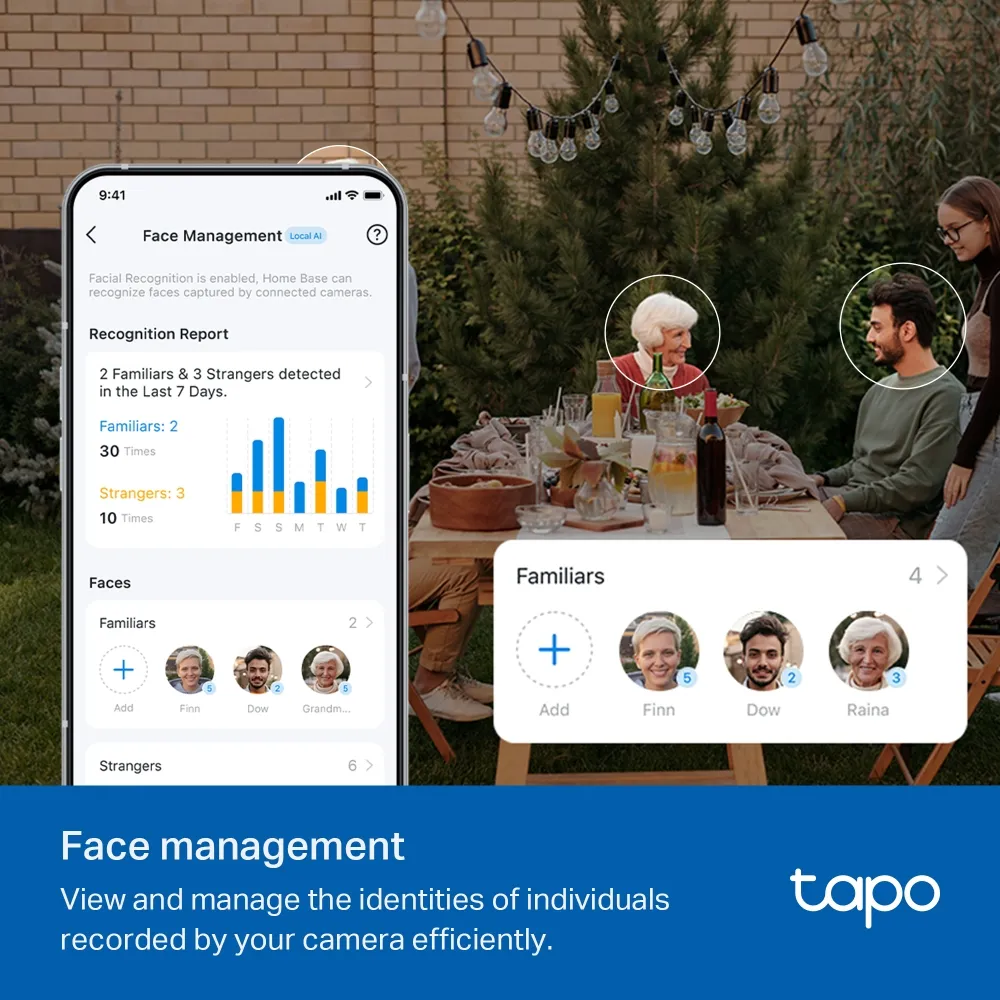

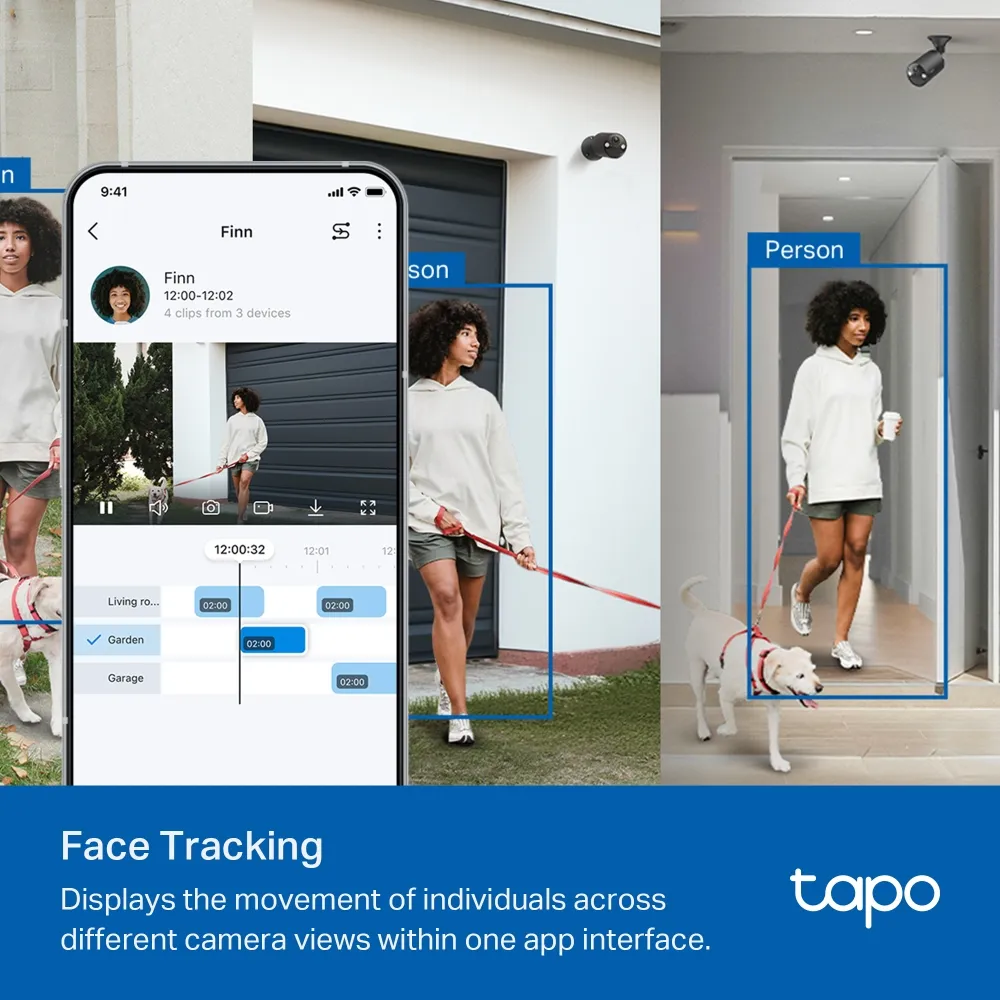

• Enhanced AI Detection: Provides multiple free enhanced AI functions such as facial recognition, person & pet & vehicle detection, and more.

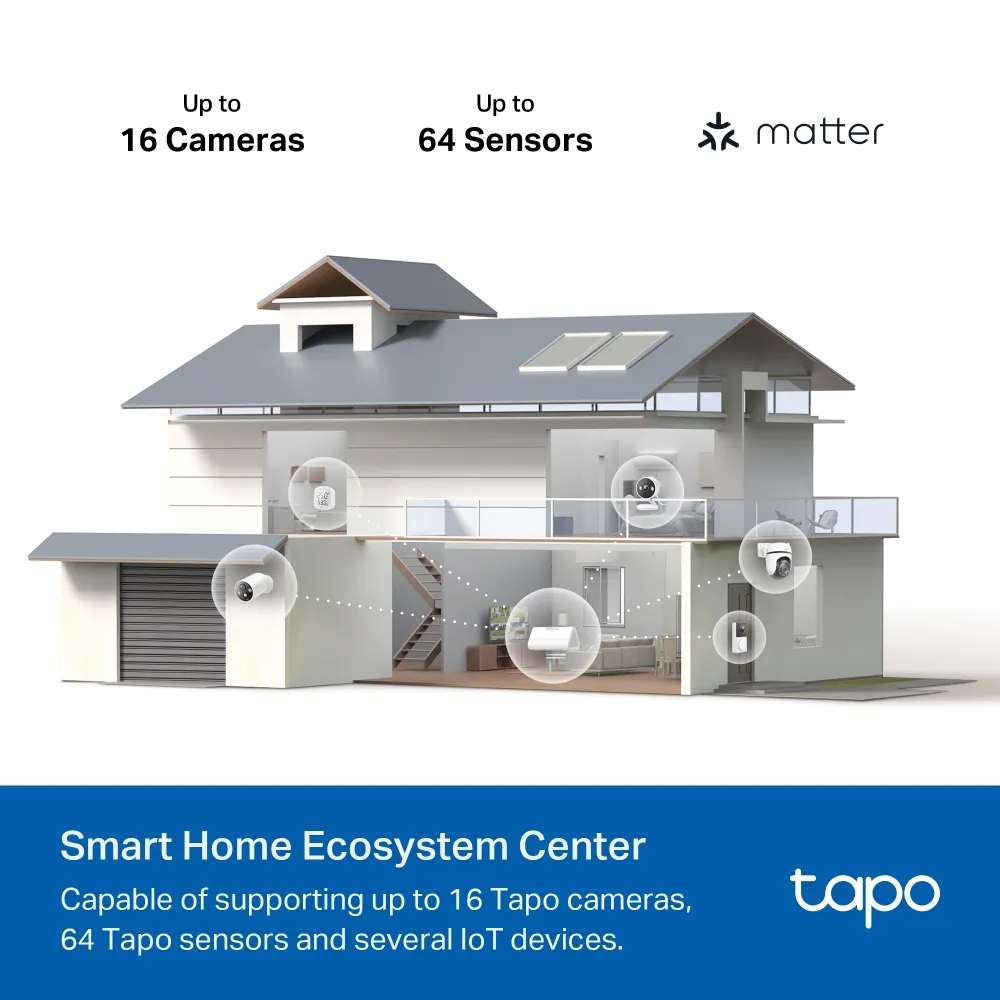

• Smart Home Ecosystem Center: Capable of connecting up to 16 cameras and 64 sensors to build your smart home ecosystem.
• Easy to Use without Wiring: Connect your smart devices to the HomeBase via Wi-Fi, with no complex wiring needed.
• Supporting Matter and ONVIF: Connects seamlessly with various smart devices, reducing the need for multiple hubs in your home.

Specifications

STORAGE

Local Storage:      Built-in Storage: 16GB eMMC

Expanded Storage: 1-Bay, 2.5" SATA HDD/SSD, up to 16TB (needs to purchased seperately)

NETWORK

Frequency:           2.4 GHz + 5 GHz Wi-Fi / Ethernet + Sub-1GHz

863.35MHz, 864.35MHz, 868.35MHz (for EU/UK)

920.9MHz, 921.7MHz, 922.3MHz (for US/AU).

SECURITY

128-bit AES Encryption with SSL/TLS

HARDWARE

Interface:               1x HDMl Port, 1x DC Power Port

Adapter Input:       100-240V, 50/60Hz

Adapter Output:    12V, 2A

Ethernet Ports:     1* 10/100 Mbp

USB Support:       USB Ports: 1x USB-A for data transfer, 1x USB-C for charging

Buttons: 1* Reset Button,

1* Answer/SYNC Button,

1* Decline/Mute Button,

1* Volume Up Button,

1* Volume

Down Button

Dimensions (W x D x H):    6.31 x 3.89 x 3.28 in.

(160.20*98.82*83.21)mm

GENERAL

Operating Humidity:            10%~90%RH, Non-condensing

Storage Humidity: 5%~90%RH, Non-condensing

Package Content

Tapo H500

Power Adapter

Screws

Quick Start Guide

Ethernet Cable

ENVIRONMENT

Operating Temperature:    0℃– 40℃ (32°F–104°F )

Storage Temperature:        -20℃~60℃ (-4°F~140°F)

OTHERS

Certification:         CE, RoHS, RCM

*16TB storage capacity is based on the maximum size of HDD/SSD drive that can be used. HDD/SSD drive must be purchased separately. Actual storage capacity will vary depending on the size and type (HDD or SSD) of the drive selected.Due to system resource allocation, the actual local available storage capacity may be less than 16GB.

**The AI enhancement currently supports a maximum of 4 cameras simultaneously and is planned to be optimized to support up to 6 cameras in the future.

‡Connect up to 64 Tapo lot devices (Tapo sensors, buttons, Sub-1 switches) and 16 Tapo camera/video doorbells. Compatibility list please refer to the link：www.tp-link.com/hk/support/faq/4191/

△Matter support applies to specific device types based on the Tapo H500’s compatibility. Please refer to the official product documentation for details.

†The tablet needs to be purchased separately.

***H500 surpports HDMI output that supports up to four combined video streams without individual channel control.
