WIRELESS

-Standards-

Wi-Fi 6

• IEEE 802.11ax/ac/n/a 5 GHz
• IEEE 802.11ax/n/b/g 2.4 GHz



-WiFi Speeds-

AX3000

• 5 GHz: 2402 Mbps (802.11ax, HE160)

• 2.4 GHz: 574 Mbps (802.11ax)



-WiFi Range-

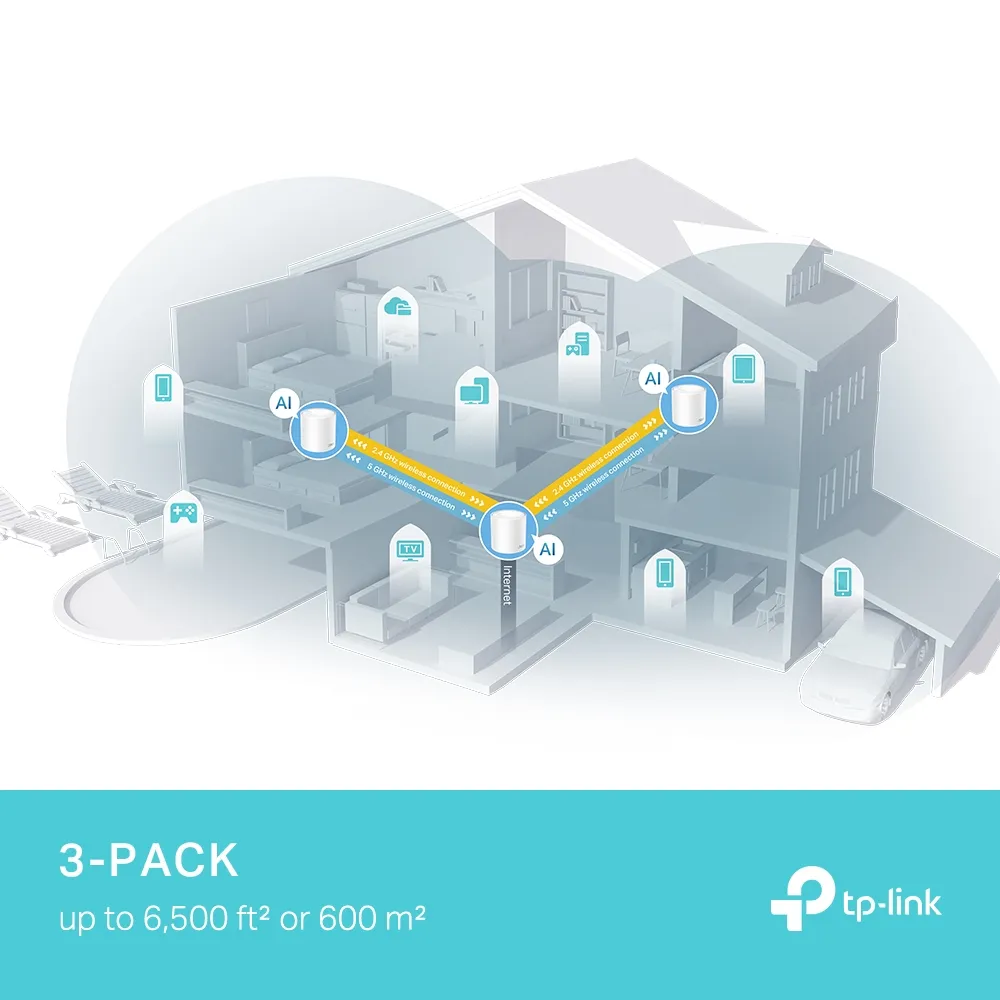

4-6+ Bedroom Houses (3-pack)

-TP-Link Mesh Technology-

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage

-AI-Driven Mesh-

Intelligently learns the network environment to provide ideal Wi-Fi unique to your home

-3× Antennas (Internal)-

Multiple antennas form a signal-boosting array to cover more directions and large areas



-WiFi Capacity -

-High-

• Dual-Band

• Distribute devices to different bands for optimal performance



2×2 MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



OFDMA

Simultaneously communicates with multiple WiFi 6 clients



4 Streams

More than enough bandwidth for connected devices



Working Modes

• Router Mode

• Access Point Mode

SECURITY

-Network Security-

• SPI Firewall

• Access Control



-HomeShield Security-

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner



-Guest Network-

• 1× 5 GHz Guest Network

• 1× 2.4 GHz Guest Network



-WiFi Encryption-

• WPA-Personal

• WPA2-Personal

• WPA3-Personal

HARDWARE

-Button-

Reset Button



-Ethernet Ports-

2× 2.5 Gbps Ports



*Per Deco Unit

Supports WAN/LAN auto-sensing

SOFTWARE

-Protocols-

• IPv4

• IPv6



-Service Kits-

HomeShield



-Parental Controls-

• HomeShield Parental Controls

• Custom Profiles

• Professional Content Filter Library

• Family Time

• Bedtime

• Off Time

• Time Rewards

• Family Online Time Ranking

• Pause the Internet

• Weekly and Monthly Reports



-WAN Types-

• Dynamic IP

• Static IP

• PPPoE
• PPTP

• L2TP



-Quality of Service-

• HomeShield QoS

• QoS by Device



-Cloud Service-

• OTA Firmware Upgrade

• TP-Link ID

• DDNS



-NAT Forwarding-

• Port Forwarding

• UPnP



-IPTV-

• IGMP Proxy

• IGMP Snooping

• Bridge

• Tag VLAN



-DHCP-

• Address Reservation

• DHCP Client List

• Server



-DDNS-

TP-Link



-Management-

Deco App



TEST DATA

-WiFi Transmission Power -

CE:

• <20 dBm (2.4 GHz)
• <23 dBm (5 GHz)

FCC:

• <30 dBm (2.4 GHz)
• <30 dBm (5 GHz)





PHYSICAL

-Dimensions (W×D×H)-

4.33 × 4.33 × 4.49 in

(110 × 110 × 114 mm)



-Package Contents-

Deco X50 Pro(2-pack)

• 2 Deco X50 Pro units
• 1 RJ45 Ethernet cable

• 2 Power adapters

• Quick Installation Guide



Deco X50 Pro(3-pack)

• 3 Deco X50 Pro units

• 1 RJ45 Ethernet cable

• 3 Power adapters

• Quick Installation Guide



OTHERS

-Certifications-

CE, FCC, RoHS, RCM



-Environment-

• Operating Temperature: 0°C~40°C (32°F~104°F)

• Storage Temperature: -40°C~70°C (-40°F~158°F)

• Operating Humidity: 10%~90% non-condensing

• Storage Humidity: 5%~90% non-condensing
