Standards Wi-Fi 6

IEEE 802.11ax/ac/n/a 5 GHz

IEEE 802.11ax/n/b/g 2.4 GHz

WiFi Speeds AX1800

5 GHz: 1201 Mbps (802.11ax)

2.4 GHz: 574 Mbps (802.11ax)

WiFi Range 1-3 Bedroom Houses (1-pack)

TP-Link Mesh Technology

Optional Ethernet backhaul work together to link Deco units to provide seamless coverage



2 LTE antennas, 2 Wi-Fi antennas (Internal)

Multiple antennas form a signal-boosting array to cover more directions and large areas



Beamforming

Concentrates wireless signal strength towards clients to expand WiFi range

WiFi Capacity High

Dual-Band

Distribute devices to different bands for optimal performance



MU-MIMO

Simultaneously communicates with multiple MU-MIMO clients



OFDMA

Simultaneously communicates with multiple WiFi 6 clients



4 Streams

More than enough bandwidth for connected devices

Working Modes 3G/4G, Router, Access Point

HARDWARE

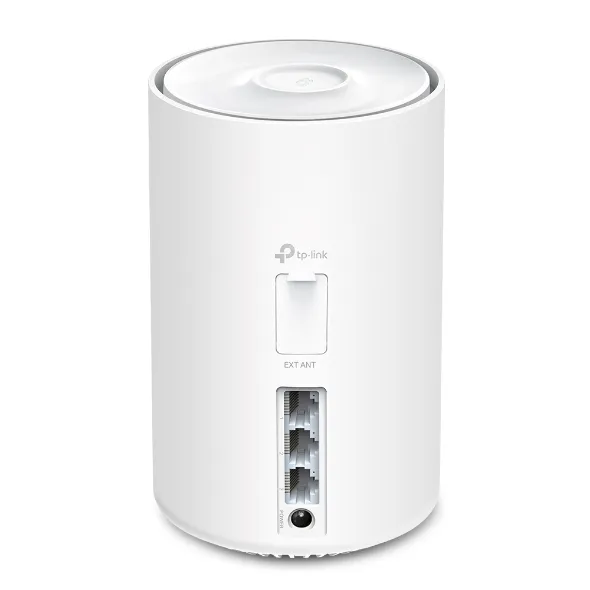

Ethernet Ports 3× Gigabit Ports



Supports WAN/LAN auto-sensing

USB Support 12 V ⎓ 1.5 A

Buttons RESET Button

Ports and Connections 2 × 3G/4G External Antenna Ports



Compatibility

4G:

FDD-LTE:B1/B3/B5/B7/B8/B20/B28(2100/1800/850/2600/900/80

0/700 MHz)

TDD-LTE: B38/B40/B41(2600/2300/2500 MHz)



3G:

DC-HSPA+/HSPA/UMTS B1/B5/B8 (2100/850/900 MHz)

SECURITY

WiFi Encryption WPA-Personal

WPA2-Personal

WPA3-Personal

Network Security SPI Firewall

Access Control



HomeShield Security

Real-Time IoT Protection

Malicious Site Blocker

Intrusion Prevention System

DDoS Attack Prevention

Home Network Scanner

Guest Network 1× 5 GHz Guest Network

1× 2.4 GHz Guest Network

SOFTWARE

Protocols IPv4

IPv6

Service Kit HomeShield

Learn More>

WAN Types Dynamic IP

Static IP

PPPoE

L2TP

PPTP

Quality of Service HomeShield QoS

QoS by Device

Cloud Service OTA Firmware Upgrade

TP-Link ID

DDNS

NAT Forwarding Port Forwarding

UPnP

IPTV IGMP Proxy

IGMP Snooping

Bridge

Tag VLAN

DHCP Address Reservation

DHCP Client List

Server

DDNS TP-Link

Management Deco App

TEST DATA

WiFi Transmission Power CE:

≤20 dBm (2.4GHz)

≤23 dBm (5GHz)

PHYSICAL

Dimensions (W×D×H) 4.13 × 4.13 × 6.57 in

(105 × 105 × 167mm)

OTHERS

Certification CE, RoHS

Package Contents 1-pack

1 Deco X20-4G unit

1 RJ45 Ethernet Cable

1 Power Adapter

1 Quick Installation Guide

2 SMB to SMA Adapters



2-pack

1 Deco X20-4G unit + 1 Deco X20 unit

1 RJ45 Ethernet Cable

2 Power Adapters

1 Quick Installation Guide

2 SMB to SMA Adapters



3-pack

1 Deco X20-4G units + 2 Deco X20 units

1 RJ45 Ethernet Cable

3 Power Adapters

1 Quick Installation Guide

2 SMB to SMA Adapters

Box Dimensions (W X D X H) 4.13 × 4.13 × 6.57 in

(105 × 105 × 167mm)

Environment Operating Temperature: 0°C~40°C (32°F~104°F)

Storage Temperature: -40°C~60°C (-40°F~140°F)

Operating Humidity: 10%~90%RH

Storage Humidity: 5%~90%RH
