FEATURES

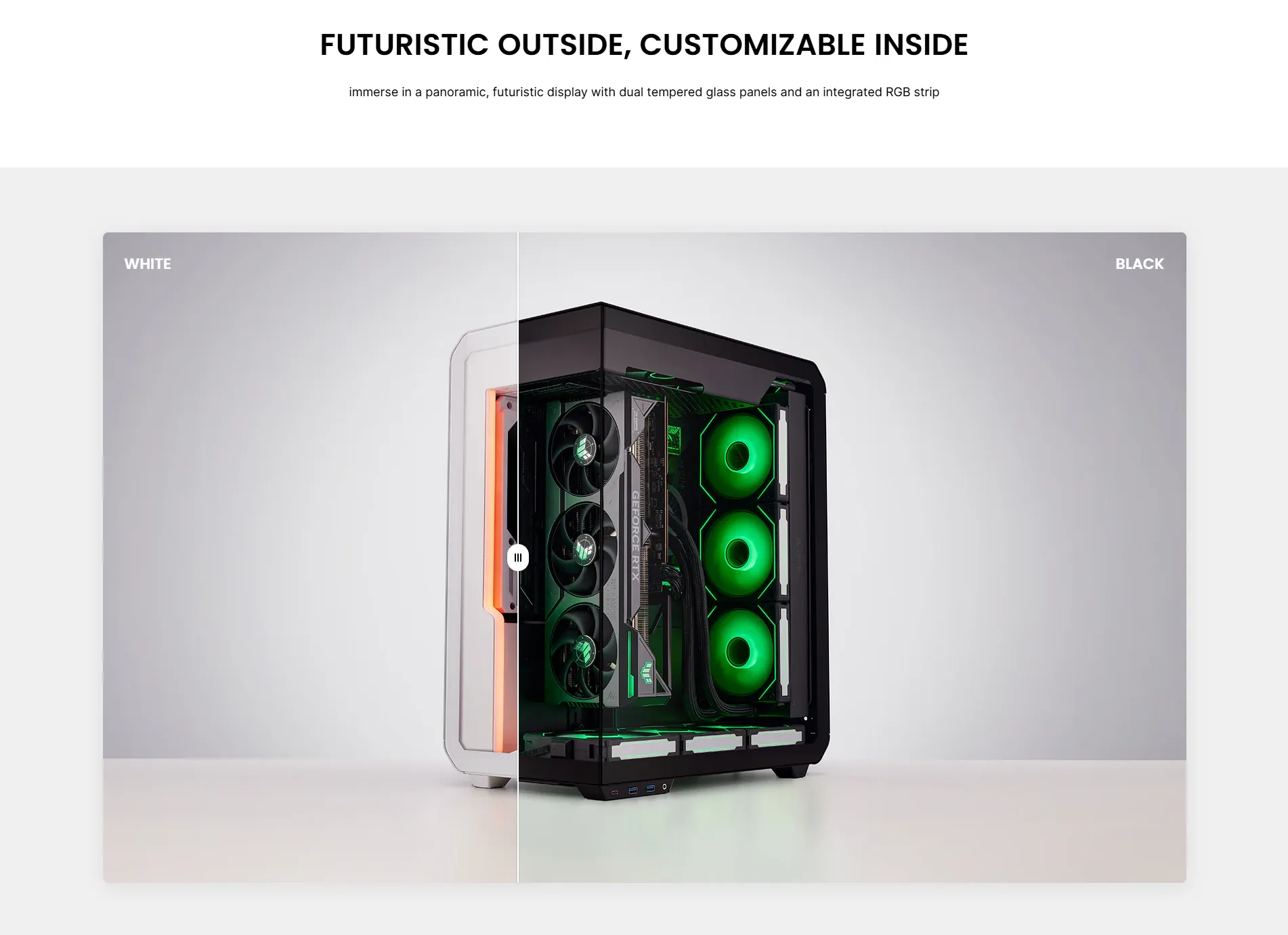

• Futuristic Design: Dual tempered glass with a left-side panoramic view

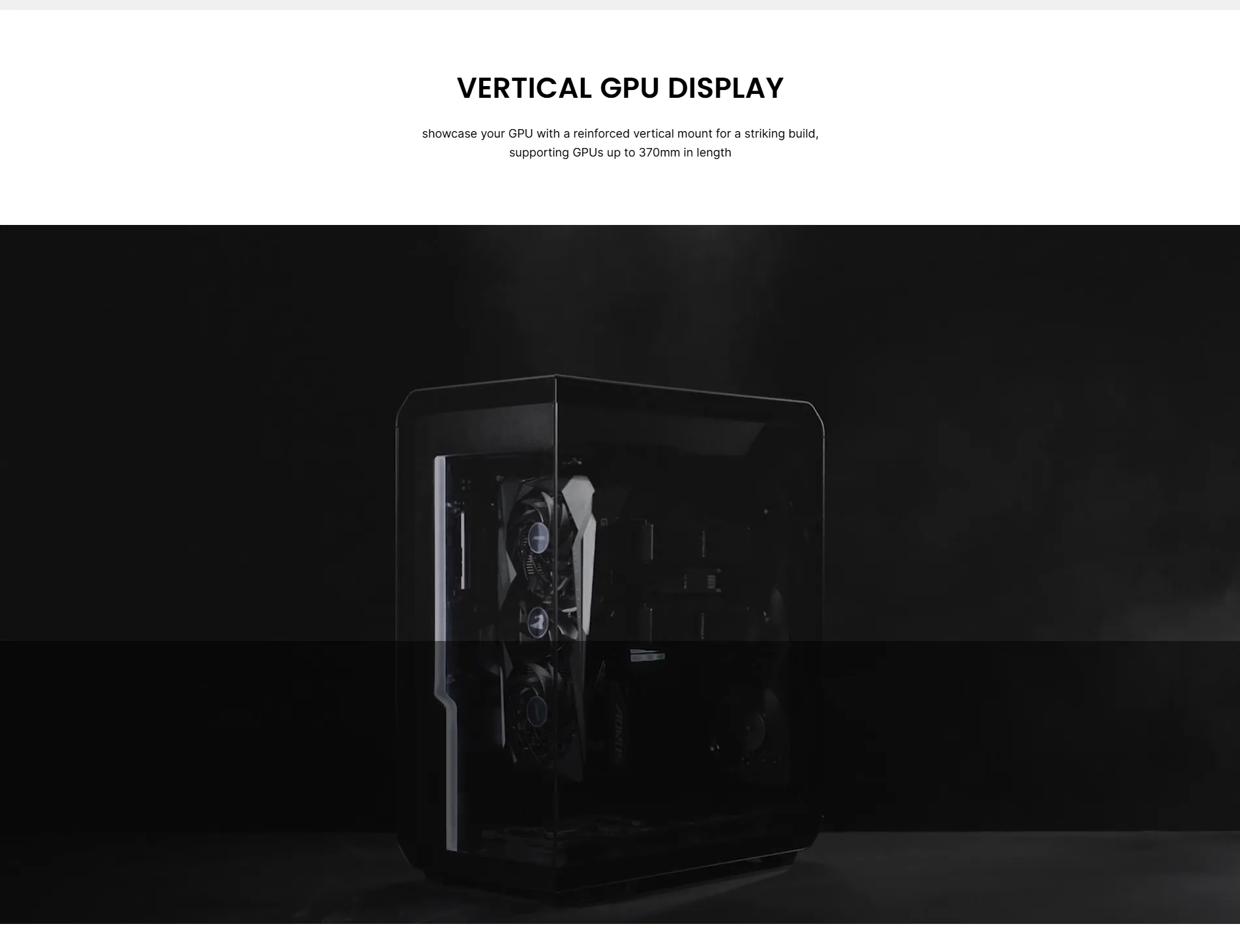

• Vertical GPU Display: Upright mount for a striking GPU showcase

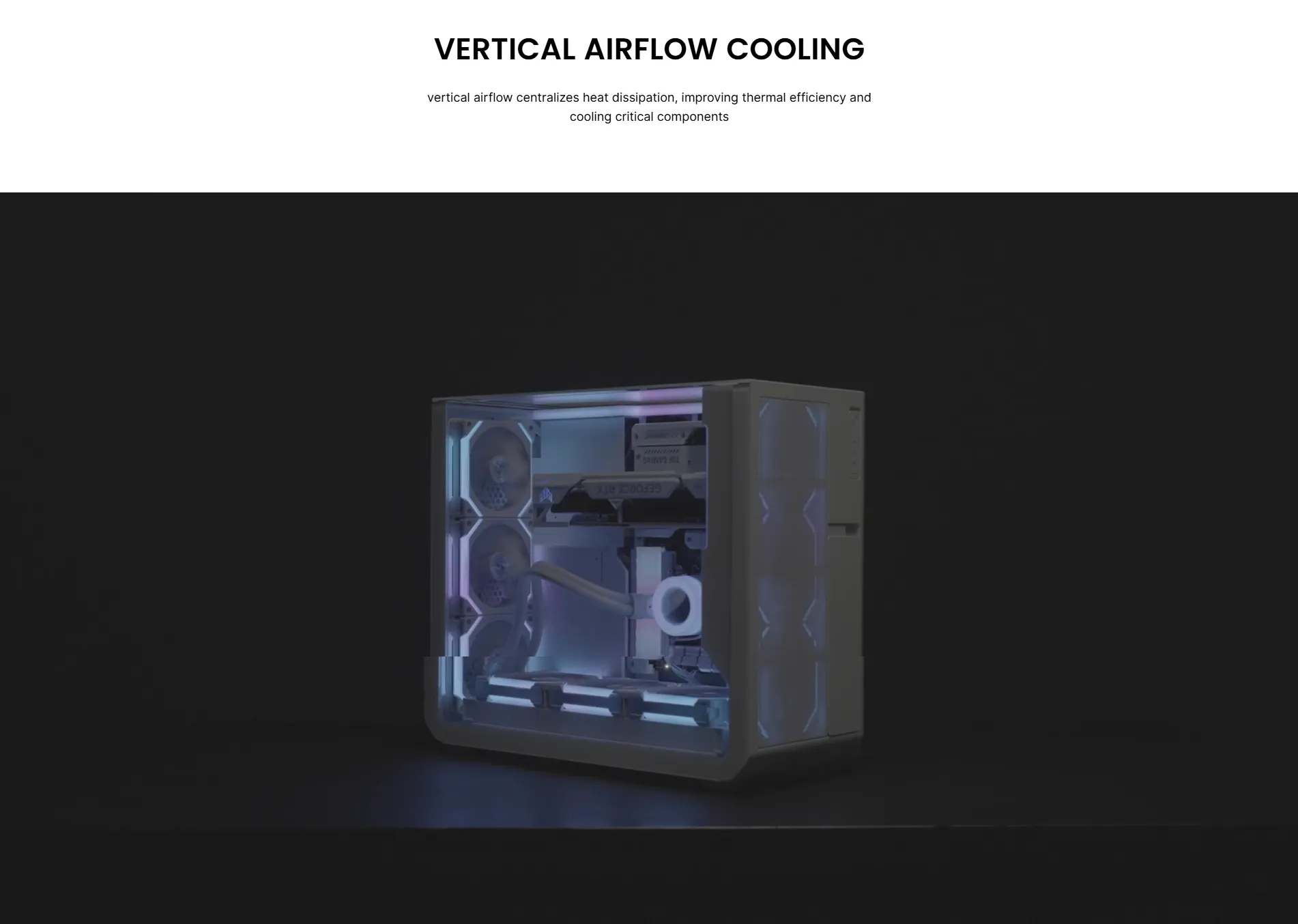

• Optimized Vertical Airflow: Directs airflow efficiently for enhanced cooling

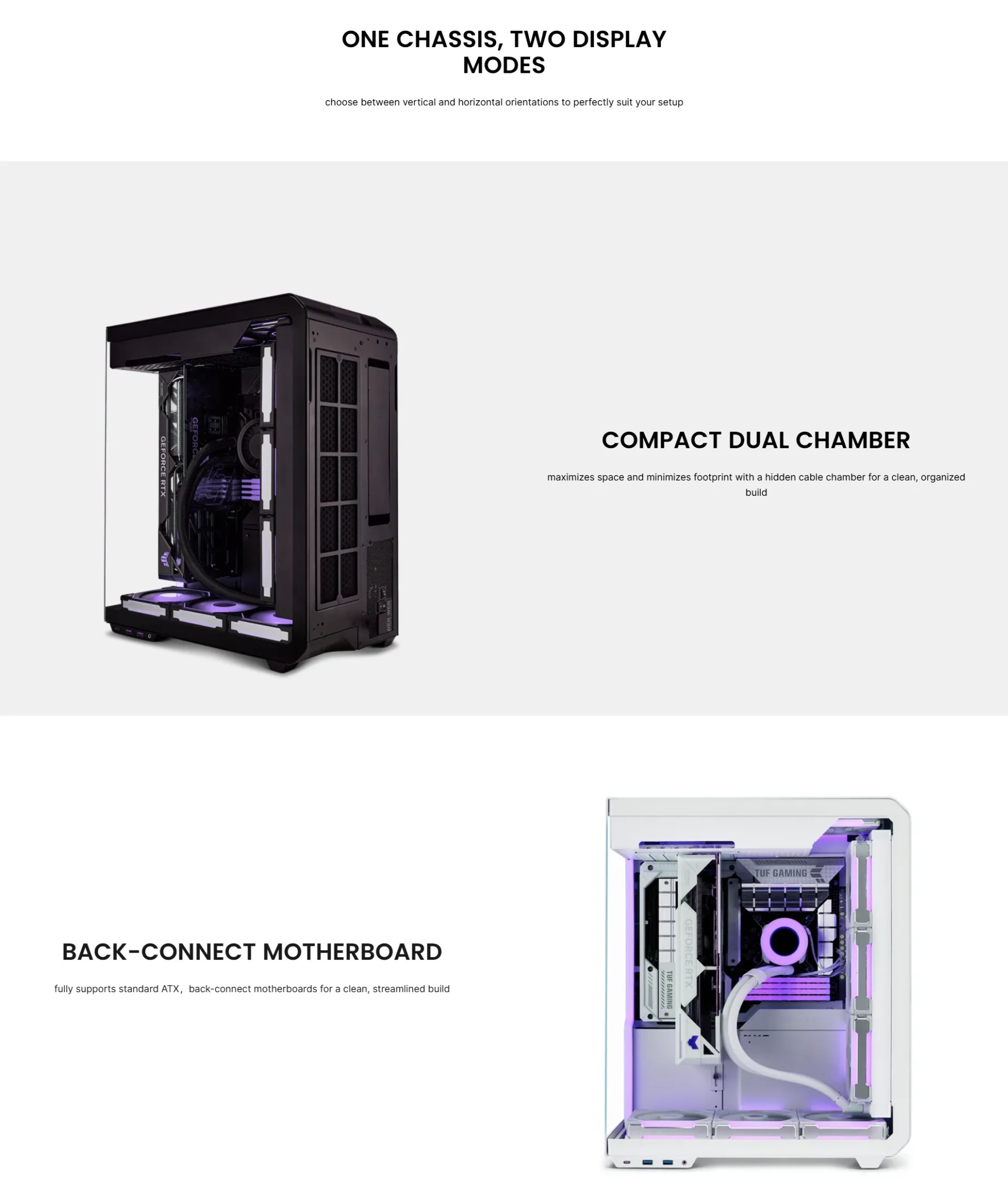

• Dual-Chamber Layout: Hides cables neatly for a clean, organized build
• All-in-One Setup: Includes 3 pre-installed 120mm ARGB fans, a built-in RGB strip and ARGB controller
• Flexible Orientation: Vertical or horizontal setup to match your style
• Broad Compatibility: Supports ATX and hidden-connector motherboards, GPUs up to 370mm, PSUs up to 190mm, and CPU coolers up to 170mm

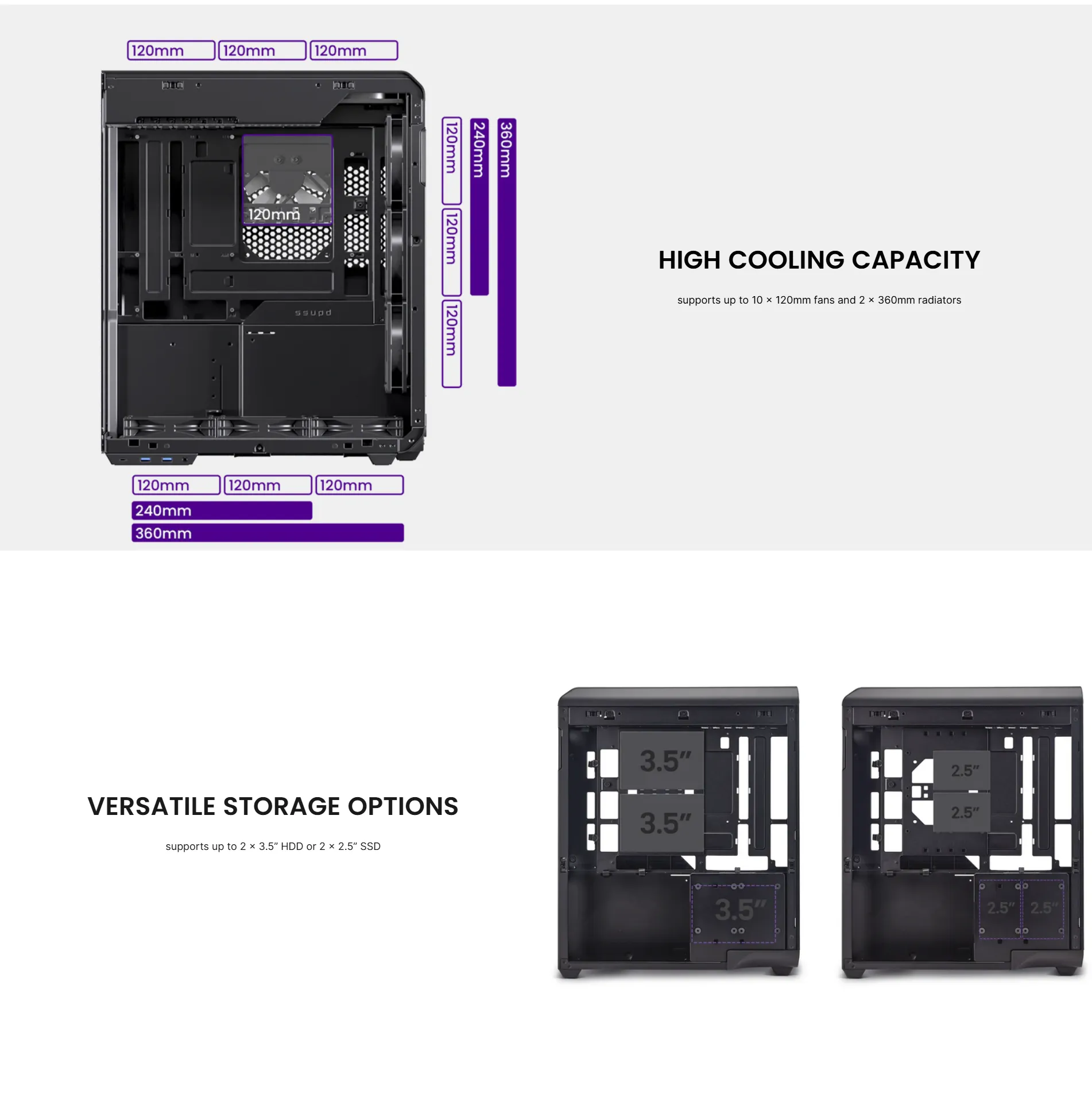

• Advanced Cooling: Holds up to 10 x 120mm fans and dual 360mm radiators
• Versatile Storage: Supports up to 2 x 3.5" HDD or 2 x 2.5" SSD



SPECIFICATIONS

Expansion slot:

• 7



2.5" drive mounts:

• 2



3.5" drive mounts:

• 2



Tool-less push-to-lock:

• Left/Right side, top and front panels



Front I/O ports:

• 2 x USB 3.0 Type-A, 1 x USB 3.2 Gen 2 Type-C, 1 x 3.5mm audio & mic combo



Top I/O ports:

• 1 x power button, 4 x LED control bottom



Fan support:

• Bottom: 3 x 120mm, Rear: 3 x 120mm, Side: 1 x 120mm, Top: 3 x 120mm with 2nd Slot GPU



Dust filters:

• Bottom, Rear, Side



Panels:

• 2 x tempered glass, 1 x steel, 1 x plastic



COMPATIBILITY

Motherboard compatibility:

• ATX / Micro-ATX / Mini-ITX



Power supply type:

• ATX / SFX (ATX adapter bracket required)



Power supply max length:

• 190mm

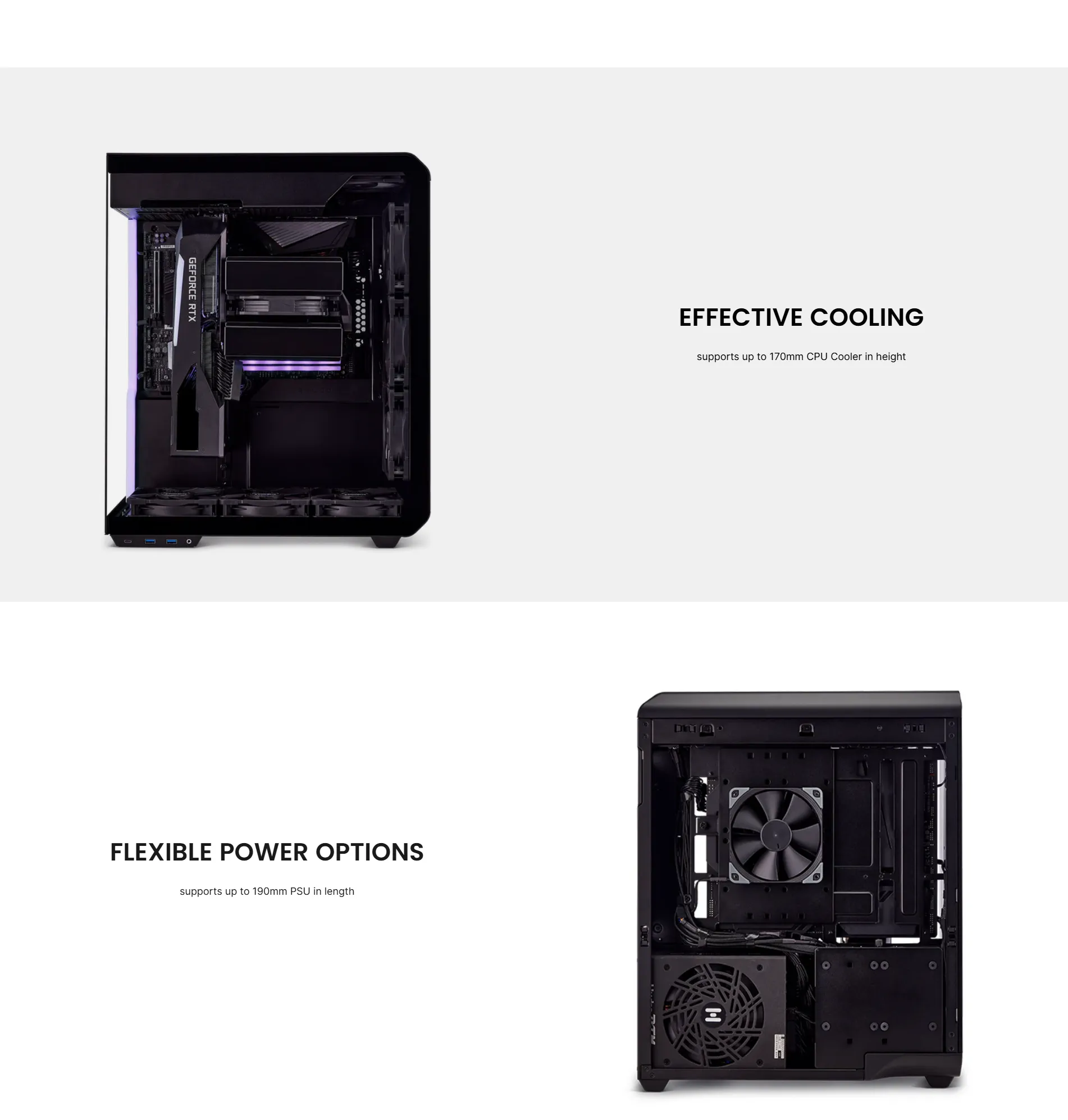

CPU cooler max height:

• 170mm



GPU max length:

• 370mm length and 160mm width



Radiator support:

• Bottom: 1 x 120/240/360mm, Rear: 1 x 120/240/360mm



GENERAL

Case dimensions:

• 417 x 237 x 508 mm / 16.4 x 9.3 x 20 inch



Case dimensions (w/o feet):

• 417 x 237 x 493 mm / 16.4 x 9.3 x 19.4 inch



Package dimensions:

• 565 x 309 x 495 mm / 22.24 x 12.17 x 19.17 inch



Net weight:

• 10.67 Kg / 23.5 lb



Gross weight:

• 12.85 Kg / 28.3 lb



Volume:

• 50 liters



Package contents:

• Case, accessory box, user manual



Warranty:

• 2 years



User Guide:

• Xhuttle User Guide
