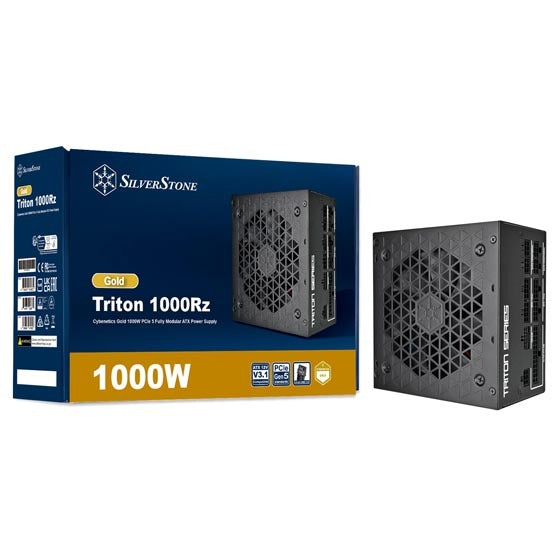

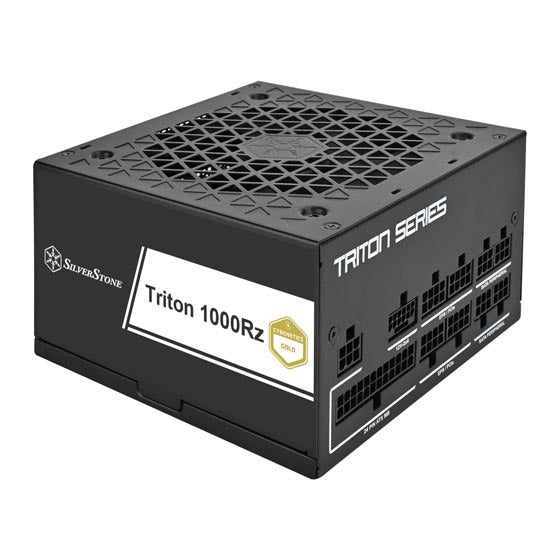

Silverstone Triton 1000Rz 1000W Gold ATX3.1 / Gen5 Power Supply (Cybenetics Gold / SST-TR1000R-GM) 5 Years - 4710679818672

Product Specifications

Product No.

SST-TR1000R-GM

SST-TR1000R-GM-WWW

Model (safety certification)

SST-AX1000MCGD-C

Color

Black (lead-free paint)

White (lead-free paint)

Max. DC Output

1000W

Power density

553.7W/L

Load Range

Output+3.3V+5V+12V1+5VSB-12VMax.(Amps)20A20A83.3A3.0A0.3APeak (Amps)////3AMin.(Amps)0A0A0A0A0ARange (%)±3%±3%±3%±3%±10%Line Reg.(%)±1%±1%±1%±1%±1%Ripple(mVp-p)30mV30mV40mV30mV50mV

Combined +3.3V & +5V

110W

Combined +12V

1000W

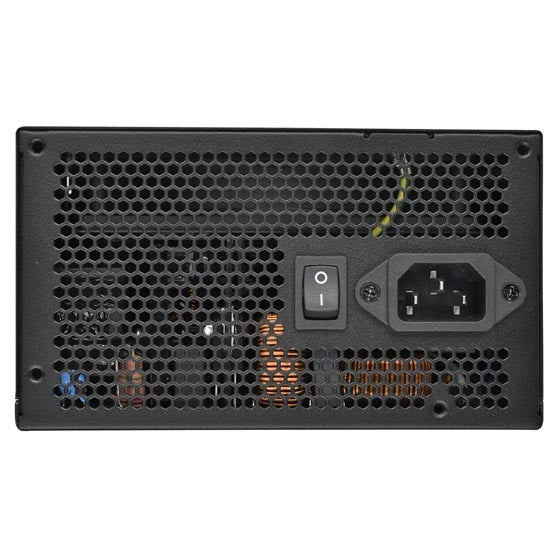

Input Voltage

90 ~ 264 Vrms

Input Frequency Range

47Hz ~ 63Hz

PFC

Active PFC（PF>0.9 at full load）

Efficiency

≥87% to <89% overall efficiency

MTBF

100,000 hours

Operating temperature

0°C ~ 40°C

Protection

Over power protection

Over current protection

Over voltage protection

Short circuit protection

Over Temperature protection

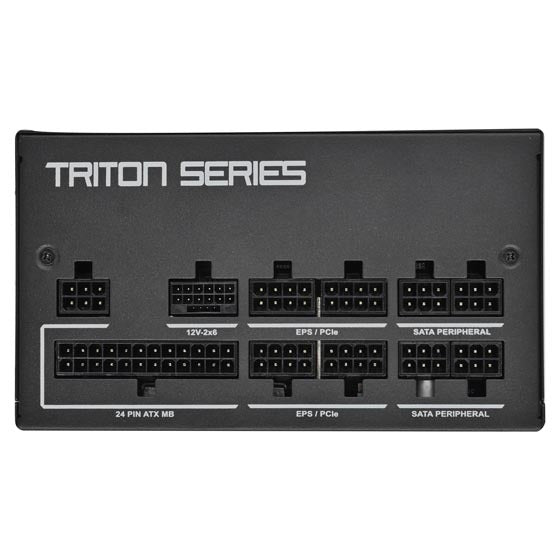

Connectors

1 x 24 / 20-Pin motherboard connector

2 x 8 / 4-Pin EPS / ATX 12V connector

1 x 12+4-Pin 12V-2x6 connector

4 x 8 / 6-Pin PCIe connector

8 x SATA connector

4 x 4-Pin Peripheral connector

Cooling System

Single 120mm FDB fan

Noise Level

18 dBA min.

Certification

Cybenetics Gold

Form factor

ATX (PS2)

Dimension

150mm (W) x 86mm (H) x 140mm (D)

5.91" (W) x 3.39" (H) x 5.51" (D)

Weight

2.7 kg
