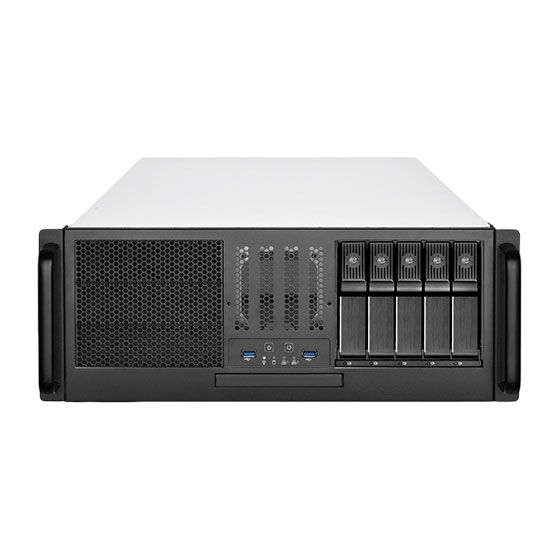

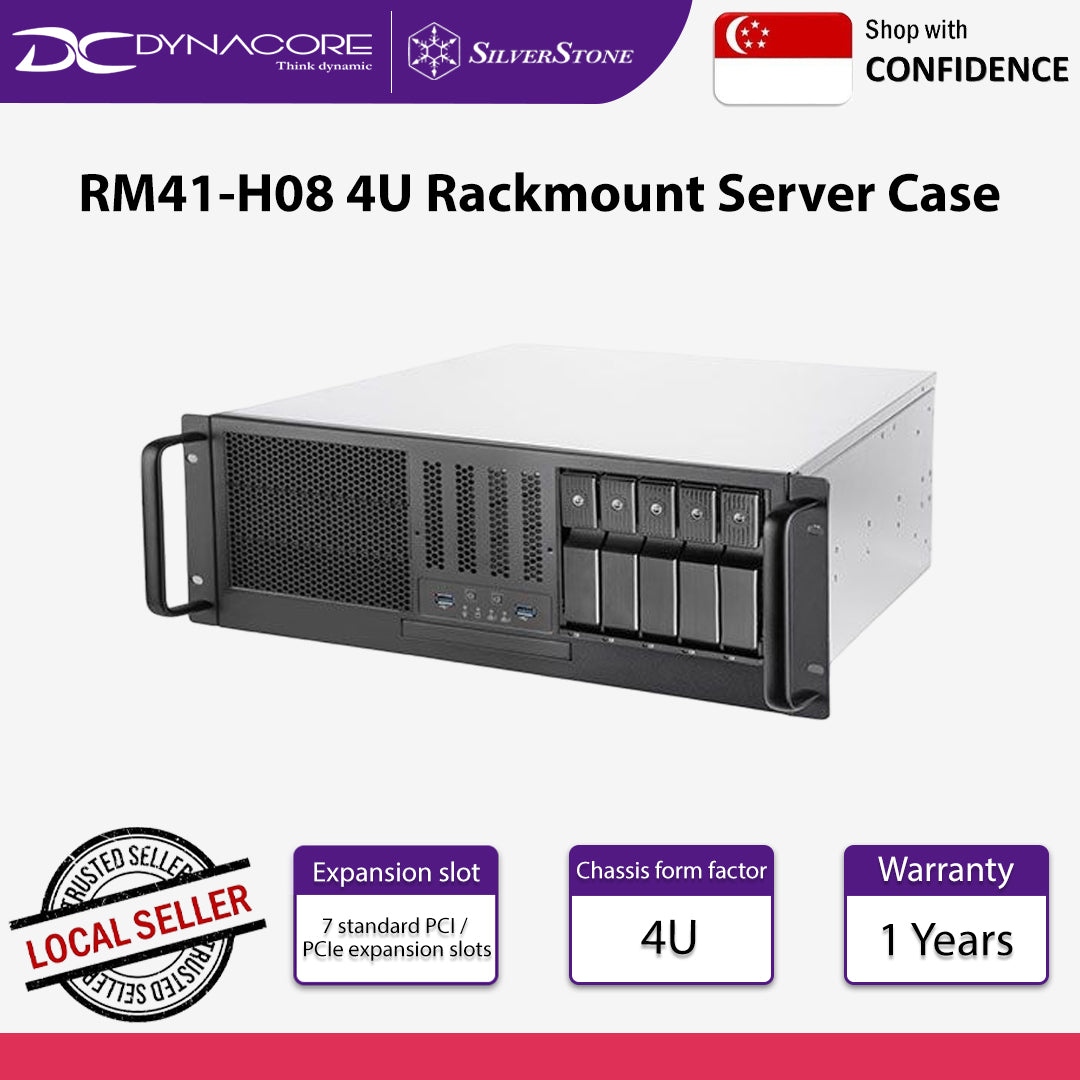

RM41-H08
4U form factor 5 x 3.5” Hot-swappable and 3 x 5.25" server chassis
Supports up to five 12 Gbit/s 3.5" SAS / SATA drives with tray-free & screw-less design
Drive tray features anti-theft lock design to keep confidential information secured
Supports hot-swap function
Supports up to SSI-CEB motherboard
Supports 7 standard size PCI / PCIe expansion slots
Three 5.25" drive bays for a more flexible installation of 5.25" devices
Front I/O with 5Gbps USB 3.1 Gen1 ports, backward compatible with USB 2.0 / 1.1
Pre-drilled mounting holes for easy sliding rails installation.
Distinctive exterior
Distinctive front panel features a handle design allowing for easy accessibility to the internal components, along with two USB 3.0 data transfer ports
Storage device performance
Supports SAS 12G/ SATA 6Gb/s high-speed transfer with a hot-swappable and tray-free design
Storage bays
Offers users a wide range of hard drive options including support for 5.25"/3.5"/2.5" hard drives and slim optical drives
(Optional 5.25” storage device: FS204, FP510)
Cooling capabilities
Utilizing the typical front-to-back directional airflow, RM41-H08 comes pre-installed with two 80mm PWM fans for exhaust, designed to achieve a rapid heat dissipation effect that does not easily accumulate hot air inside
Sliding rail compatibility
Reserved mounting holes for sliding rails which can be easily installed. Can be used with the RMS06-22 rail
