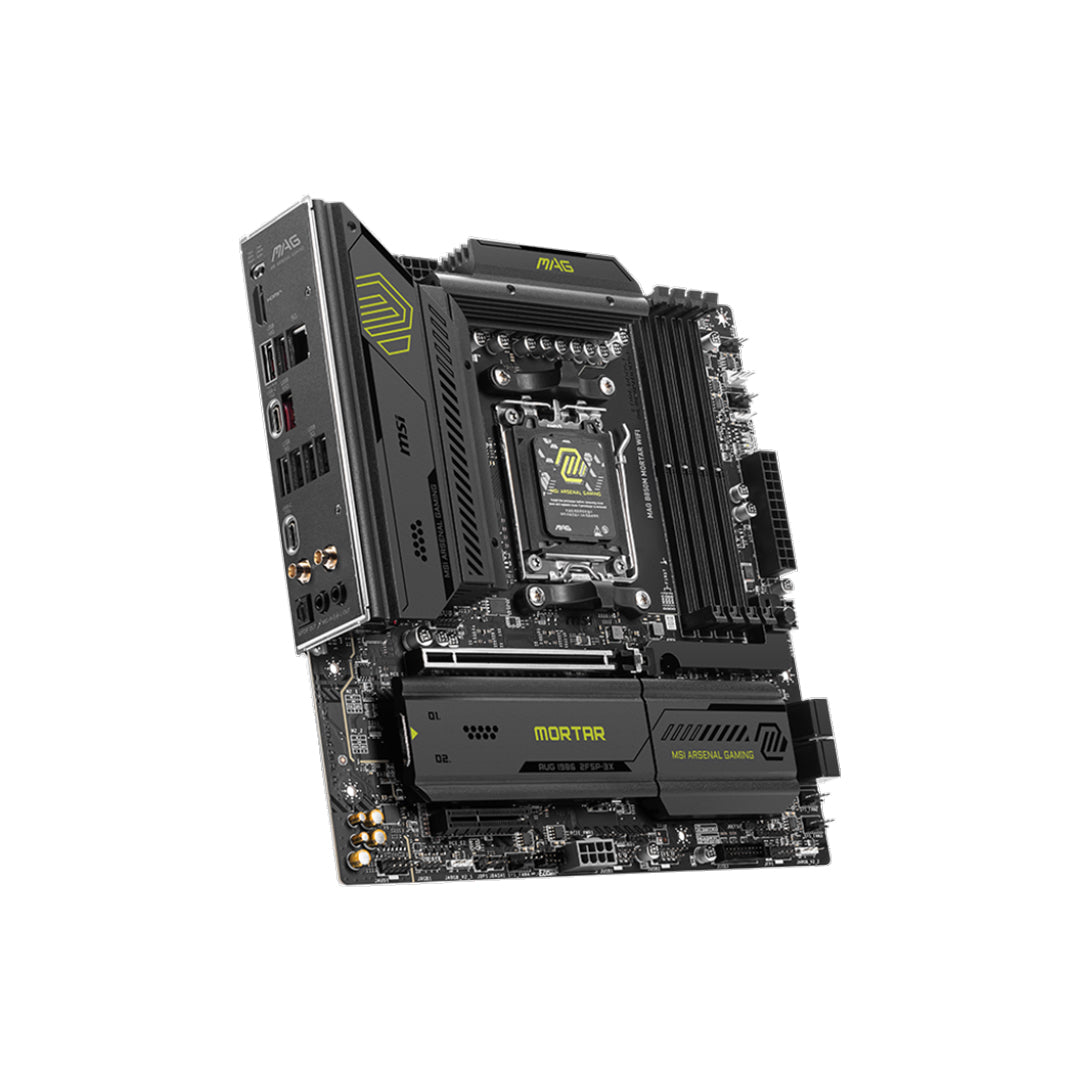

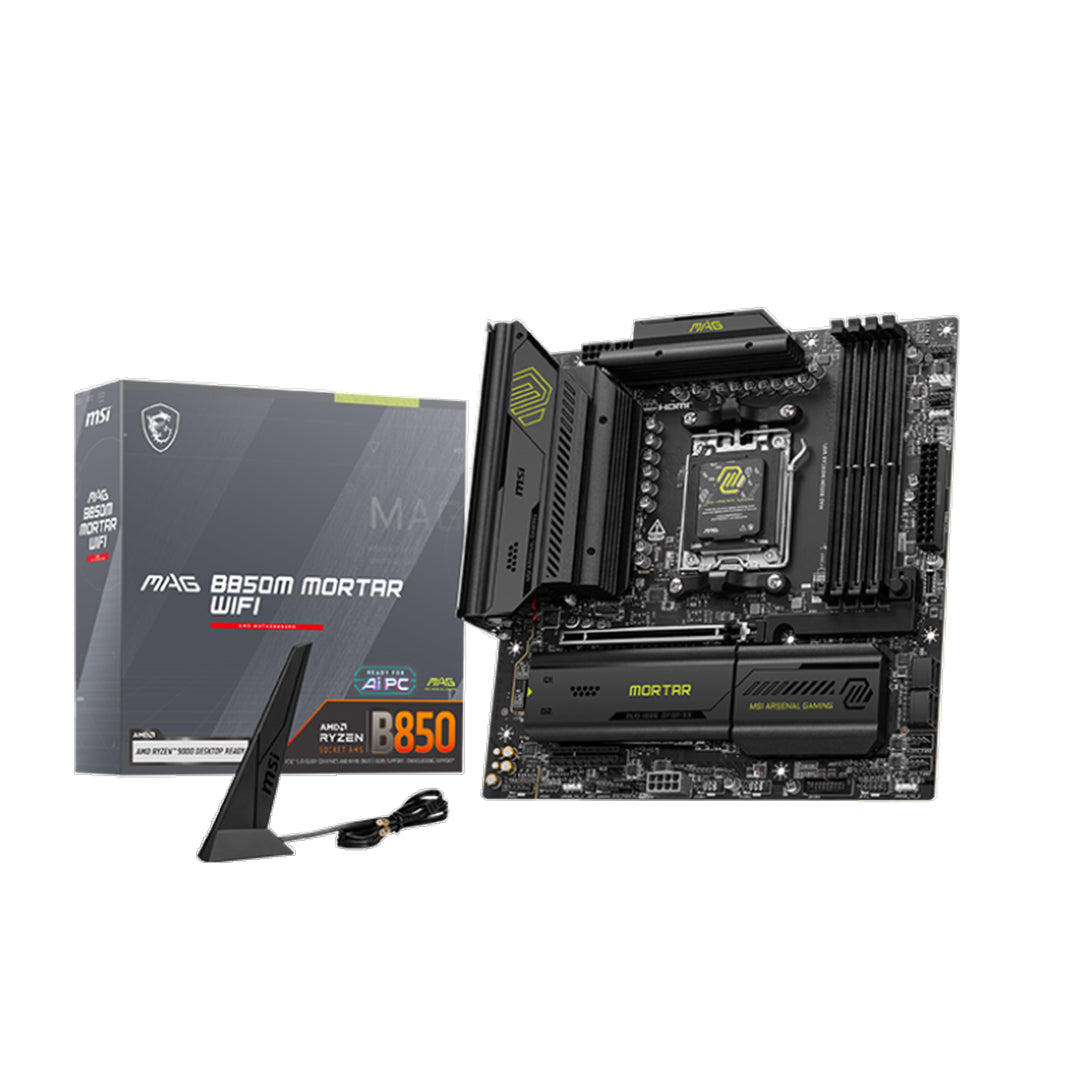

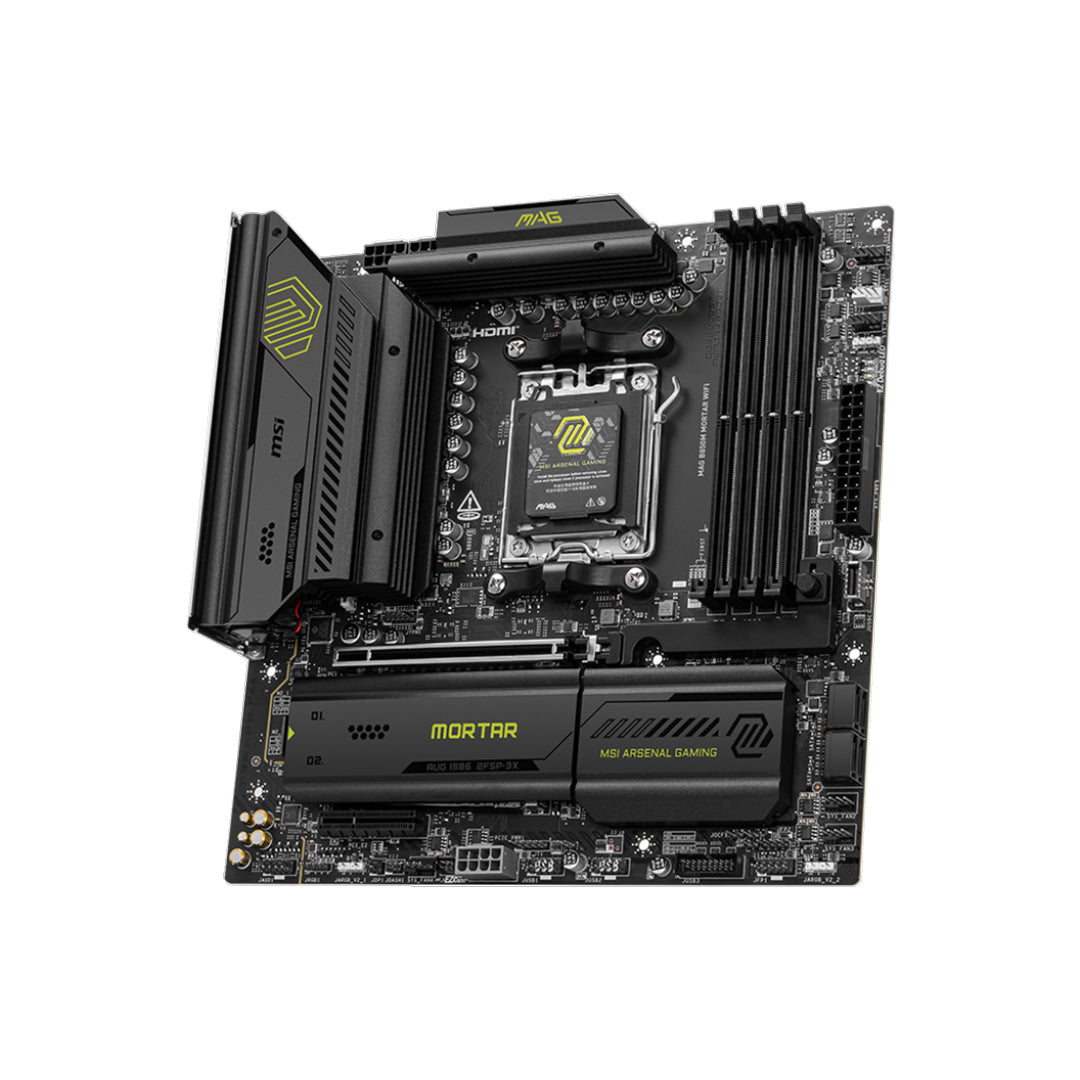

ULTRA POWER - SUPPORTS THE LATEST RYZEN 9000 PROCESSORS IN HIGH PERFORMANCE - The MAG B850M MORTAR WIFI employs a 12 Duet Rail Power System (60A, SPS) VRM for the AMD B850 chipset (AM5, Ryzen 9000 / 8000 / 7000) with Core Boost architecture
-
FROZR GUARD - Premium cooling features such as 7W/mK MOSFET thermal pads, extra choke thermal pads and an Extended Heatsink; Includes chipset heatsink, EZ M.2 Shield Frozr II, and a Combo-fan (for pump & system) header (3A)
-

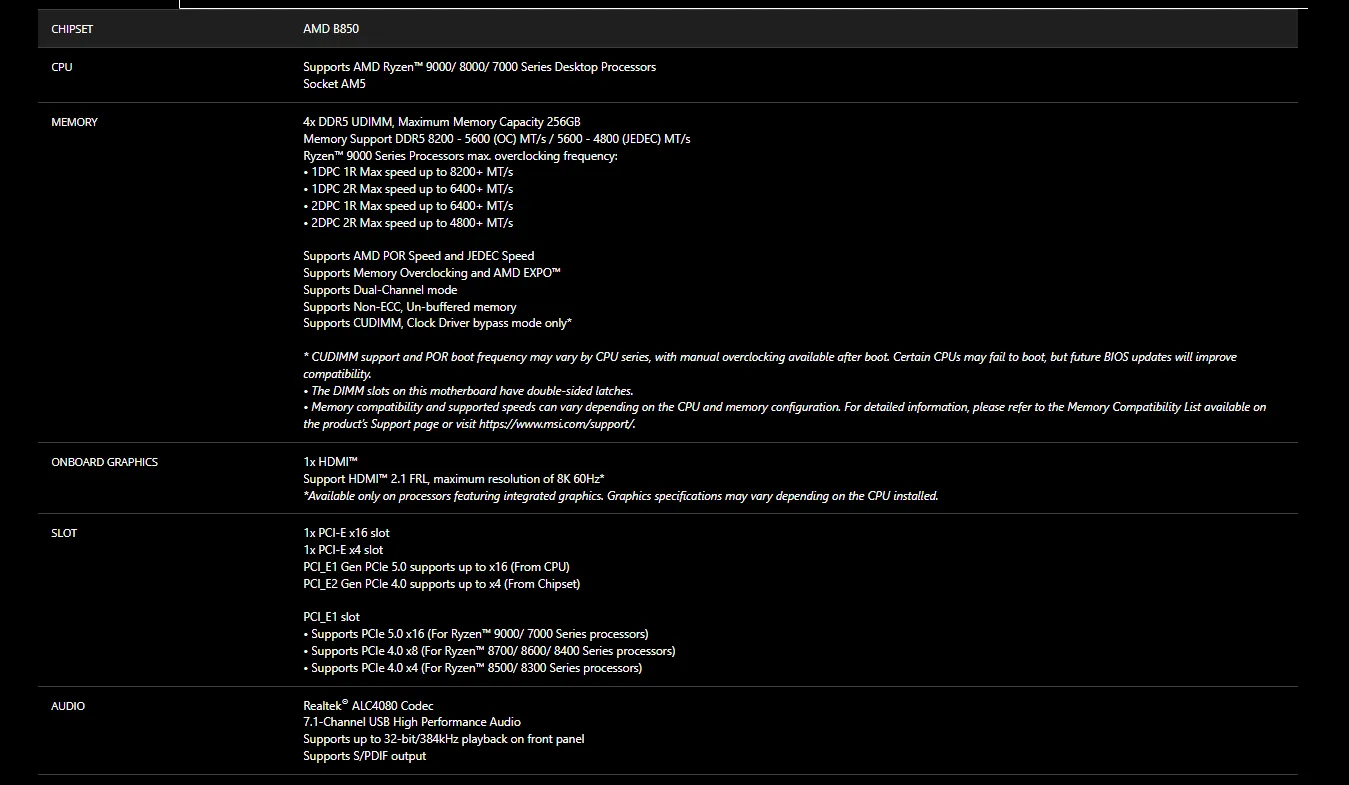

DDR5 MEMORY, PCIe 5.0 x16 SLOT - 4 x DDR5 DIMM SMT slots enable extreme memory overclocking speeds (1DPC 1R, 8200+ MT/s); 1 x PCIe 5.0 x16 SMT slot (128GB/s) with Steel Armor II supports cutting-edge graphics cards
-

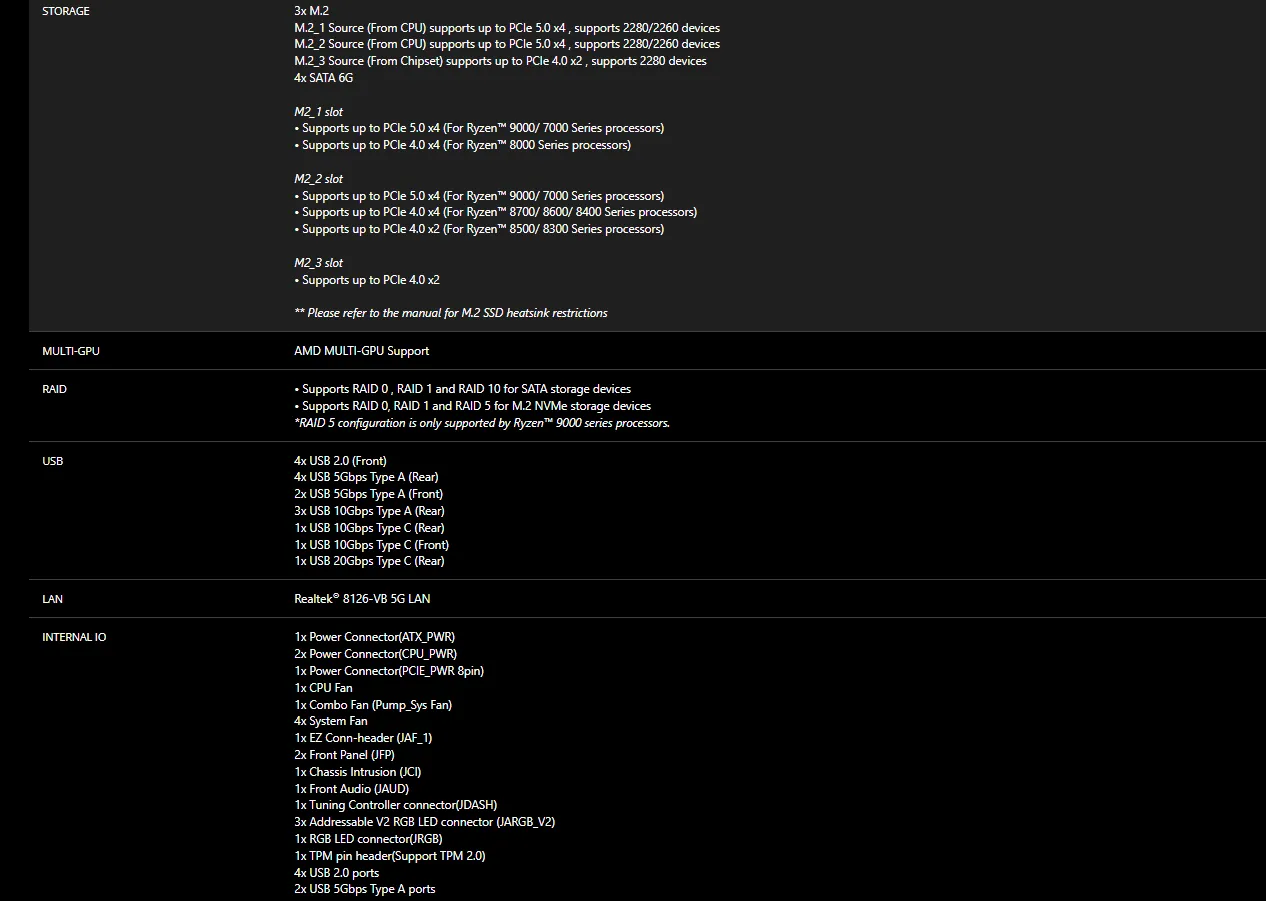

TRIPLE M.2 CONNECTORS - Storage options include 2 x M.2 Gen5 x4 128Gbps slots and 1 x M.2 Gen4 x2 32Gbps slot; Features EZ M.2 Shield Frozr II to prevent thermal throttling and EZ M.2 Clip II for EZ DIY experience
-

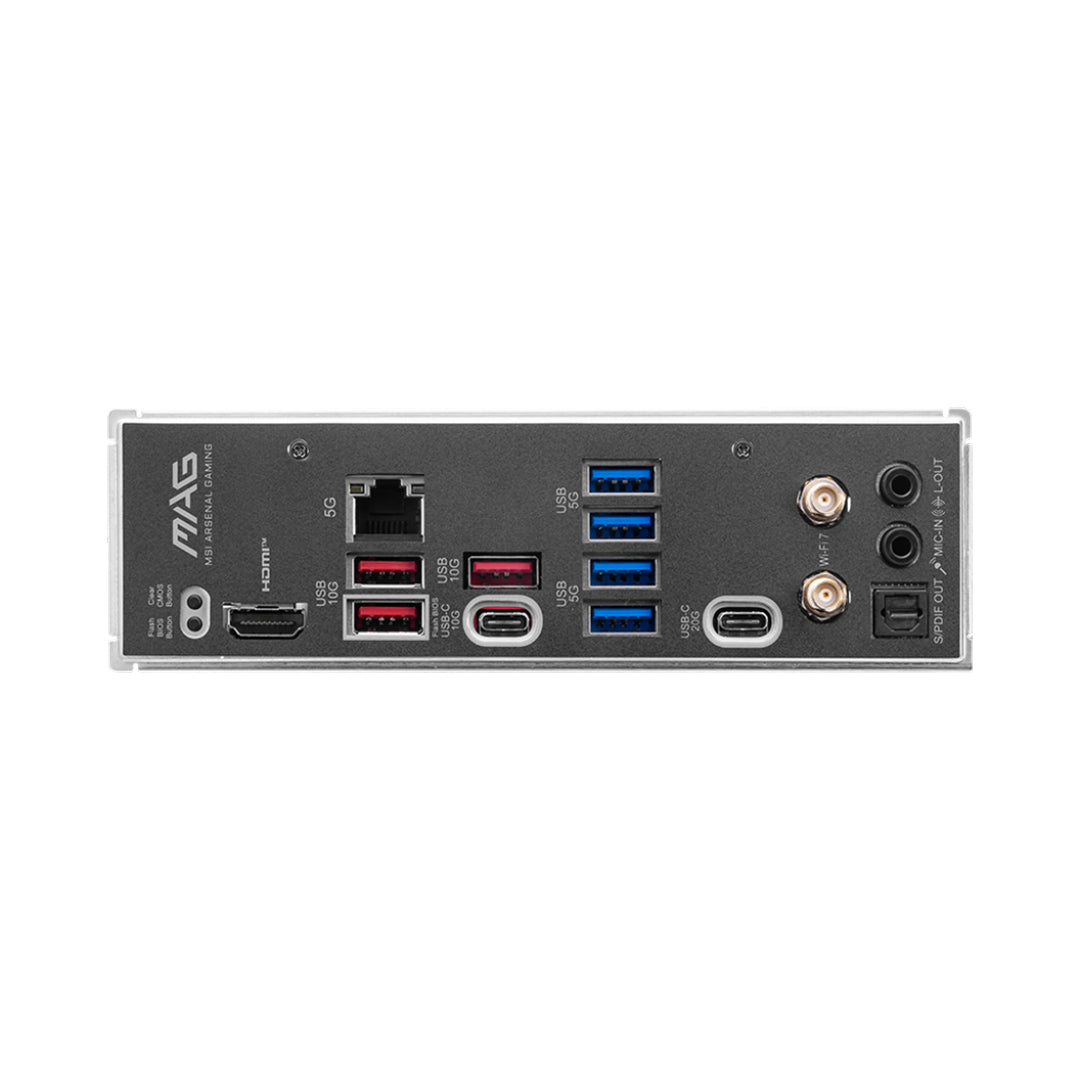

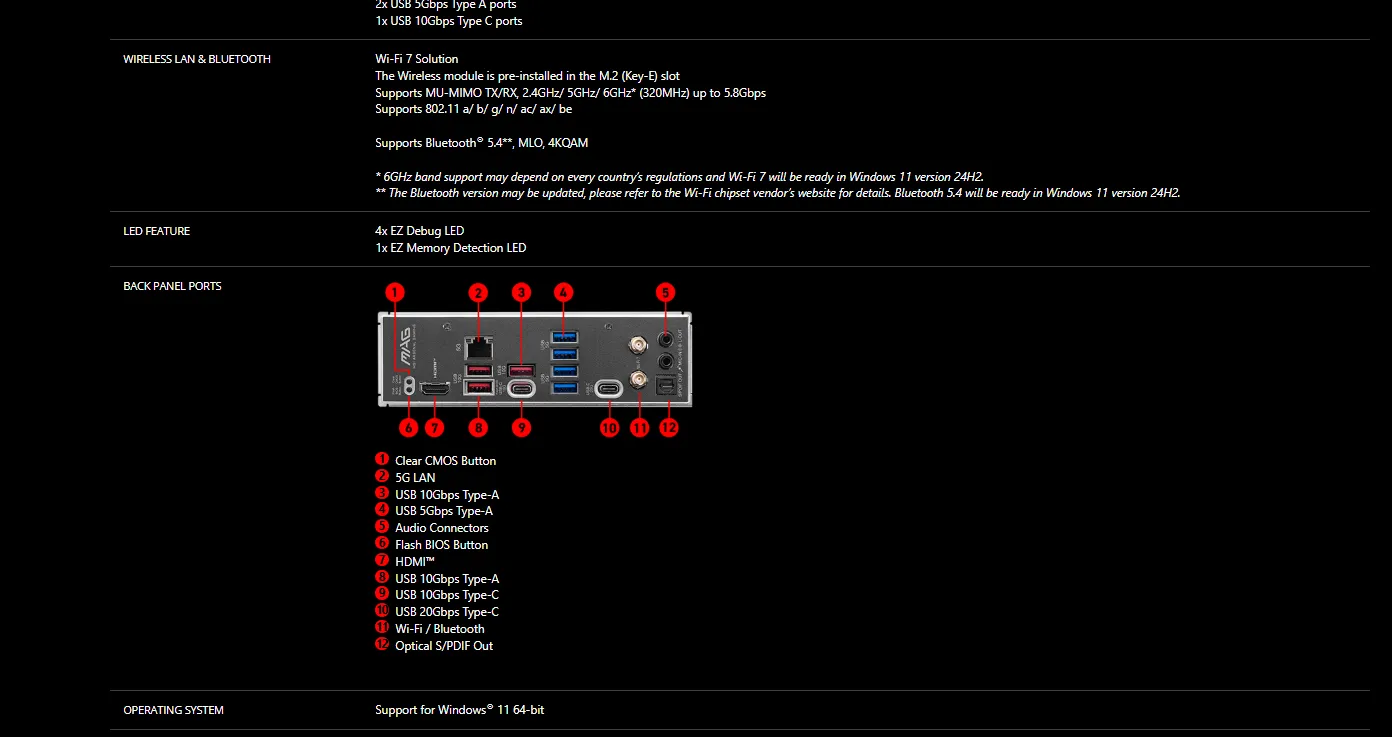

CONNECTIVITY - Network hardware includes a full-speed Wi-Fi 7 module with Bluetooth 5.4 & 5Gbps LAN; Rear ports include USB 20G Type-C and 7.1 USB High Performance Audio with Audio Boost 5 (supports S/PDIF output)
