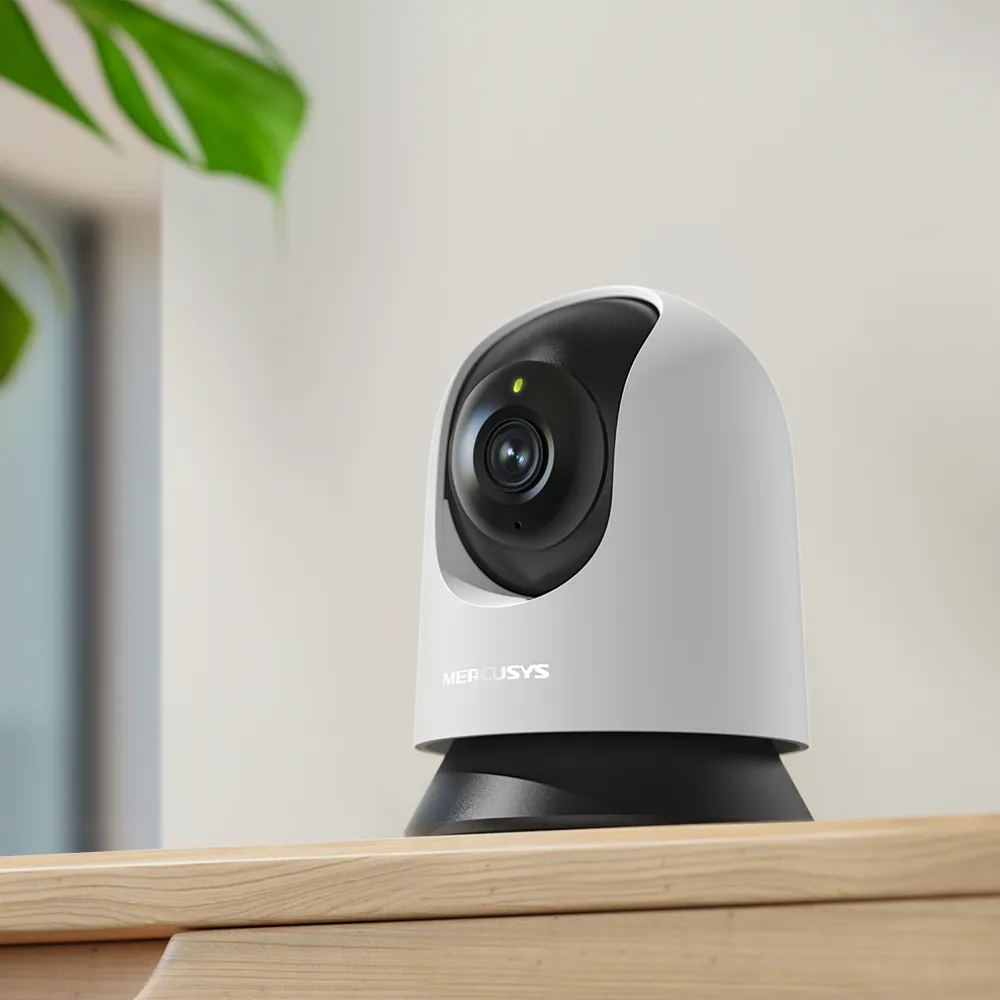

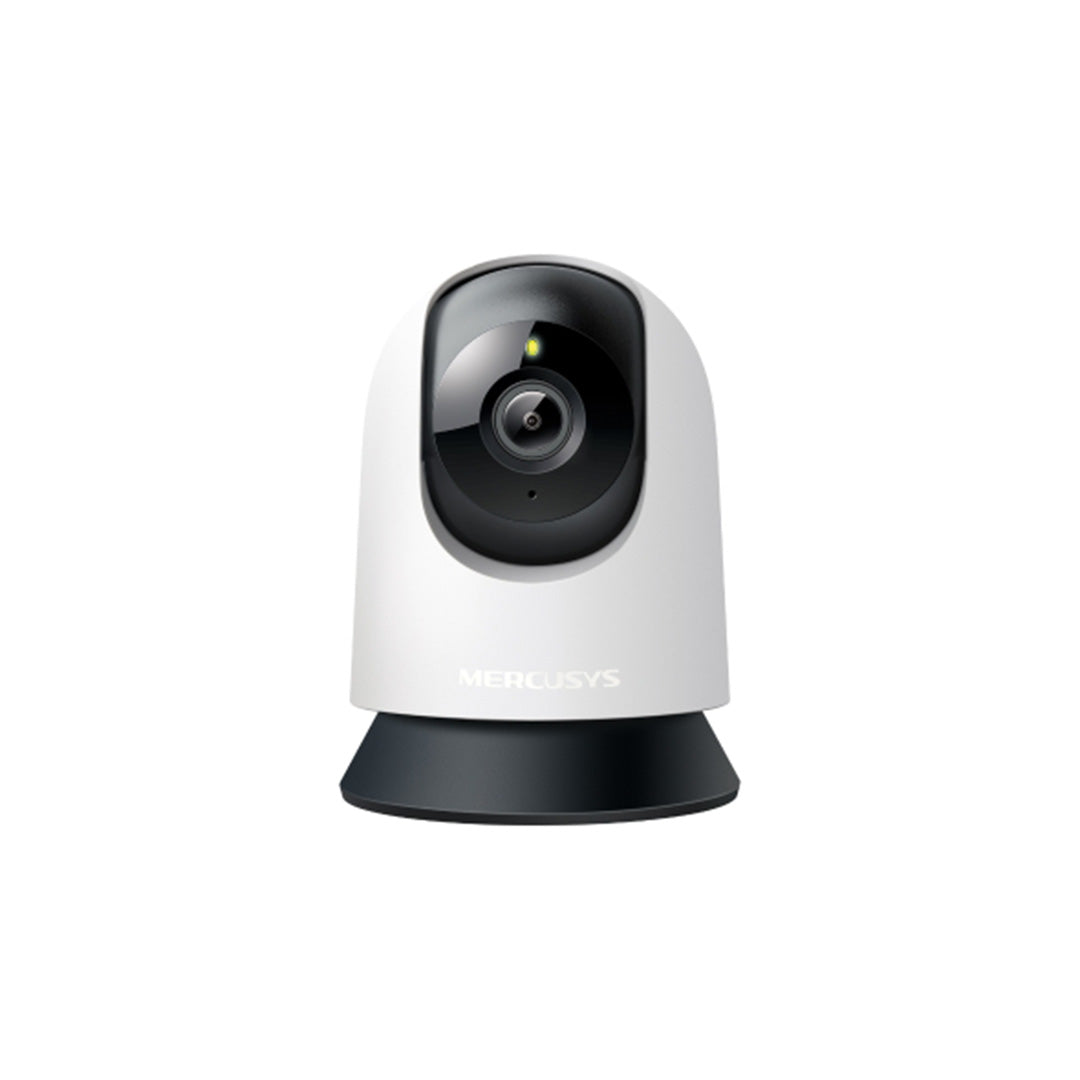

MERCUSYS MC200 1080p Pan/Tilt Home Security Wi-Fi Camera - 6957939004897

Camera

Image Sensor

1/3.2'' Progressive Scan CMOS Not Starlight Sensor

Lens

Focal Length: 4 mm
Aperture: F2.0
Field of View: 87° (Diagonal), 74°(Horizontal), 40°(Vertical)

Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)
Tilt Mechanical Range: 70° (110° Tilt Coverage)

Night Vision

850 nm IR LED (40 ft / 12 m)

Interface & Button

1× RESET Button
1× MicroSD Card Slot (Up to 512 GB)

Video & Audio

Maximum Resolution

1920 × 1080 px

Digital Zoom

Supports 10.8x zoom

Frame Rate

15/20/25/30 fps ( 15fps by default)

Video Compression

H.264

Live View

Yes

Image Enhancement

/

Audio Input & Output

Built-in microphone and speaker

Audio Communication

2-way audio

Siren Volume

88dB (Level measured at 4-inch/10-cm distance)

Software

Security

128 bit AES encryption with SSL/TLS

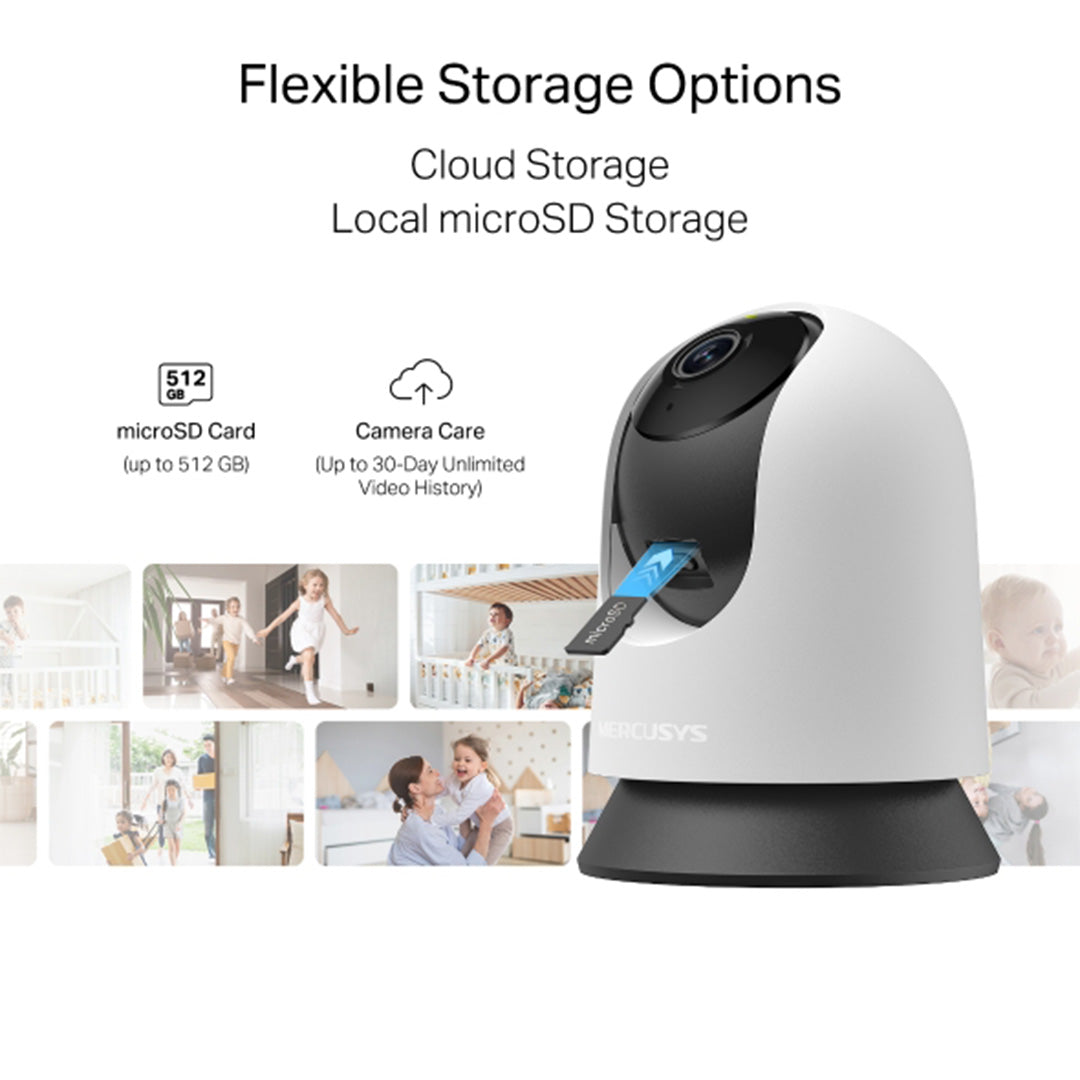

StorageLocal Storage

Micro SD card slot
(Supports up to 512GB)

Cloud Storage

MERCUSYS Camera Care Cloud Storage Services (Subscription required)

Network

Network Connectivity

Connect via Wi-Fi

Wireless Connectivity

11Mbps(802.11b)
54Mbps(802.11g)
72.2Mbps(802.11n)

Max. Distance Between Hub and Camera/Doorbell

/

RTSP

Yes

ONVIF

Yes

Power

Power Source

9V DC Power Adapter

Input Voltage

100-240VAC, 50/60Hz, 0.3A

Output Voltage

9.0V/0.6A

Detection & Notifications

Sensor

/

AI Detection

Motion detection
Person Detection
Baby Crying Detection

Activity Zones

Yes
*Only works with Motion Detection.

Output Notification

System Notification

General

Smart Integration

Google Assistant, Amazon Alexa

Weather Resistance

/

Mounting Options

Tabletop
Ceiling-Mounted

Operating Temperature

0 ºC ~ 40 ºC (32°F ~ 104°F )

Storage Temperature

-40°C~60°C (-40°F~140°F)

Operating Humidity

10%~90%RH, Non-condensing

Storage Humidity

0%~90%RH, Non-condensing

Charging Temperature

/

Dimensions ( W x D x H )

78.4 × 78.4 × 105.6 mm
(3.09 × 3.09 × 4.16 in)

Others

Certifications

CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

Package Contents

Pan/Tilt Home Security Wi-Fi Camera (MC200) × 1
Power Adapter × 1
Mounting Anchors × 2
Mounting Screws × 2
Mounting Template Sticker × 1
Quick Start Guide
