Description & Specifications

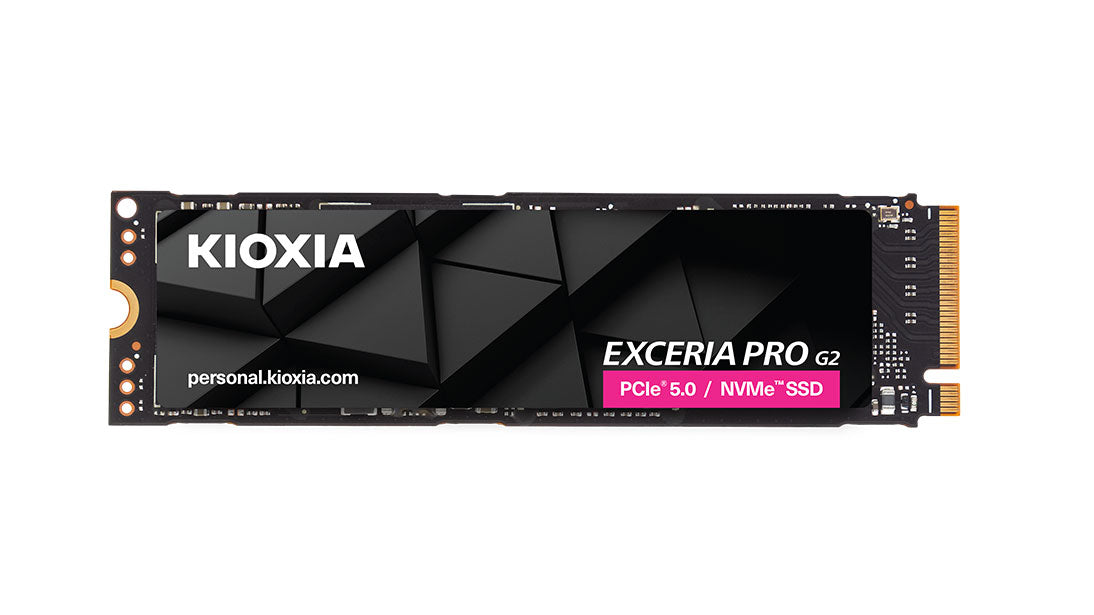

- PCIe® Gen5 x4 NVMe Performance – Next-generation interface delivers ultra-high bandwidth for cutting-edge gaming, AI, and creative workloads.
- Up to 14,900 MB/s Sequential Read – Blazing-fast data access dramatically reduces load times and accelerates heavy file operations.
- BiCS FLASH™ TLC 3D NAND – High-end TLC memory ensures strong endurance, consistent performance, and long service life.
- NVMe™ 2.0d Protocol – Optimized I/O path lowers latency between CPU and storage for smoother multitasking.
- Advanced Power Efficiency – Designed to deliver high performance without excessive power draw or thermal output.
- Innovative Heat-Dissipating Label – Enhances thermal stability during sustained high-performance workloads.
- M.2 2280 Form Factor – Compact M-Key design fits modern desktops and laptops supporting PCIe Gen5.
-
High Endurance Ratings – Up to 2,400 TBW on the 4TB model supports intensive write-heavy workloads.
Specification 1TB (1,024GB) 2TB (2,048GB) 4TB (4,096GB) Product Name KIOXIA EXCERIA PRO G2 NVMe SSD 1TB KIOXIA EXCERIA PRO G2 NVMe SSD 2TB KIOXIA EXCERIA PRO G2 NVMe SSD 4TB Form Factor M.2 2280-S3-M M.2 2280-S3-M M.2 2280-S4-M Interface PCI Express® Gen5 x4 Interface Protocol NVMe™ Base Specification 2.0d Flash Memory Type BiCS FLASH™ TLC 3D NAND Max Sequential Read 14,400 MB/s 14,900 MB/s 14,900 MB/s Max Sequential Write 12,700 MB/s 13,400 MB/s 13,700 MB/s Max Random Read 2,000,000 IOPS 2,250,000 IOPS 2,300,000 IOPS Max Random Write 1,900,000 IOPS 1,950,000 IOPS 1,950,000 IOPS Endurance (TBW) 600 TB 1,200 TB 2,400 TB MTTF 1.5 million hours Operating Temperature 0 °C to 85 °C Storage Temperature -40 °C to 85 °C Power Consumption (Active) 9.6 W (typ.) 8.4 W (typ.) 8.5 W (typ.) Power Consumption (Idle) PS3: 50 mW / PS4: 5 mW (typ.) Supply Voltage 3.3 V ±5% Dimensions (L × W × H) 80.15 × 22.15 × 2.38 mm 80.15 × 22.15 × 2.38 mm 80.15 × 22.15 × 2.63 mm Weight 7.3 g (typ.) Shock Resistance 1,000 G / 0.5 ms half-sine Vibration Resistance 25.4 mm p-p (10–20 Hz), 20 G (20–2000 Hz) Performance Optimization TRIM, Idle Time Garbage Collection Target Applications Client desktops and laptops Warranty Up to 5-year manufacturer warranty In the Box • KIOXIA EXCERIA PRO G2 NVMe SSD (1TB / 2TB / 4TB)
