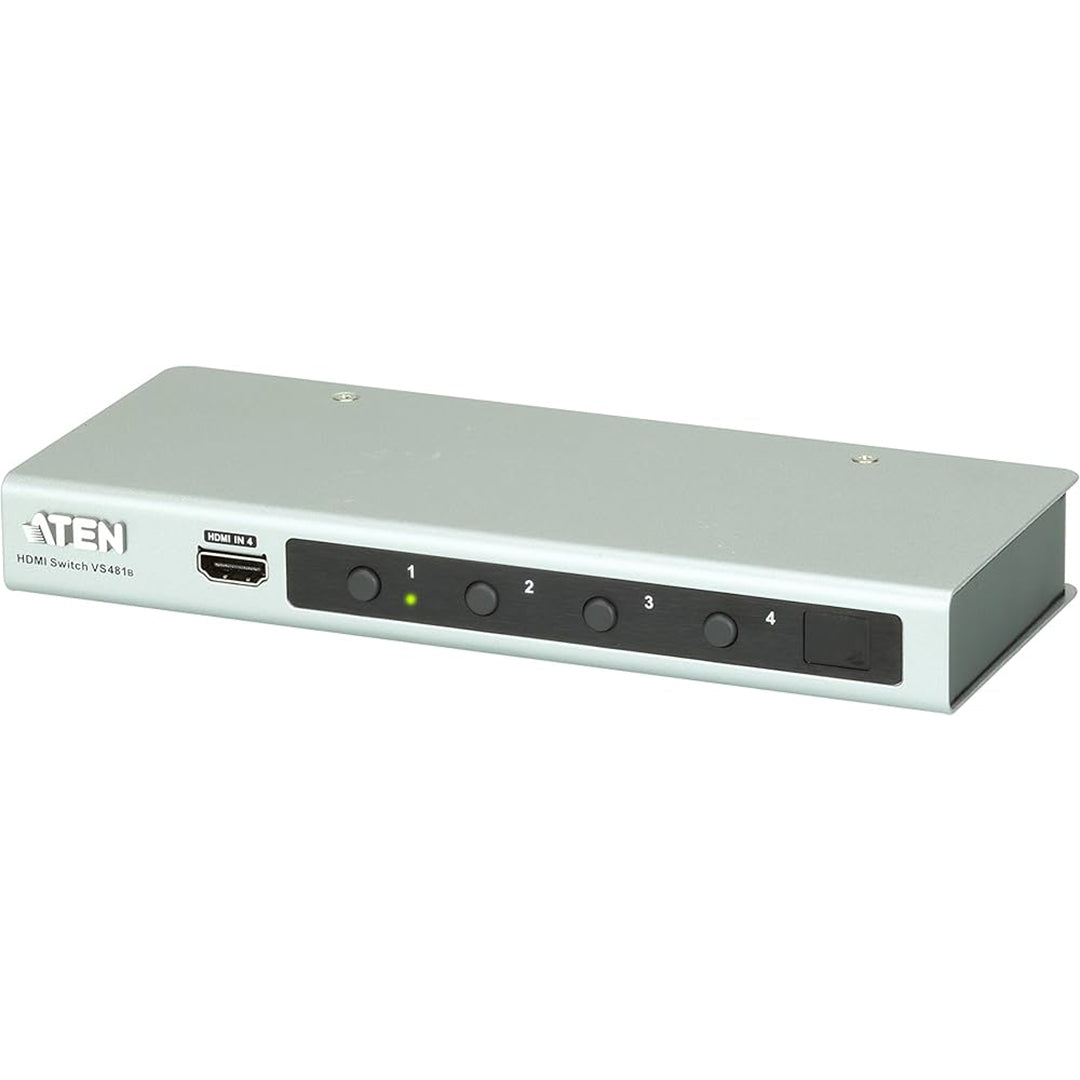

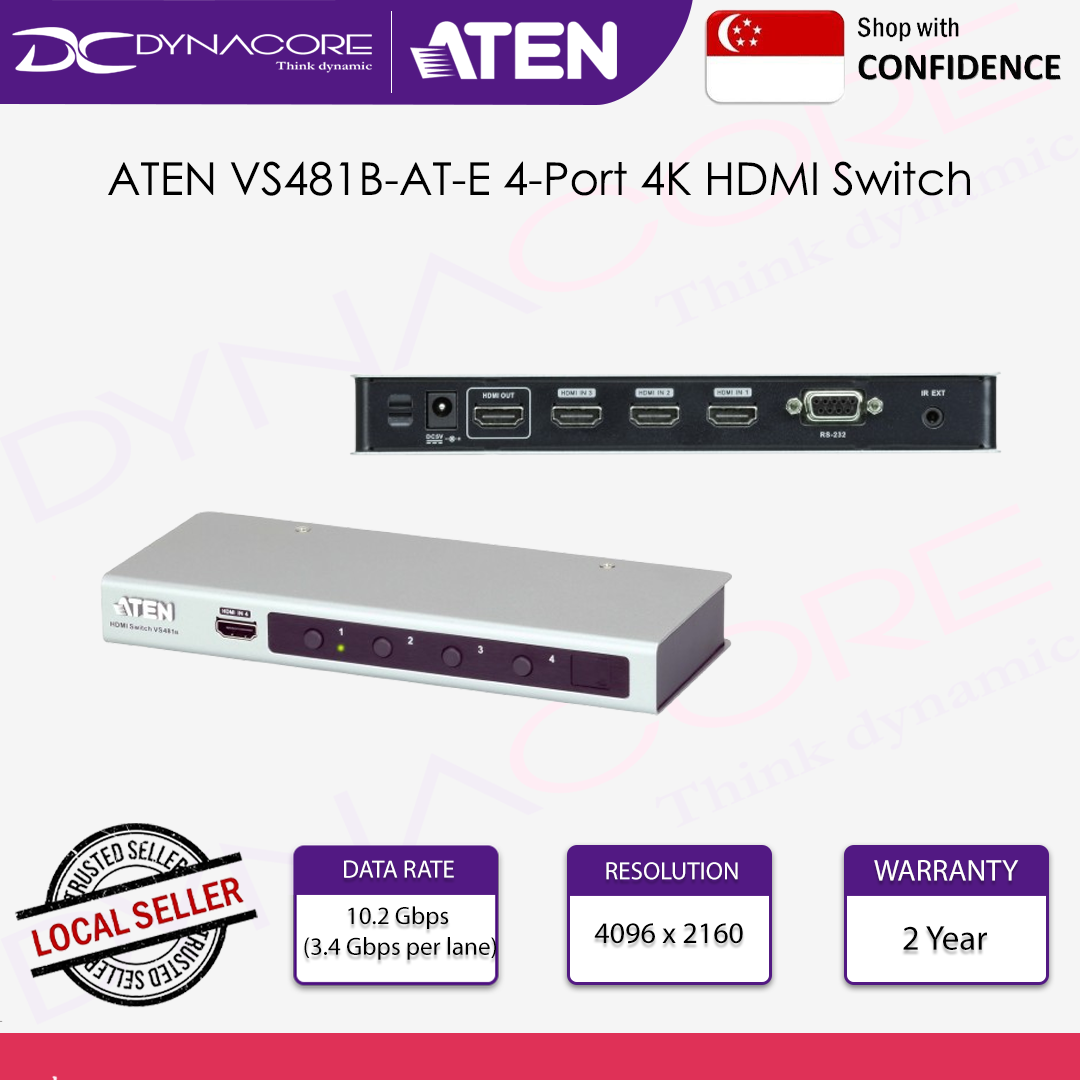

ATEN VS481B-AT-E 4-Port 4K HDMI Switch - 672792005732

Video Input

• Interfaces

          4 x HDMI Type A Female (Black)

• Impedance

          100 Ω

• Max. Distance

          3m @3840x2160@30 (4:4:4)

Video Output

• Interfaces

          1 x HDMI Type A Female (Black)

• Impedance

          100 Ω

• Max. Distance

          15m @3840x2160@30 (4:4:4)

Video

• Max. Data Rate

          10.2 Gbps (3.4 Gbps per lane)

• Max. Pixel Clock

          340 MHz

• Compliance

          HDMI (3D, Deep Color, 4K)
          HDCP Compatible
          Consumer Electronics Control (CEC)

• Max. Resolution

          Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0);
          4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Control

• RS-232

          Connector: 1 x DB-9 Female (Black)
          Baud Rate and Protocol:
          Baud Rate: 19200, Data Bits: 8, Stop Bits:1, Parity: No, Flow Control: No

• IR

          1 x Mini Stereo Jack Female (Black)

Connectors

• Power

          Connector: 1 x DC Jack

• Power Consumption

          DC5V:1.76W:8BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

          0 - 50°C

• Storage Temperature

          -20 - 60°C

• Humidity

          0 - 80% RH, Non-Condensing

• Physical Properties

          Housing
          Metal

• Weight

          0.48 kg ( 1.06 lb )

• Dimensions (L x W x H)

          20.00 x 8.25 x 2.50 cm
          (7.87 x 3.25 x 0.98 in.)

• Carton Lot

          10 pcs

• Package Contents

          1x VS481B 4-Port HDMI Switch
          1x HDMI Cable (1.8m/6ft)
          1x IR Remote Control
          1x Power Adapter
          1x User Instructions
