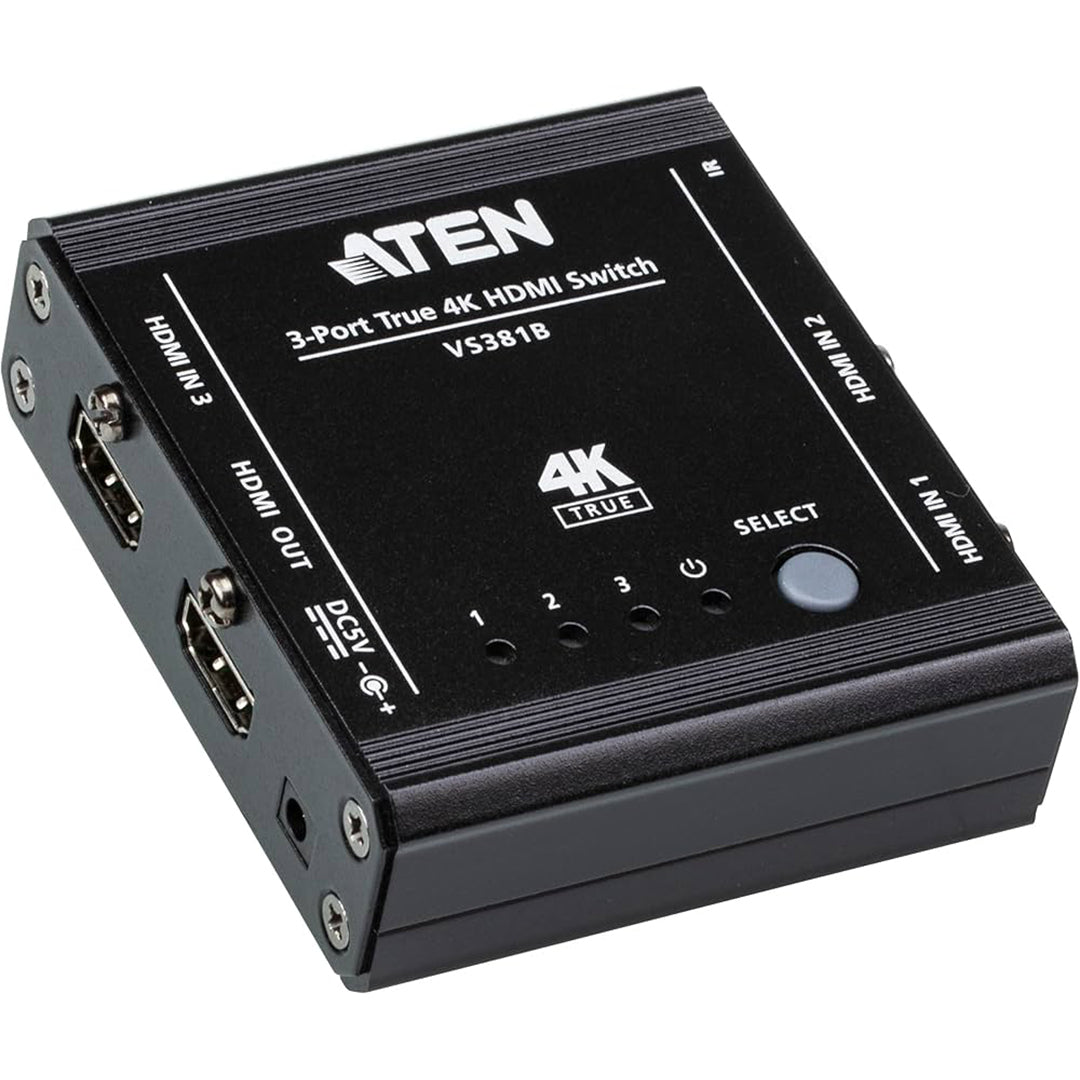

ATEN VS381B-AT 3-Port True 4K HDMI Switch - 672792012198

LEDs

• Input

3 x HDMI-In (Green)

• Power

1 x Power LED (Green)

Pushbuttons

• Select

1 x push button (input selection)

Audio

• Input

3 x HDMI Type A Female (Black)

• Output

1 x HDMI Type A Female (Black)

Video Input

• Interfaces

3 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video Output

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

Max 5m @ Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Video

• Max. Data Rate

18 Gbps (6 Gbps Per Lane)

• Max. Pixel Clock

600 MHz

• Compliance

HDMI 2.0 (3D, Deep Color, 4K, HDR10, Dolby Vision)
HDCP 2.2

• Max. Resolution

4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Control

• IR

1 x Mini Stereo Jack Female (Black) / Max distance@ 5m

Connectors

• Power

1 x DC Jack

Note: ATEN strongly recommend to use the USB via USB to DC cable (supplied) and a 5V/0.5A power adapter (self-supplied) as the main power source for the unit. The power supply from the HDMI connection may be insufficient for the unit to operate fully.

• Power Consumption

DC5V:1.46W:6BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0-40 °C

• Storage Temperature

-20 - 60 °C

• Humidity

0 - 80% RH, Non-Condensing

• Physical Properties

Housing
Metal

• Weight

0.15 kg ( 0.33 lb )

• Dimensions (L x W x H)

7.16 x 7.90 x 2.55 cm
(2.82 x 3.11 x 1 in.)

• Carton Lot

20 pcs

• Package Contents

1x VS381B 3-Port True 4K HDMI Switch
1x USB to DC Power Cord
1x IR Remote Control
1x IR Receiver
1x User Instructions
