Video Input

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

5m at 4K@60Hz (4:4:4)

Video Output

• Interfaces

4 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

5m at 4K@60Hz (4:4:4)

Video

• Max. Data Rate

18Gpbs (6 Gbps Per Lane)

• Max. Pixel Clock

600 MHz

• Compliance

HDMI 2.0 (3D, Deep Color, 4K);
HDCP 2.2 Compatible

• Max. Resolution

Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:4:4)

Audio

• Input

1 x HDMI Type A Female (Black)

• Output

4 x HDMI Type A Female (Black)

• Connectors

Power    1 x DC Jack

• Power Consumption

DC5V:4.84W:23BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0-40 °C

• Storage Temperature

-20 - 60 °C

• Humidity

0 - 80% RH, Non-Condensing

• Physical Properties

Housing
Metal

• Weight

0.48 kg ( 1.06 lb )

• Dimensions (L x W x H)

20.00 x 8.00 x 2.50 cm
(7.87 x 3.15 x 0.98 in.)

• Carton Lot

20 pcs

• Package Contents

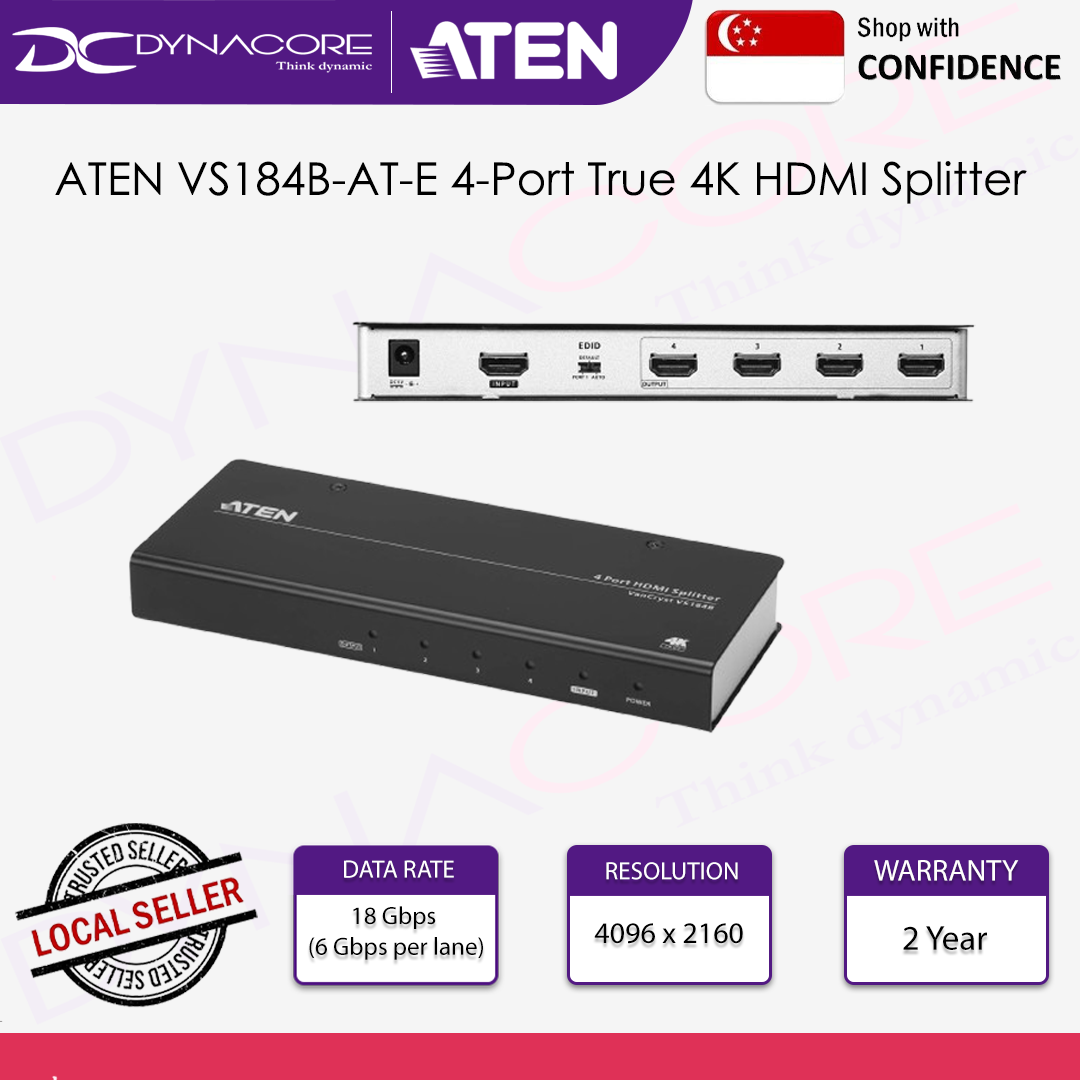

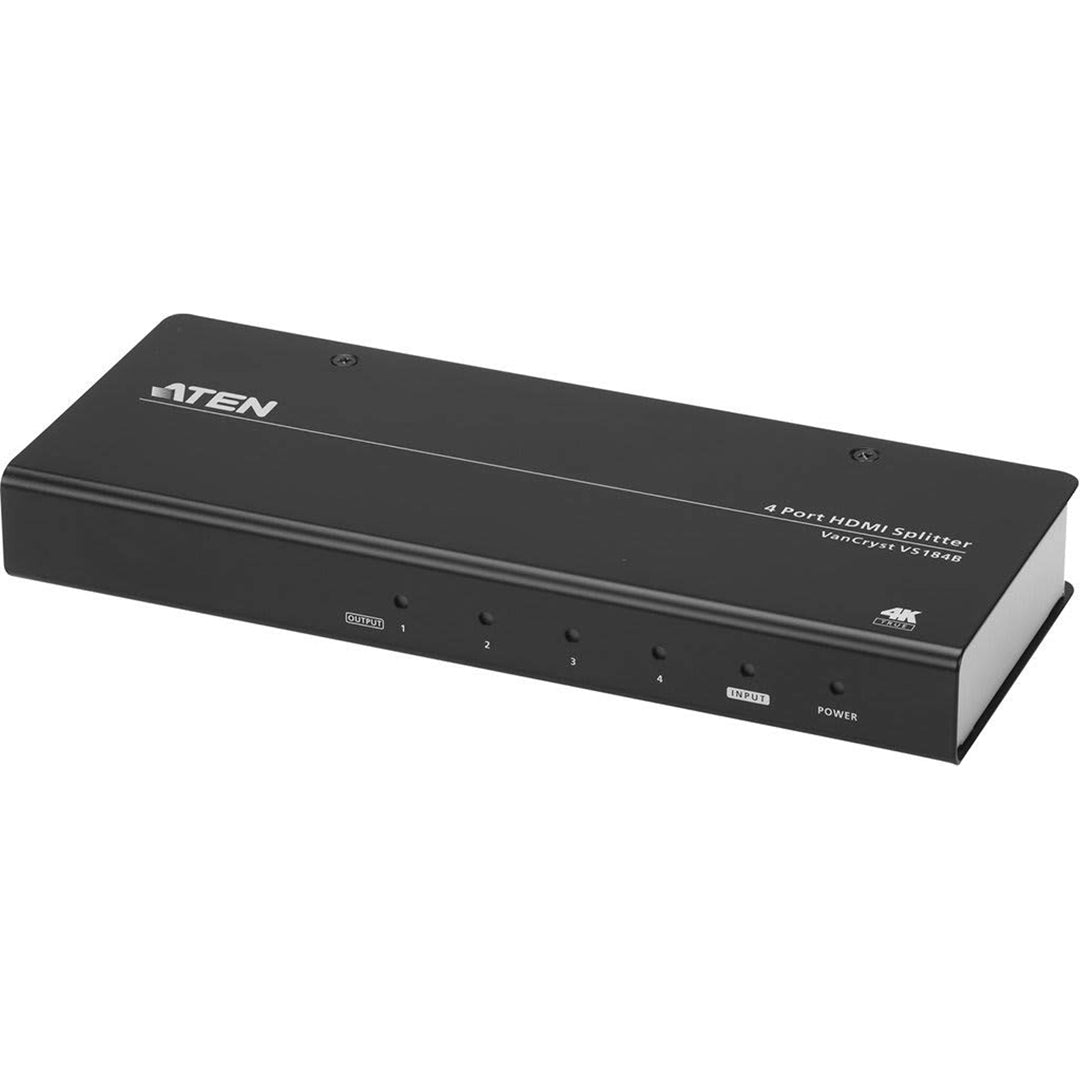

1 x VS184B 4-Port True 4K HDMI Splitter
1 x Power adapter
1 x HDMI cable
1 x User Instructions

2 Years
