Video Input/Output

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

3 m

Video

• Max. Data Rate

10.2Gbps (3.4Gbps per lane)

• Max. Pixel Clock

340 MHz

• Compliance

HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible

• Max. Resolutions / Distance

Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)
*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

• Input

1 x HDMI Type A Female (Black)

• Output

N/A

Control

• IR Channel

1 x Mini Stereo Jack Female (Black);
Single way bypass channel from receiver to transmitter

Switches

• Mode Switch

EDID Mode Selection (Read EDID from Transmitter HDMI output or Receiver HDMI output)

Connectors

• Power

1 x DC Jack (Black) with locking


• Unit To Unit

1 x RJ-45 Female

• Power Consumption

DC12V:1.86W:9BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0 - 40°C

• Storage Temperature

-20 - 60°C

• Humidity

20 - 90% RH, Non-Condensing

Physical Properties

• Housing

Metal

• Weight

0.12 kg ( 0.28 lb )

• Dimensions (L x W x H) with bracket

7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)

• Dimensions (L x W x H) without bracket

5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)

• Input Resolutions

1920x1080 @ 60 Hz
1920x1200 @ 60 Hz
480p @ 60 Hz (4:3)/(16:9)
576p @ 50 Hz (4:3)
640x480 @ 60Hz (4:3)
720p @ 50/60 Hz
1080p @ 24/25/30/50/60 Hz
3840x2160p @ 24/25/30 Hz
4096x2160p @ 24/25/30 Hz

SPECIFICATIONS (Receiver)
Video Input

• Interfaces

N/A

• Impedance

N/A

• Max. Distance

N/A

Video Output

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

3 m

Video

• Max. Data Rate

10.2Gbps (3.4Gbps per lane)

• Max. Pixel Clock

340 MHz

• Compliance

HDMI (3D, Deep Color, 4K)
HDCP1.4 Compatible

• Max. Resolutions / Distance

Up to 4K@30m (Cat5e), 40m (Cat 6/ATEN 2L-2910); 1080p@35m (Cat5e), 50m (Cat 6/2L-2910)

*4K supported:
4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4)

Audio

• Input

N/A

• Output

1 x HDMI Type A Female (Black)

Control

• IR Channel

1 x Mini Stereo Jack Female (Black);
Single way bypass channel from receiver to transmitter

Switches

• Mode Switch

N/A

Connectors

• Power

1 x RJ-45 Female
(Power over Cable, power supply from VE1821T)

• Unit To Unit

1 x RJ-45 Female

• Power Consumption

POC:0.87W:4BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0 - 40°C

• Storage Temperature

-20 - 60°C

• Humidity

20 - 90% RH, Non-Condensing

Physical Properties

• Housing

Metal

• Weight

0.12 kg ( 0.28 lb )

• Dimensions (L x W x H) with bracket

7.95 x 6.80 x 1.65 cm
(3.13 x 2.68 x 0.65 in.)

• Dimensions (L x W x H) without bracket

5.75 x 6.80 x 1.65 cm (2.26 x 2.68 x 0.65 in.)

• Input Resolutions

640x480 @ 60/75 Hz
800x600 @ 60/75 Hz
1024x768 @ 60/75 Hz
1280x800 @ 60 Hz
1280x1024 @ 60/75 Hz
1400x1050 @ 60 Hz
1440x900 @ 60 Hz
1600x1200 @ 60 Hz
1680x1050 @ 60 Hz

• Package Contents

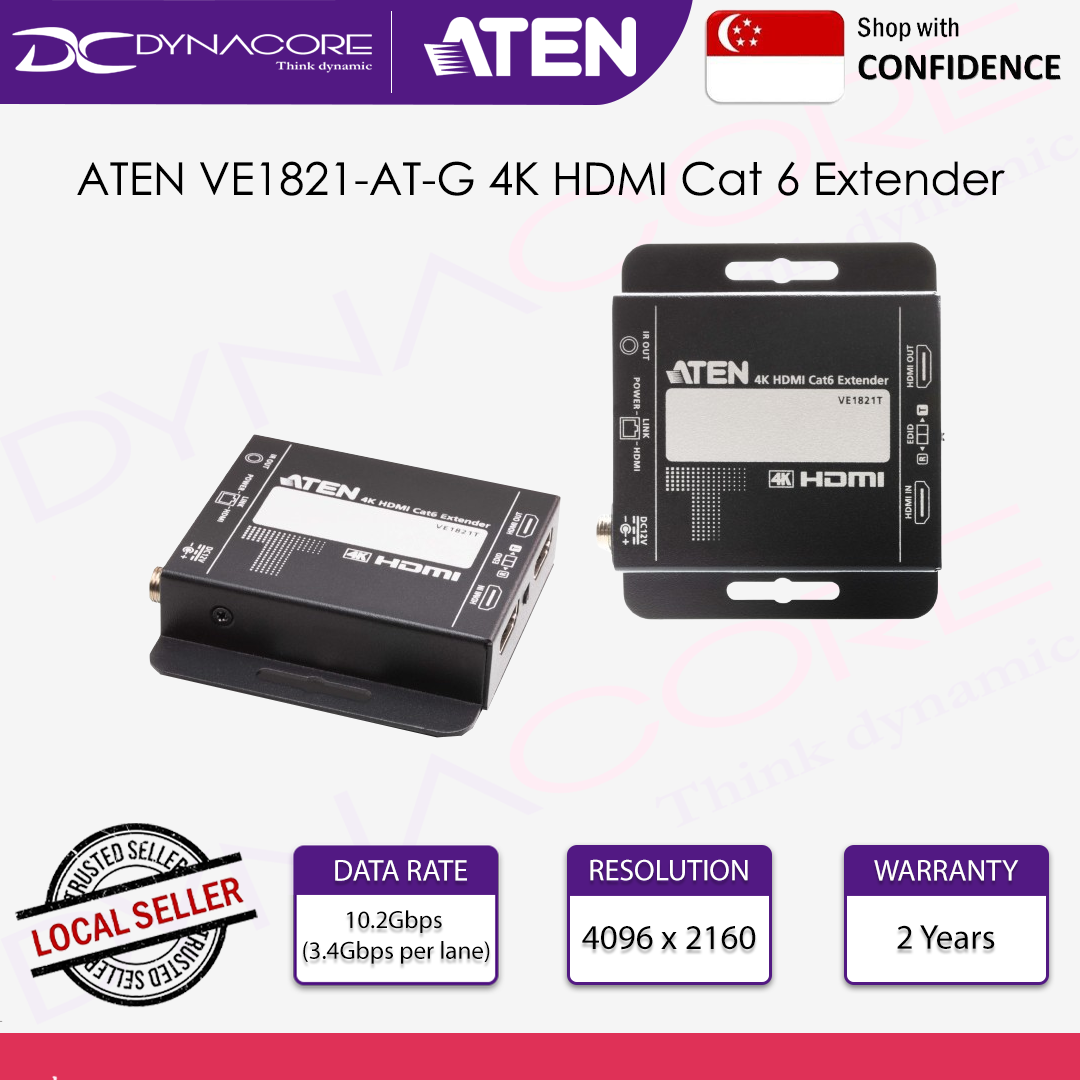

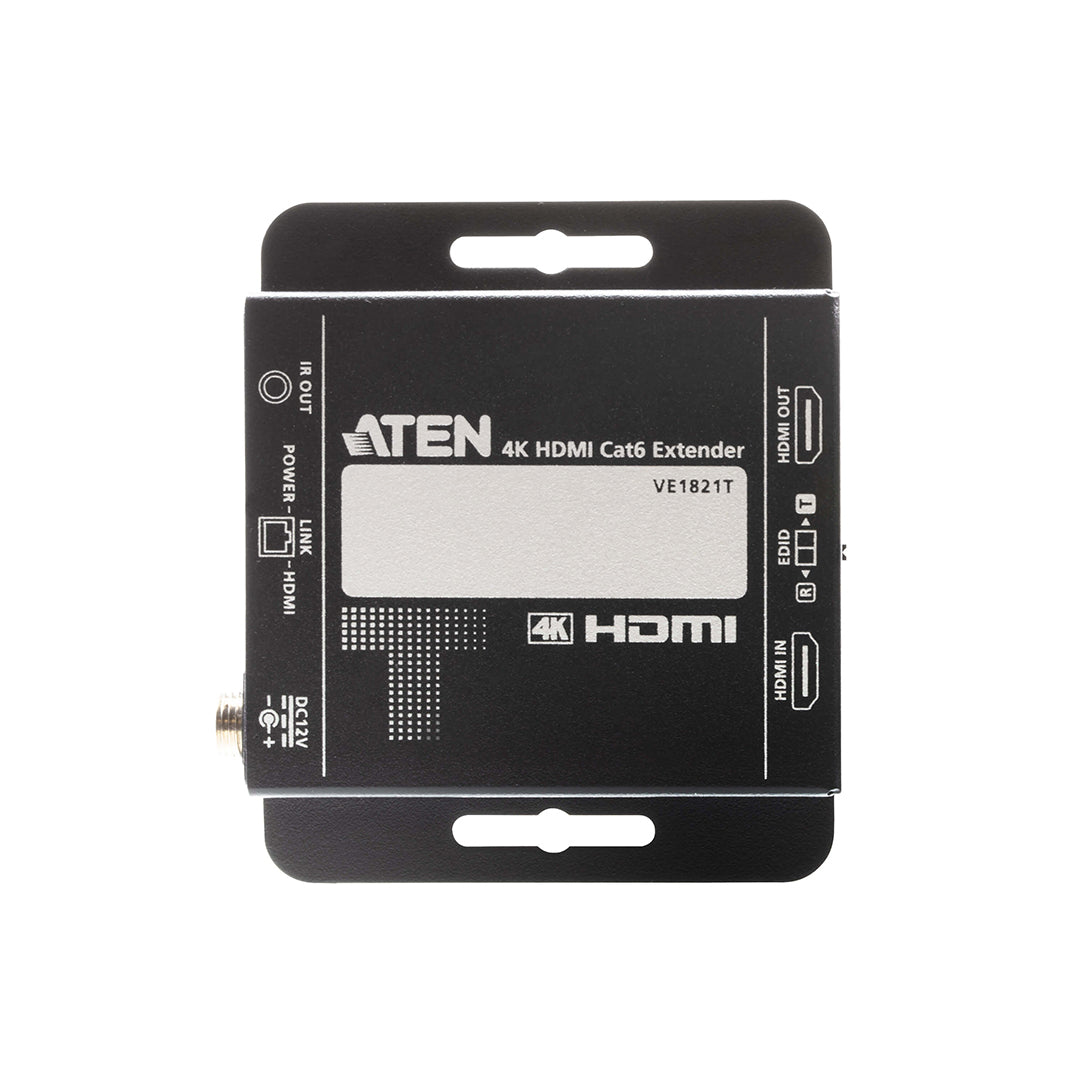

1x VE1821T 4K HDMI Cat 6 Extender (Transmitter)
1x VE1821R 4K HDMI Cat 6 Extender (Receiver)
1x IR emitter cable
1x IR receiver cable
1x power adapter
1x power cord (only applicable to product sold in Japan)
4x power plugs (inapplicable to product sold in India & Japan)
1x user instructions

2 Years
