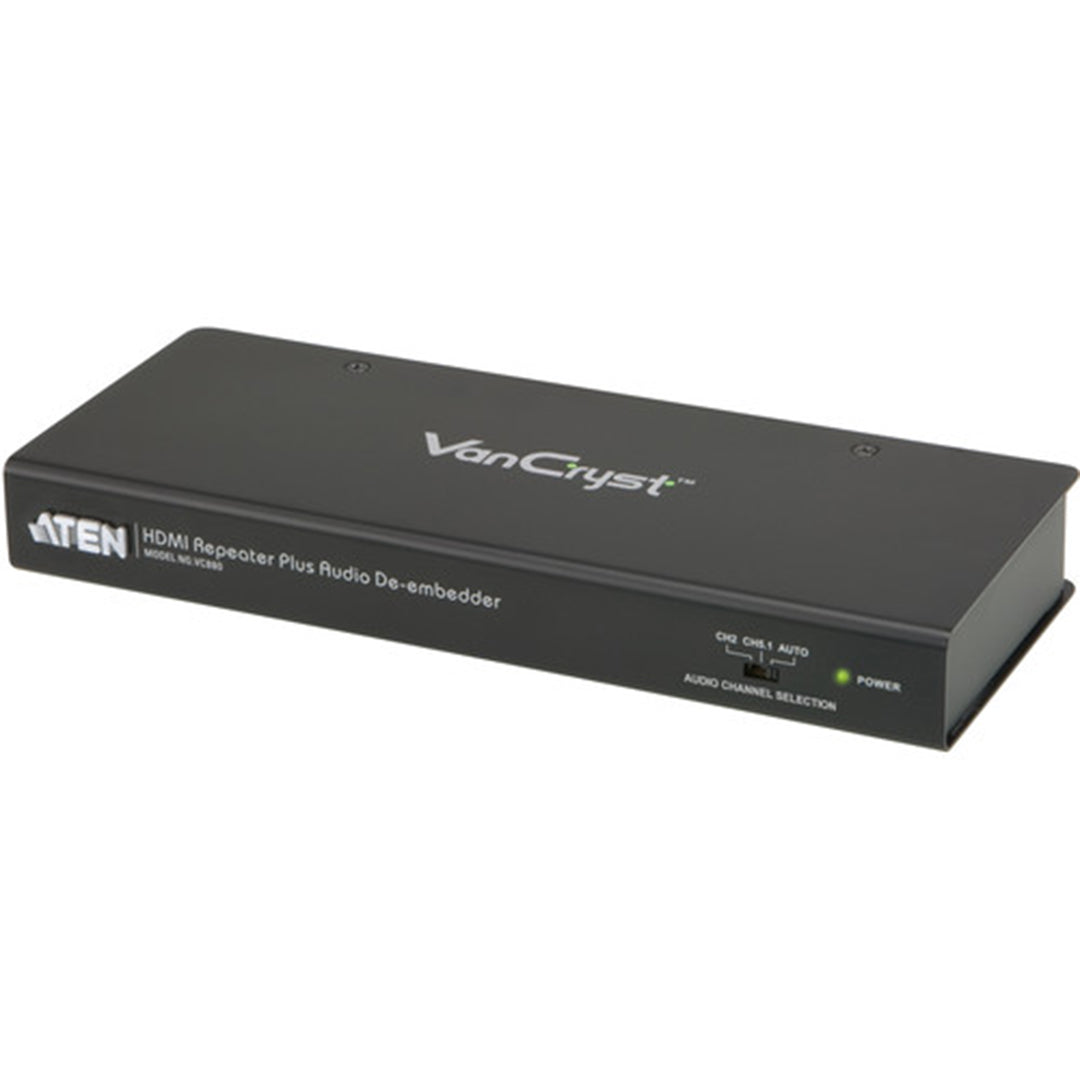

ATEN VC880-AT-E HDMI Repeater Plus Audio De-embedder - 672792002922

Video Input

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

3m at 1920*1080@60 (4:4:4)

Video Output

• Interfaces

1 x HDMI Type A Female (Black)

• Impedance

100 Ω

• Max. Distance

15m at 1920*1080@60 (4:4:4)

Video

• Max. Data Rate

6.75 Gps (2.25 Gbps Per Lane)

• Max. Pixel Clock

225 MHz

• Compliance

HDMI (3D, Deep Color)
HDCP Compatible

• Max. Resolution

Up to 1920 x 1080

Audio

• Output

1 x HDMI Type A Female (Black);
1 x Toslink (Black);
1 x RCA (Orange);
2 x RCA (Red/White);

Connectors

• Power

1 x DC Jack

• Power Consumption

DC5.3V:2.25W:11BTU/h

Note:
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.

Environmental

• Operating Temperature

0 - 50 ºC

• Storage Temperature

-20 - 60 ºC

• Humidity

0 - 80% RH,  Non-Condensing

Physical Properties

• Housing

Metal

• Weight

0.46 kg ( 1.01 lb )

• Dimensions (L x W x H)

20.00 x 8.20 x 2.50 cm
(7.87 x 3.23 x 0.98 in.)

• Carton Lot

20 pcs

• Package Contents

1x VC880 HDMI Repeater Plus Audio De-embedder
1x Power Adapter
1x User Instructions

2 Years
