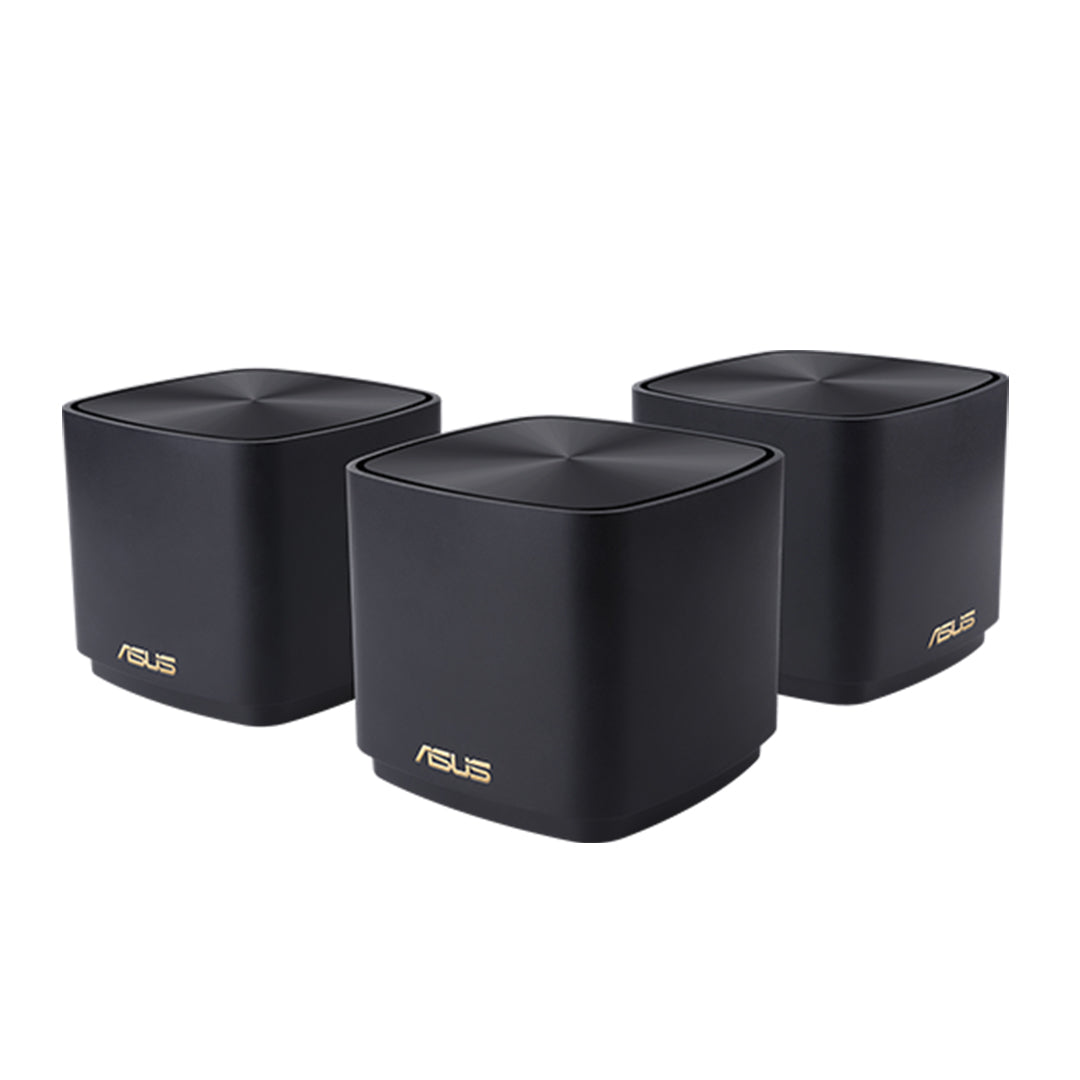

ASUS ZenWiFi XD5 AX3000 3-Pack WiFi 6 Mesh Router System - Black-4711081561408

Model

ASUS ZenWiFi XD5

Model Name

XD5 (W-1-PK)

XD5 (B-1-PK)

XD5 (B-3-PK)

XD5 (B-2-PK)

XD5 (W-2-PK)

XD5 (W-3-PK)

Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

IPv4

IPv6

Product Segment

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

AX technology

Yes

Data Rate

802.11a : up to 54 Mbps

802.11b : up to 11 Mbps

802.11g : up to 54 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Antenna

Internal dual-band antenna x 2

Transmit/Receive

2.4GHz 2x2

5GHz 2x2

Processor

1.7 GHz quad-core processor

Memory

128 MB Flash

512 MB RAM

Boosts speed

MIMO technology

Operating Frequency

2.4 G Hz / 5 GHz

Ports

RJ45 for Gigabits BaseT for WAN/LAN x 1, RJ45 for Gigabits BaseT for LAN x1

Button

WPS Button, Reset Button

LED Indicator

Power x 1

Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12 V with max. 1.5 A current

Package content

ZenWiFi XD5

RJ45 Ethernet cable

Power adapter

Quick start guide

Warranty Card

Screw Pack

Product Weight (g)

307 g

AiMesh

AiMesh

Primary AiMesh router

AiMesh node

Router APP

ASUS Router APP

Alexa

Support Alexa skill

AiProtection

AiProtection Classic

Malicious site blocking

Infected Device Prevention and Blocking

Parental Control

Parental Control

Parental Control Customized Internet schedule

Traffic Control

Bandwidth Monitor

Bandwidth limiter

Traditional QoS

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Wireless

IPv6

Wi-Fi Encryption : WPA3-Personal, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support

UTF-8 SSID

Guest Network

Guest Network Connection time limit

WPS

WAN

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP

Android tethering

Port forwarding

Port triggering

DMZ

DDNS

NAT Passthrough : Automatic IP, Static IP, PPPoE(MPPE supported), PPTP, L2TP

Let's Encrypt

LAN

DHCP Server

IGMP snooping

IPTV

Manually assign IP address

VPN

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Server IPSec

VPN Server OVPN

VPN Server PPTP

Administration

Operating system : ASUSWRT

Free OS upgrade

Firewall

Maximum Firewall keyword filter : 64

Maximum Firewall network service filter : 32

Maximum Firewall URL filter : 64

Wake on LAN (WOL)

SSH

Configuration backup and restore

Diagnosis tools

Feedback system

System log
