Description & Specifications
Model

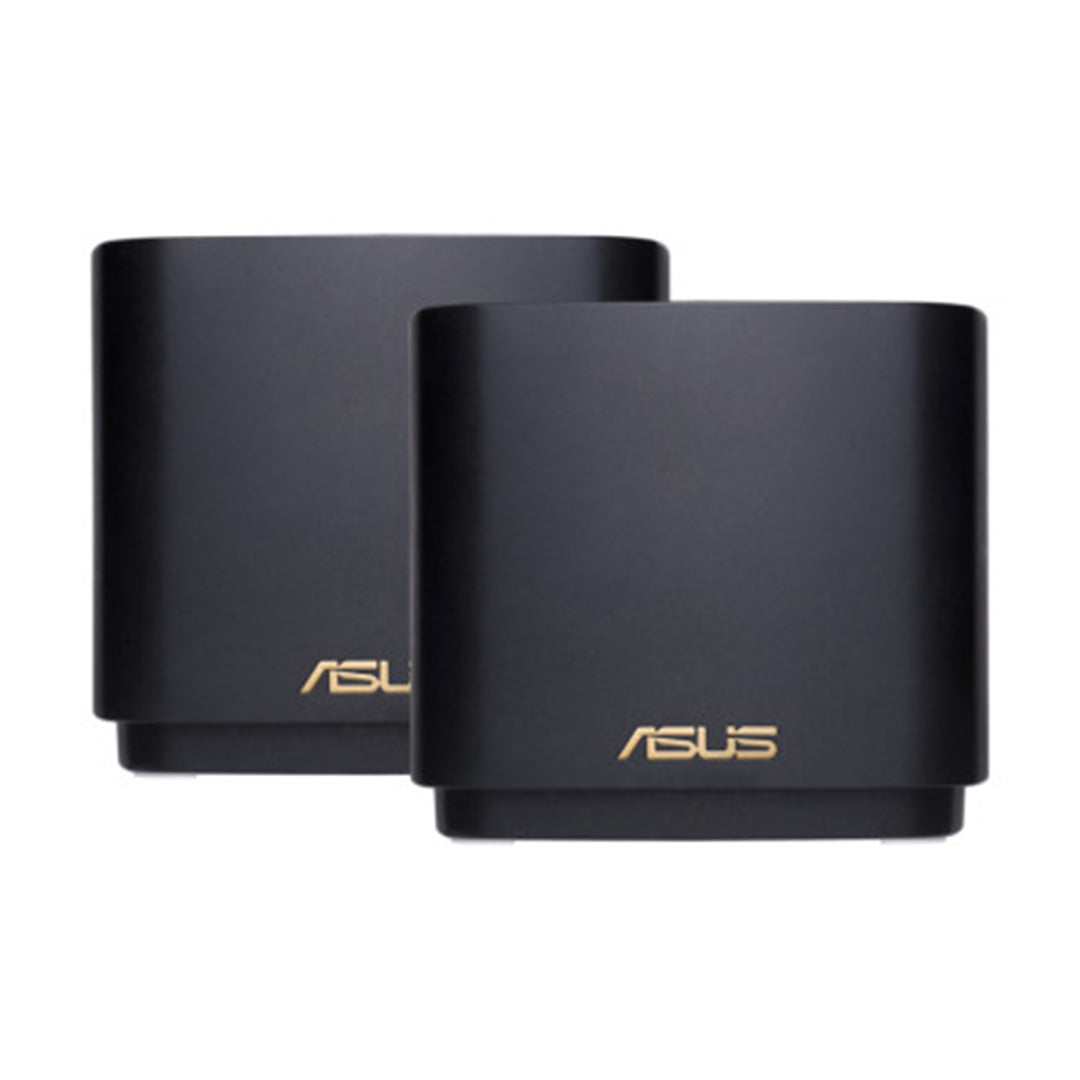

ASUS ZenWiFi XD5
Model Name
XD5 (W-2-PK)
XD5 (B-1-PK)
XD5 (B-3-PK)
XD5 (W-1-PK)
XD5 (B-2-PK)
XD5 (W-3-PK)
XD5 (B-1-PK)
XD5 (B-3-PK)
XD5 (W-1-PK)
XD5 (B-2-PK)
XD5 (W-3-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 867 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
Antenna
Internal dual-band antenna x 2
Transmit / Receive
2.4GHz 2x2
5GHz 2x2
5GHz 2x2
Processor
1.7 GHz quad-core processor
Memory
128 MB Flash
512 MB RAM
512 MB RAM
Boosts Speed
MIMO technology
Operating Frequency
2.4 GHz
5 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
AiMesh Node Mode
Access Point Mode
I/O Ports
RJ45 for Gigabits BaseT for WAN/LAN x 1
RJ45 for Gigabits BaseT for LAN x1
RJ45 for Gigabits BaseT for LAN x1
Buttons
WPS Button, Reset Button
LED Indicator
Power x 1
Power Supply
AC Input: 110V~240V(50~60Hz)
DC Output: 12 V with max. 1.5 A current
DC Output: 12 V with max. 1.5 A current
Package Content
ZenWiFi XD5
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
RJ45 Ethernet cable
Power adapter
Quick start guide
Warranty Card
Screw Pack
Product Weight (g)
307 g
Product Dimensions
90 x 90 x 85 mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule
Time Scheduling
Reward
Parental Control - Safe Browsing
Customized Internet Schedule
Router APP
APP: ASUS Router APP
Guest Network
"The Guest Network provides Internet connection for guests but restricts access to your local network."
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Open system, WPA/WPA2/WPA3-Personal
Support Guest Network
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit
Open system, WPA/WPA2/WPA3-Personal
Security
AiProtection
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
VPN
WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS support
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64
AiProtection
AiProtection Classic
• Router Security Assessment
• Malicious Site Blocking
• Infected Device Prevention and Blocking
• Router Security Assessment
• Malicious Site Blocking
• Infected Device Prevention and Blocking
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
Traffic Control
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
Internet Connection Type
• PPPoE
• PPTP
• L2TP
• Automatic IP
• Static IP
Port Forwarding
• Maximum Port Forwarding Rule : 64
Port Triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
LAN
DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
Universal Beamforming
Explicit Beamforming
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
Universal Beamforming
Explicit Beamforming
Administration
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Warranty
