Zoom
Description & Specifications
Model

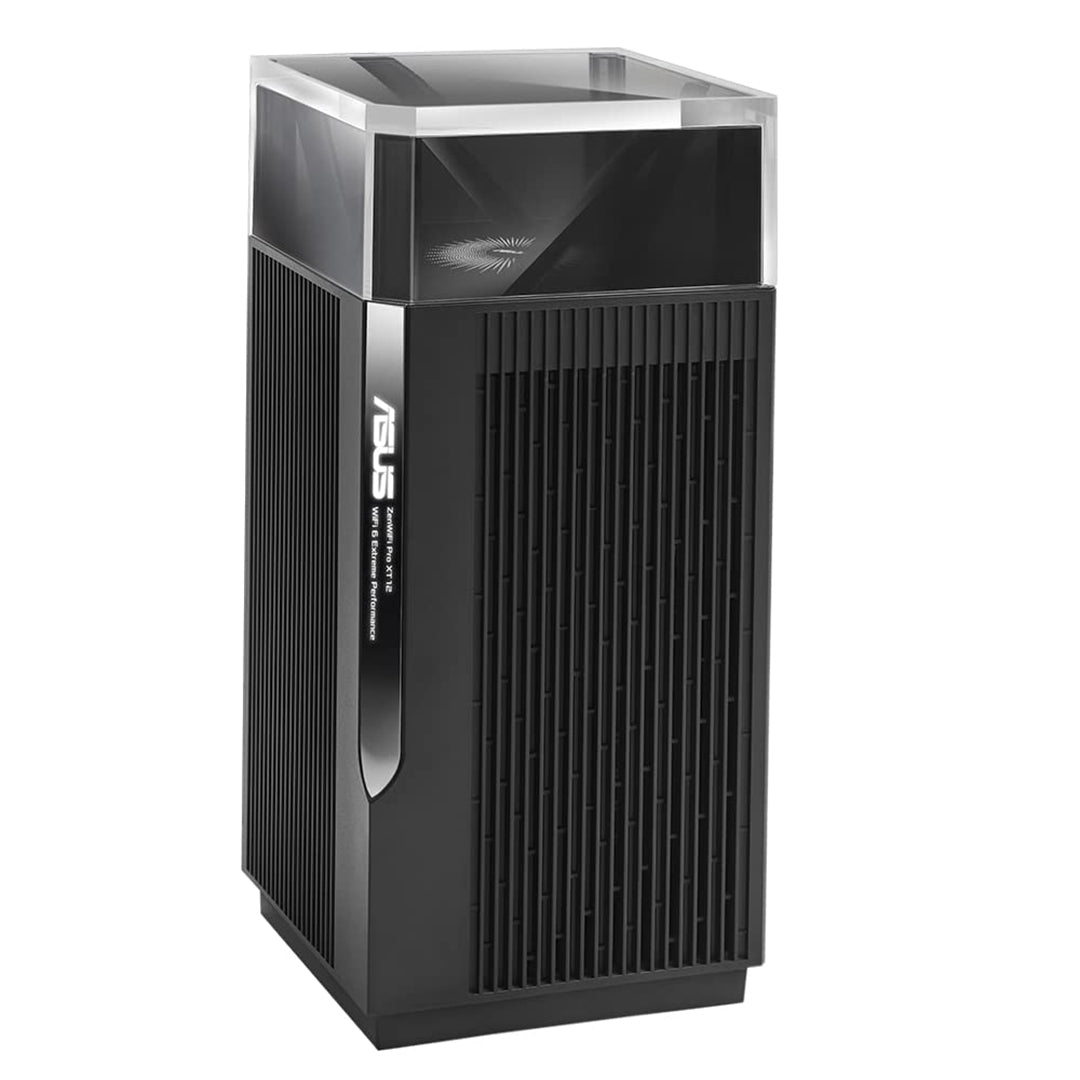

ASUS ZenWiFi Pro XT12
Model Name
XT12(2-PK)
XT12(1-PK)
XT12(1-PK)
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6
Product Segment
AX11000 ultimate AX performance : 1148+4804+4804Mbps
WiFi Data Rate
802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 600 Mbps
WiFi 5 (802.11ac) : up to 1000 Mbps
WiFi 5 (802.11ac) : up to 4333 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps
WiFi 6 (802.11ax) (5GHz-1) : up to 4804 Mbps
WiFi 6 (802.11ax) (5GHz-2) : up to 4804 Mbps
Antenna
internal antenna x 10
Transmit / Receive
2.4GHz 4x4
5GHz-1 4x4
5GHz-2 4x4
5GHz-1 4x4
5GHz-2 4x4
Processor
2.0 GHz quad-core 64bits processor
Memory
256 MB Flash
1GB RAM
1GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.
Operating Frequency
2.4G Hz, 5 GHz-1, 5 GHz-2
Operating Mode
Wireless router mode
Repeater mode
Access point mode
Media bridge mode
Repeater mode
Access point mode
Media bridge mode
I/O Ports
RJ45 for 2.5G BaseT for WAN x 1, RJ45 for 2.5G BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 2
Buttons
WPS Button, Reset Button, Power Switch
LED Indicator
Power x 1
Status x 1
Status x 1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
DC Output : 19 V with max. 2.37 A current / 19.5 V with max. 2.31 A current
Package Content
ZenWiFi Pro XT12
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card
Product Weight (g)
1500 g
Product Dimensions
115 x 115 x 241 mm
115 x 115 x 241mm
115 x 115 x 241mm
AiMesh
AiMesh
• Primary AiMesh Router
• AiMesh Node
• Primary AiMesh Router
• AiMesh Node
Parental Control
"Allow you to block access to unwanted websites and apps."
Router APP
APP: ASUS Router APP
Guest Network
Support Guest Network
• Maximum Guest Network Rule : Max 9 rules
• Maximum Guest Network Rule : Max 9 rules
Security
WPA2-PSK, WPA-PSK, WPA-Enterprise , WPA2-Enterprise , WPA3-Personal, WPS support
WPS
Let's Encrypt
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
WPS
Let's Encrypt
Firewall
• Maximum Firewall Keyword Filter : Max 64 rules
• Maximum Firewall Network Service Filter : Max 32 rules
• Maximum Firewall URL Filter : Max 64 rules
AiProtection
AiProtection Pro
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking
VPN
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Client Open VPN
VPN Client PPTP
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
Traffic Control
Adaptive QoS
Traffic Monitor
Traffic Analyzer
Traffic Monitor
Traffic Analyzer
WAN
Dual WAN
WAN Aggregation
DMZ
DDNS
WAN Aggregation
DMZ
DDNS
LAN
IGMP Snooping
IPTV
LAN Link Aggregation
Wake on LAN (WOL)
IPTV
LAN Link Aggregation
Wake on LAN (WOL)
Wireless
UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
WiFi MAC Address Filter
• Maximum MAC Filters : Max 64 rules
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming
Administration
Diagnosis Tools
Feedback System
System Log
Feedback System
System Log
Warranty
