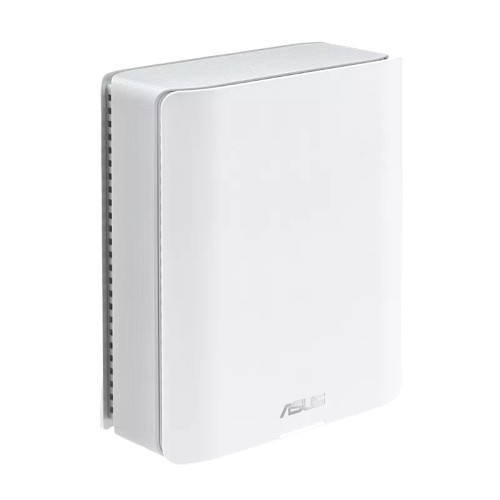

ASUS ZenWiFi BT10 (1 PACK) Tri-band WiFi 7 Smart AiMesh Extendable Router (3Y) - 4711387429853

Model Name

BT10(W-2-PK)



Network Standard

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 6E (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6



Product Segment

BE18000 ultimate BE performance : 688+5764+11529 Mbps



WiFi Data Rate

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

WiFi 7 (802.11be) (6GHz): up to 11529 Mbps



Antenna

Internal antennas x 8



Transmit / Receive

2.4GHz 2x2

5GHz 4x4

6GHz 4x4



Processor

2.0GHz quad-core processor



Memory

RAM 2GB , Flash 256MB



Boosts Speed

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160/320 MHz bandwidth



Operating Frequency

2.4 GHz

5 GHz

6 GHz



Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode



I/O Ports

10G WAN/LAN x 1

10G LAN x 1

1G WAN/LAN x 1

USB 3.0 x1



Buttons

WPS button, Reset button, Power switch



LED Indicator

Power x 1



Power Supply

AC Input : 110V~240V(50~60Hz)

DC Output : 12V with max. 3A current



Package Content

ZenWiFi BT10

RJ45 cable

Power adapter

Warranty card

Quick start guide



Product Dimensions

159 x 72 x 186 mm



Remark

Content may vary in different regions and packages.



AiMesh

AiMesh

• Primary AiMesh Router

• AiMesh Node



Parental Control

"Allow you to block access to unwanted websites and apps."

Web & Apps Filters

Time Scheduling

Reward

Parental Control - Safe Browsing

Customized Internet Schedule



Router APP

APP: ASUS Router APP



Guest Network

"The Guest Network provides Internet connection for guests but restricts access to your local network."

Support Guest Network



Security

AiProtection

VPN

WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise

WPS

Let's Encrypt

DNS-over-TLS

Security Scan

Firewall



AiProtection

AiProtection Pro

• Router Security Assessment

• Malicious Site Blocking

• Two-Way IPS

• Infected Device Prevention and Blocking



VPN

Instant Guard

VPN Client L2TP

VPN Client Open VPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server Open VPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion



Traffic Control

Adaptive QoS

• Bandwidth Monitor

• Bandwidth Limiter

Traditional QoS

Traffic Monitor

Traffic Analyzer

• Website History



WAN

Dual WAN

3G / 4G LTE Dongle

4G / 5G Auto Mobile Tethering

Port Forwarding

Port Triggering

DMZ

DDNS



LAN

DHCP Server

IGMP Snooping

IPTV

LAN Link Aggregation

Manually Assign IP Address

Wake on LAN (WOL)



Wireless

MU-MIMO

UTF-8 SSID

WiFi MAC Address Filter

Wireless Scheduler

Airtime Fairness

RADIUS Client

Universal Beamforming

Explicit Beamforming



USB application

4G / 5G Auto Mobile Tethering

HDD Hibernation

Safely Remove Disk

Download Master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder Privileges



Administration

Diagnosis Tools

Feedback System

System Log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update



Smart Home

Support Google Assistant
