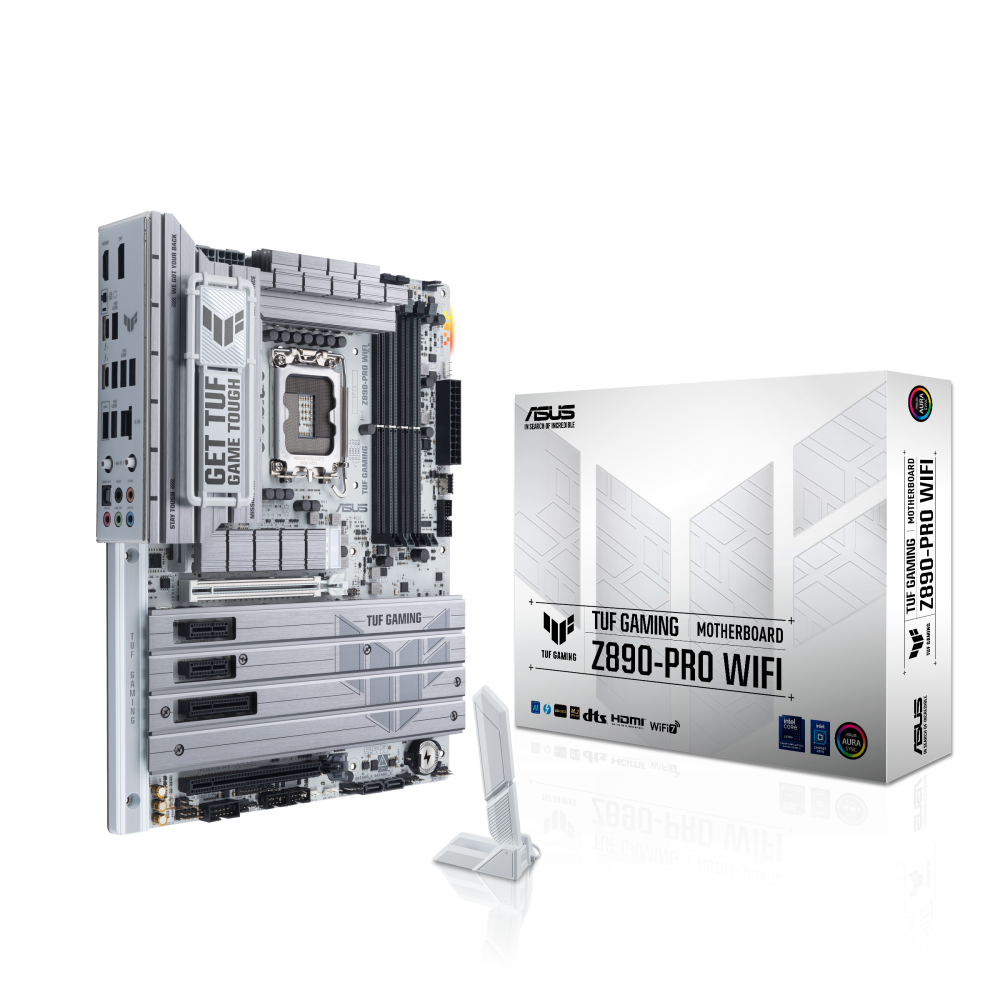

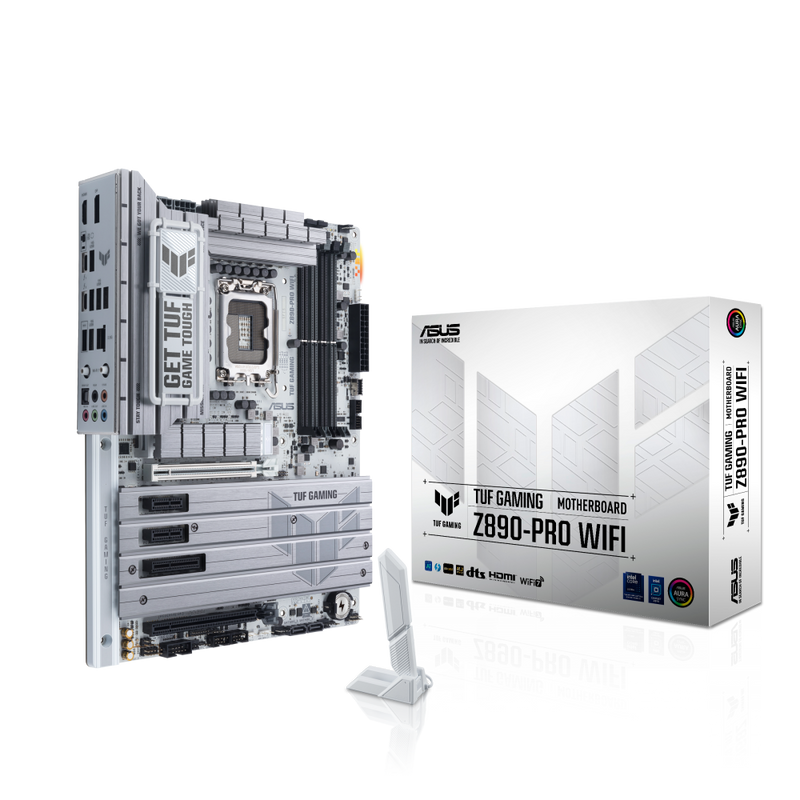

ASUS TUF GAMING Z890-PRO WIFI Motherboard - 197105762640

CPU

Support Intel® Core™ Ultra Processors (Series 2), LGA1851

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*

Dual channel memory architecture

DIMM Fit

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III(AEMPIII)

Graphics

1 x DisplayPort**

1 x HDMI™ port***

2 x Intel® Thunderbolt™ 4 ports (USB Type-C®)

Expansion Slots

Intel® Core™ Ultra Processors(Series 2)*

1 x PCIe 5.0 x16 slot

Intel® Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

1 x PCIe 4.0 x4 slot

2 x PCIe 4.0 x1 slots

Storage

Total Supports 4 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Ethernet

1 x Intel® 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4

USB

Rear USB (Total 8 ports)

2 x Thunderbolt™ 4 ports (2 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps (supports USB Type-C® with up to 30W PD/PPS Fast-charge )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x M.2 Q-Slide package

2 x M.2 rubber packages

1 x Screw package for M.2 SSD

1 x TUF GAMING sticker

1 x TUF GAMING removable nameplate

Documentation

1 x Quick start guide

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
