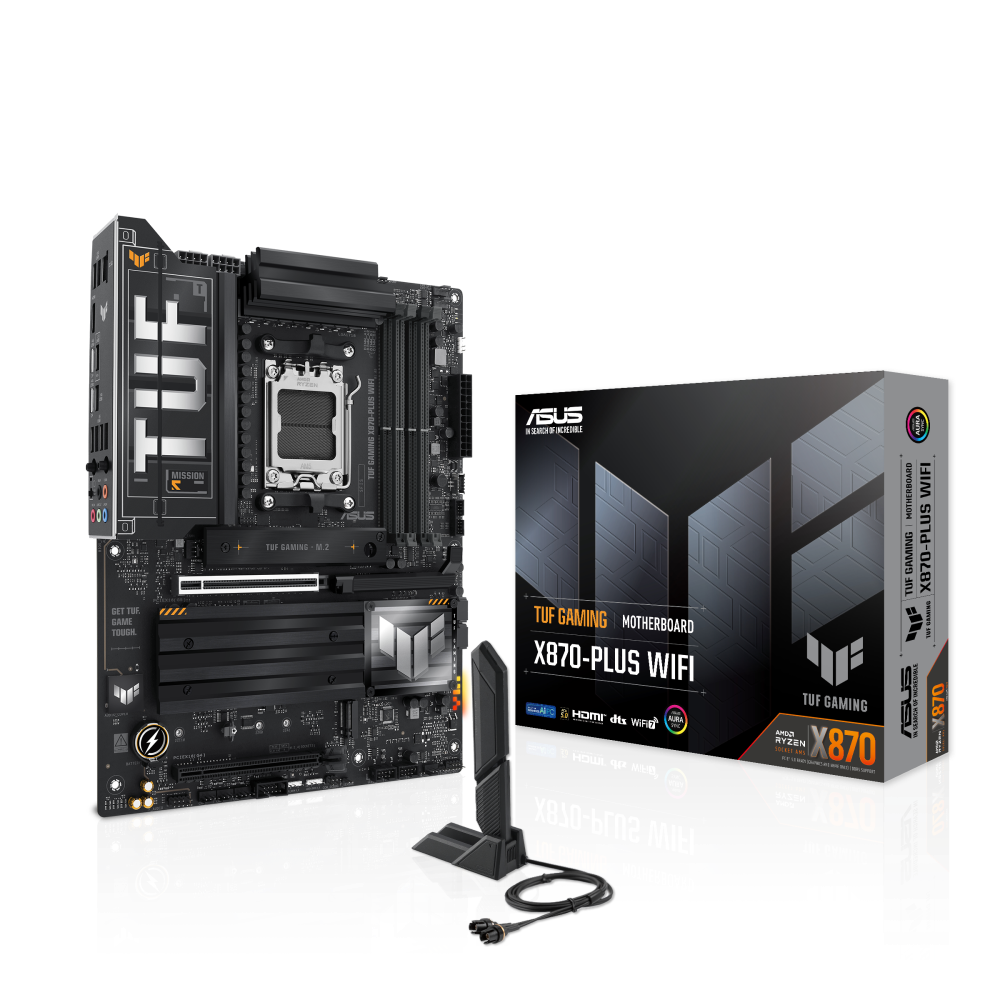

ASUS TUF GAMING X870-PLUS WIFI Motherboard - 197105723610

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD X870 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors

ECC and Non-ECC, Un-buffered DIMM

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics

1 x HDMI™ port

2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot not support

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

Ethernet

1 x Realtek 2.5Gb Ethernet

TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7*

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4

USB

Rear USB (Total 10 ports)

2 x USB4® (40Gbps) ports (2 x USB Type-C®)

3 x USB 10Gbps ports (3 x Type-A)

4 x USB 5Gbps ports (4 x Type-A)

1 x USB 2.0 port (1 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD Fast-charge)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

2 x M.2 rubber packages

1 x Screw package for M.2 SSD

1 x TUF GAMING sticker

Documentation

1 x Quick start guide

Operating System

Windows 11

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return



* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
