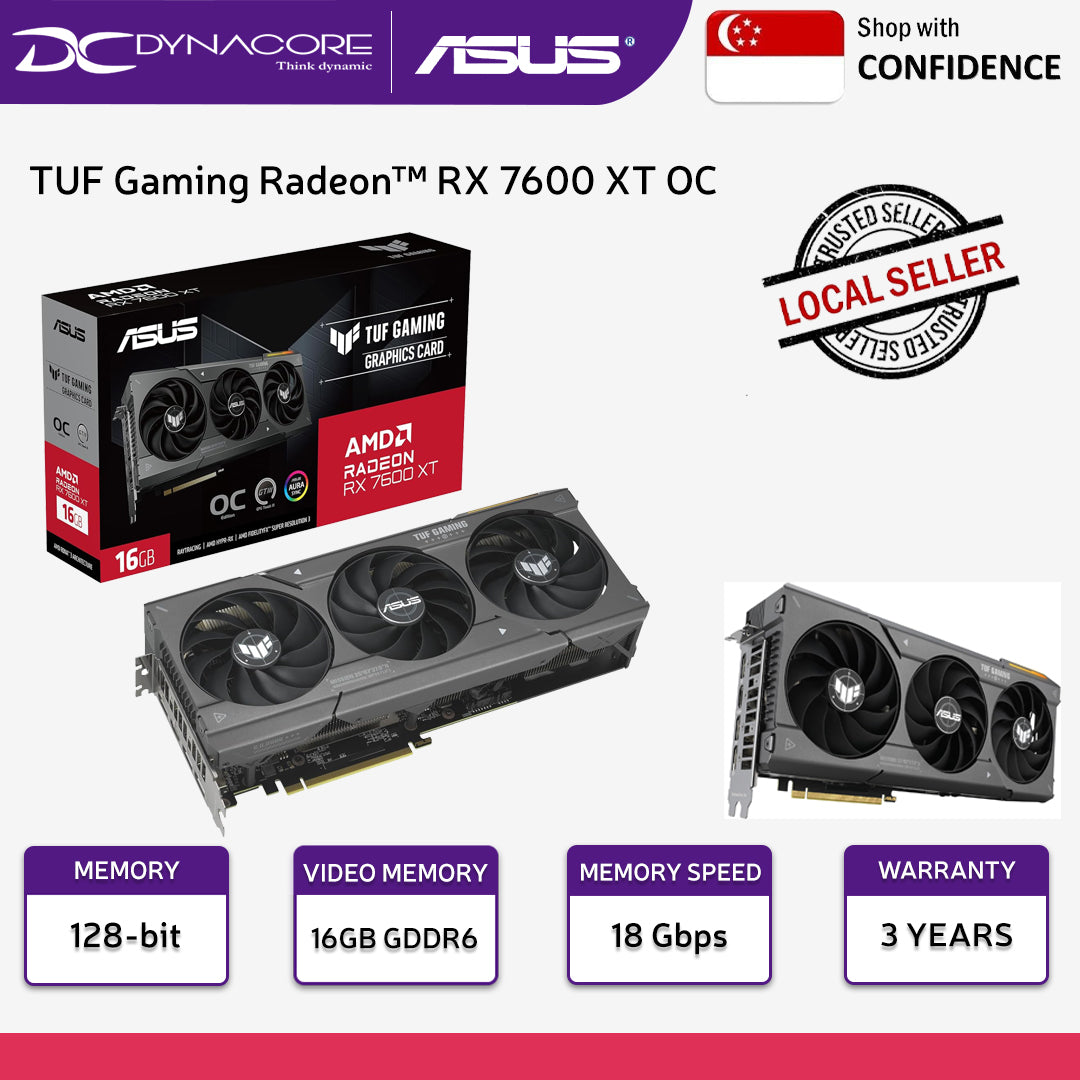

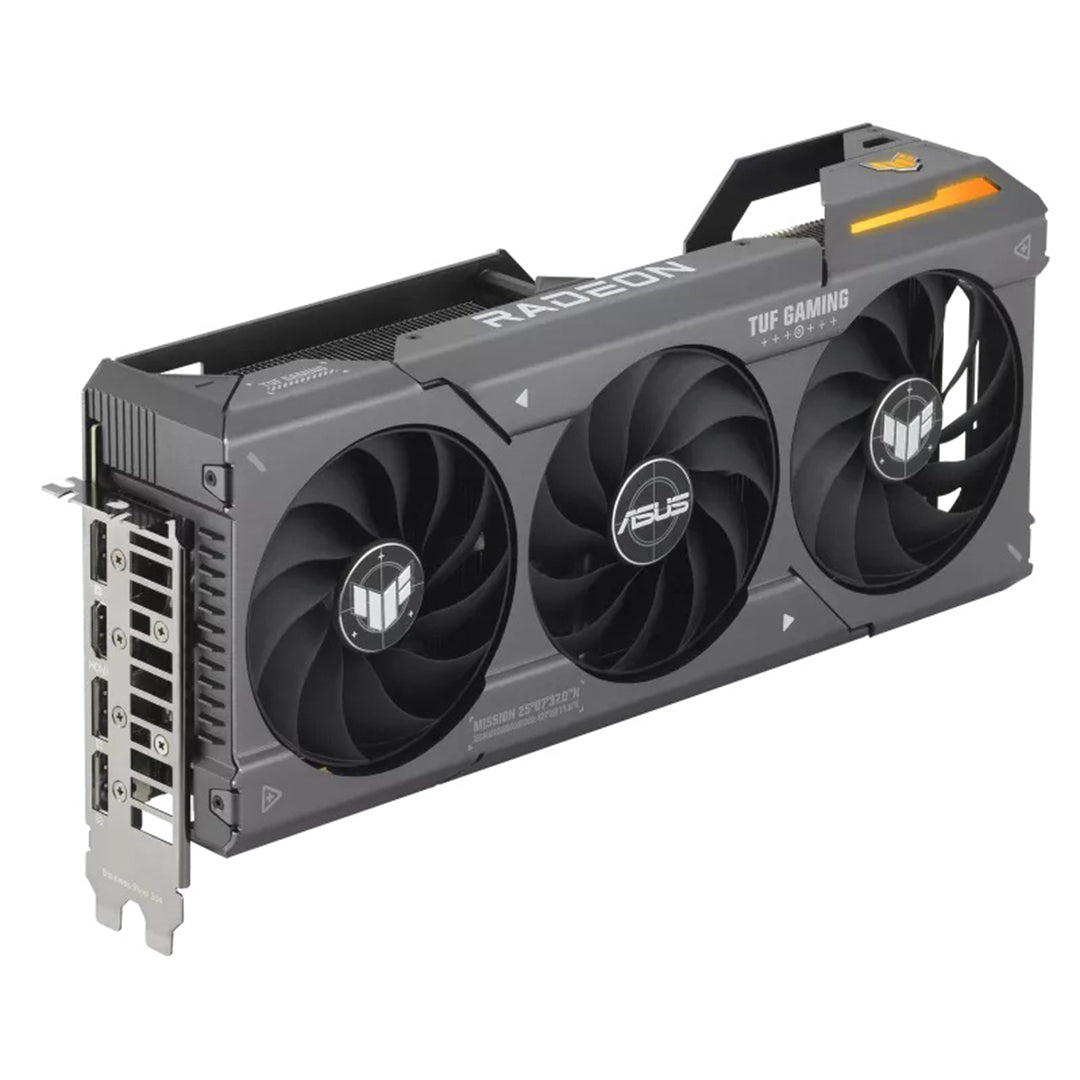

ASUS TUF Gaming Radeon™ RX 7600 XT OC Edition 16GB GDDR6 - 197105452299

Model
TUF-RX7600XT-O16G-GAMING

Graphic Engine
AMD Radeon™ RX 7600 XT

Bus Standard
PCI Express 4.0

OpenGL
OpenGL®4.6

Video Memory
16GB GDDR6

Engine Clock
OC mode : up to 2830 MHz (Boost Clock)/up to 2559 MHz (Game Clock)
Default mode : up to 2810 MHz (Boost Clock)/up to 2539 MHz (Game Clock)

Stream Processors
2048

Memory Speed
18 Gbps

Memory Interface
128-bit

Resolution
Digital Max Resolution 7680 x 4320

Interface
Yes x 1 (Native HDMI 2.1)
Yes x 3 (Native DisplayPort 2.1)
HDCP Support Yes (2.3)

Maximum Display Support
4

NVlink/ Crossfire Support
No

Accessories
1 x TUF certificate of Reliability
1 x TUF Gaming Graphics Card Holder
1 x TUF Velcro Hook & Loop
1 x Collection card
1 x Thank you card
1 x Speedsetup Manual

Software
ASUS GPU Tweak III & Drivers: please download all software from the support site.

Dimensions
300.2 x 142.75 x 59.2 mm
11.81 x 5.6 x 2.33 inch

Recommended PSU
600W

Power Connectors
2 x 8-pin

Slot
2.96 Slot

AURA SYNC
ARGB

Note
* Our wattage recommendation is based on a fully overclocked GPU and CPU system configuration. For a more tailored suggestion, please use the “Choose By Wattage” feature on our PSU product page: https://rog.asus.com/event/PSU/ASUS-Power-Supply-Units/index.html
* All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products.
* ‘Game Clock’ is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.
* ‘Boost Clock’ is the maximum frequency achievable on the GPU running a bursty workload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to: thermal conditions and variation in applications and workloads.
* If two DisplayPort 2.1 monitors are connected, a third monitor will be limited to DisplayPort 1.4 functionality.

3 Years
