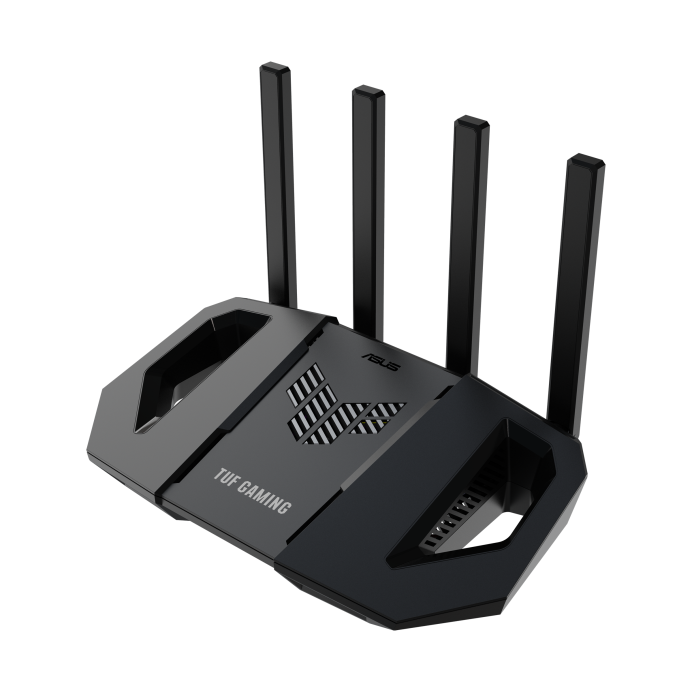

Asus TUF Gaming BE3600 Dual Band WiFi 7 Gaming Router - 197105769687

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6

BE3600 ultimate BE performance : 688+2882 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps

External antenna x 4

2.4GHz 2x2
5GHz 2x2

2.0 GHz quad-core processor

256 MB Flash
1 GB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

2.4 GHz
5 GHz

Wireless router mode
Access point mode
Media bridge mode

1x 2.5G for WAN/LAN,
1x 1G for WAN/LAN,
3 x 1G LAN,
USB 3.2 Gen 1 x 1

WPS Button, Reset Button, Power Button

Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current

TUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

561g

274 x 168 x 205 mm

AiMesh
• Primary AiMesh Router
• AiMesh Node

Game Boost / Acceleration
Mobile Game Mode
Gaming Port

"Allow you to block access to unwanted websites and apps."
Time Scheduling
Safe Browsing
Customized Internet Schedule

"The Guest Network provides Internet connection for guests but restricts access to your local network."
• Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
Guest Network Connection Time Limit

AiProtection
VPN
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
• Maximum Firewall Keyword Filter : 64
• Maximum Firewall Network Service Filter : 32
• Maximum Firewall URL Filter : 64

AiProtection
• Router Security Assessment
• Malicious Site Blocking
• Two-Way IPS
• Infected Device Prevention and Blocking

Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion

Adaptive QoS
• Bandwidth Monitor
• Bandwidth Limiter
-- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
-- Maximum Traditional QoS Rule : 32
Traffic Monitor
• Real-time Traffic Monitor
• Wired Traffic Monitor
• Wireless Traffic Monitor
Traffic Analyzer
• Traffic Analysis Period : Daily, Weekly, Monthly
• Website History

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
3G / 4G LTE dongle
Port forwarding
• Maximum Port Forwarding Rule : 64
Port triggering
• Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

DHCP Server
IGMP Snooping
IPTV
Manually Assign IP Address
• Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)

UTF-8 SSID
WiFi MAC Address Filter
• Maximum MAC Filters : 64
Wireless Scheduler
Airtime Fairness
RADIUS Client
Universal Beamforming
Explicit Beamforming

File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
Download Master
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges

Configuration Backup and Restore
Diagnosis tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
