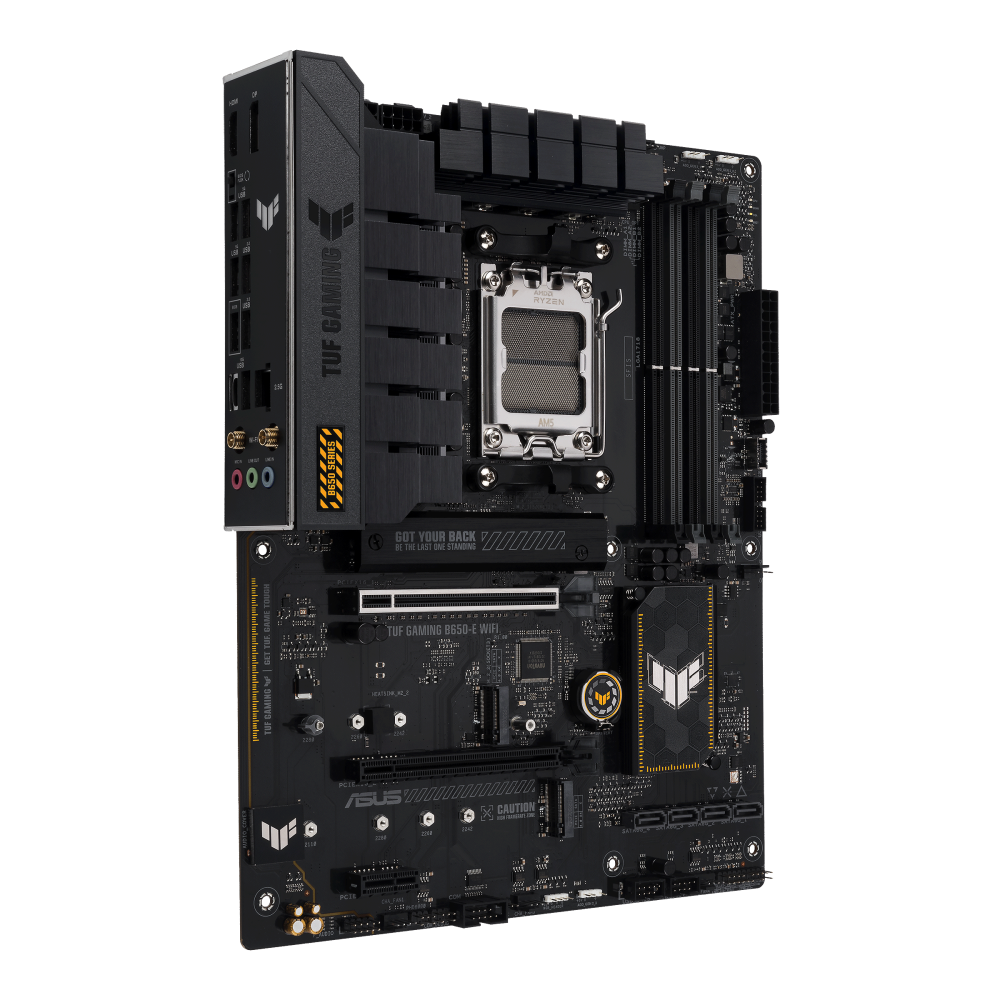

ASUS TUF GAMING B650-E WIFI MOTHERBOARD - 197105423084

CPU

AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

Chipset

AMD B650

Memory

4 x DIMM, Max. 192GB, DDR5

8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

Graphics

1 x DisplayPort

1 x HDMI® port

Expansion Slots

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 4.0/3.0 x16 slot(s)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B650 Chipset

1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)

1 x PCIe 4.0/3.0 x1 slots

USB

Rear USB (Total 8 ports)

2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C®)

3 x USB 5Gbps port(s) (3 x Type-A)

3 x USB 2.0 port(s) (3 x Type-A)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows® 11

Windows® 10 64-bit

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
