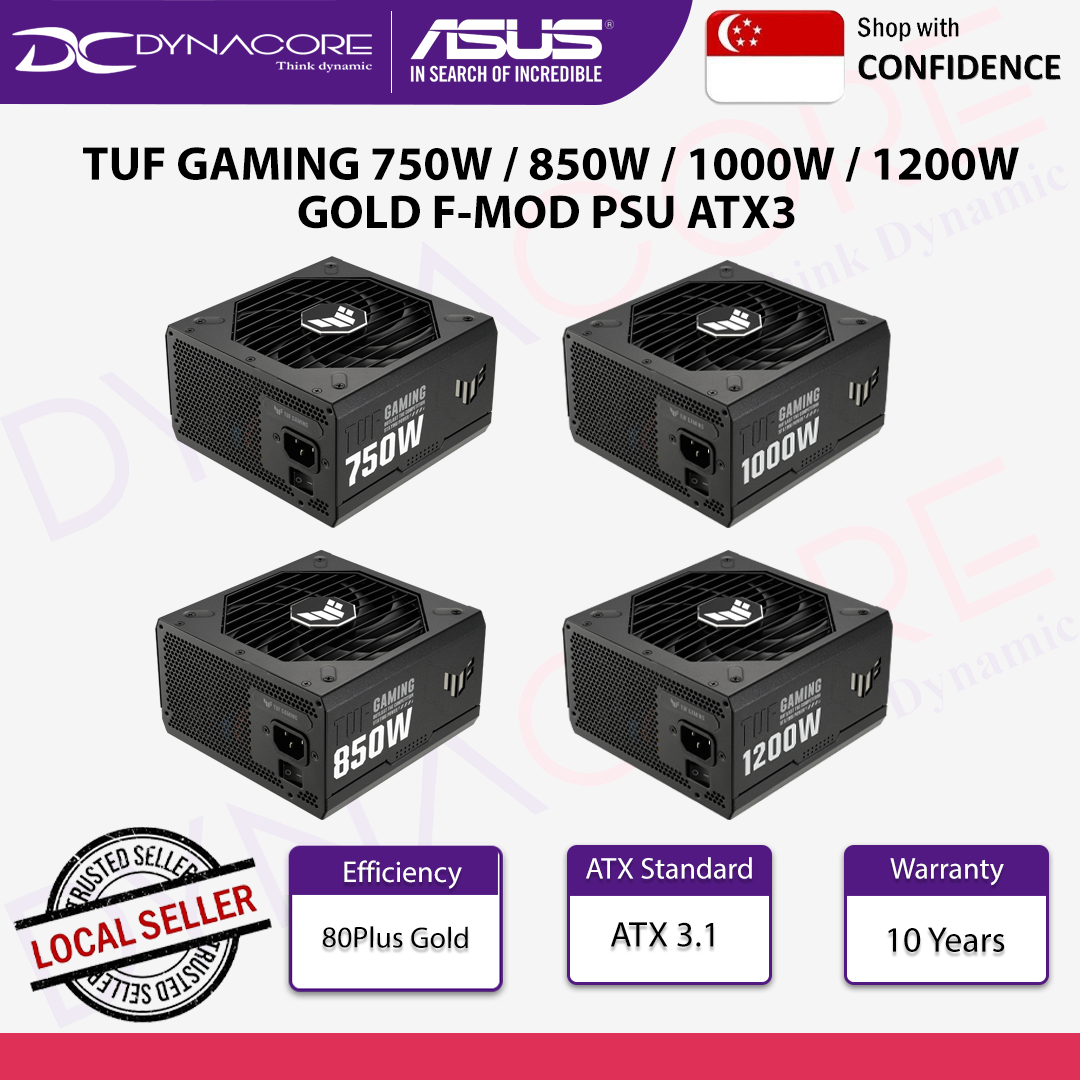

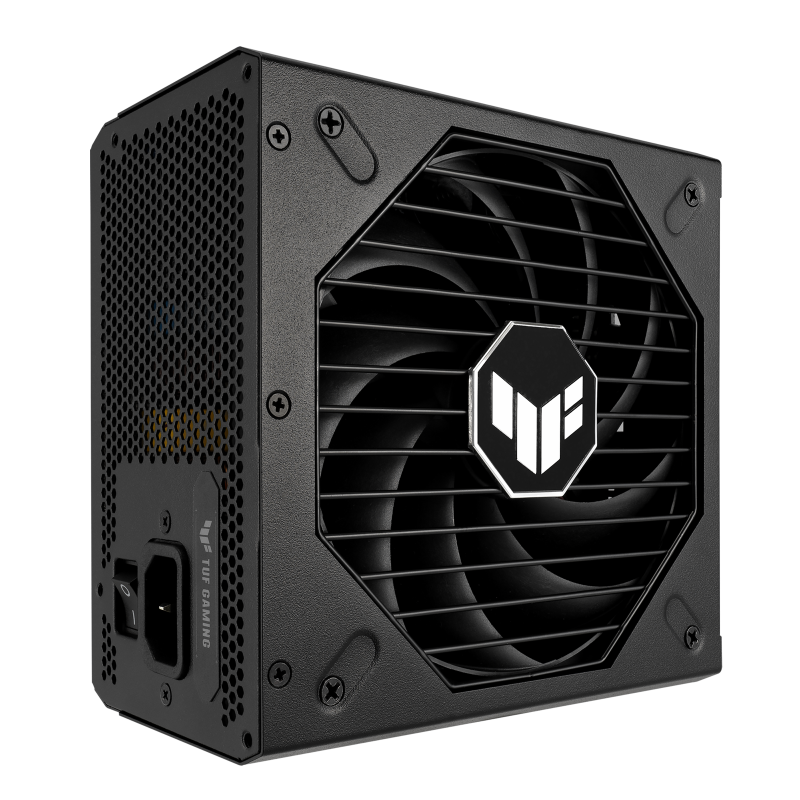

ASUS TUF GAMING 750W / 850W / 1000W / 1200W GOLD F-MOD PSU ATX3 - 4711081786733

Capacitors and chokes pass demanding tests to achieve Military-grade Certification.

Dual ball fan bearings can last up to twice as long as sleeve bearing designs.

A protective PCB coating protects against moisture, dust, and extreme temperatures.

An 80 Plus Gold Certification is the result of Japanese capacitors and other premium components.

Axial-tech fan design features a smaller fan hub that facilitates longer blades and a barrier ring that increases downward air pressure.

Fully modular etched cables keep your rig neat and tidy.

10-year warranty included,

For Compatibly of the product, please visit the respective product web site.

Compatibility issues are not covered under warranty or return.

Intel Form Factor

ATX12V

PFC Type

Active PFC

ATX Standard

ATX 3.1

Dimensions

150 x 150 x 86 mm

Efficiency

80Plus Gold

MTBF

>120,000 hrs @ 40°C

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

25A25A83.3A 0.8A 3A

Combined Load

130W 130W 1000W 9.6W 15W

Total Output

750W/850W/1000W/1200W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 4

SATA x 5

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (610mm)

CPU Cable x 2 (650mm)

PCI-E Gen 5.1 16-pin Cable x 1 (675mm)

PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (675mm)

PCI-E 1-to-1 Cable x 2 (675mm)

SATA 1-to-2 Cable x 1 (400+120mm)

SATA 1-to-3 Cable x 1 (400+120+120mm)

Peripheral 1-to-4 Cable x 1 (400+150+150+150mm)

TUF Gaming Cable Tie x 3

User Manual x 1

Weight

2.48kg (single PSU)

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
