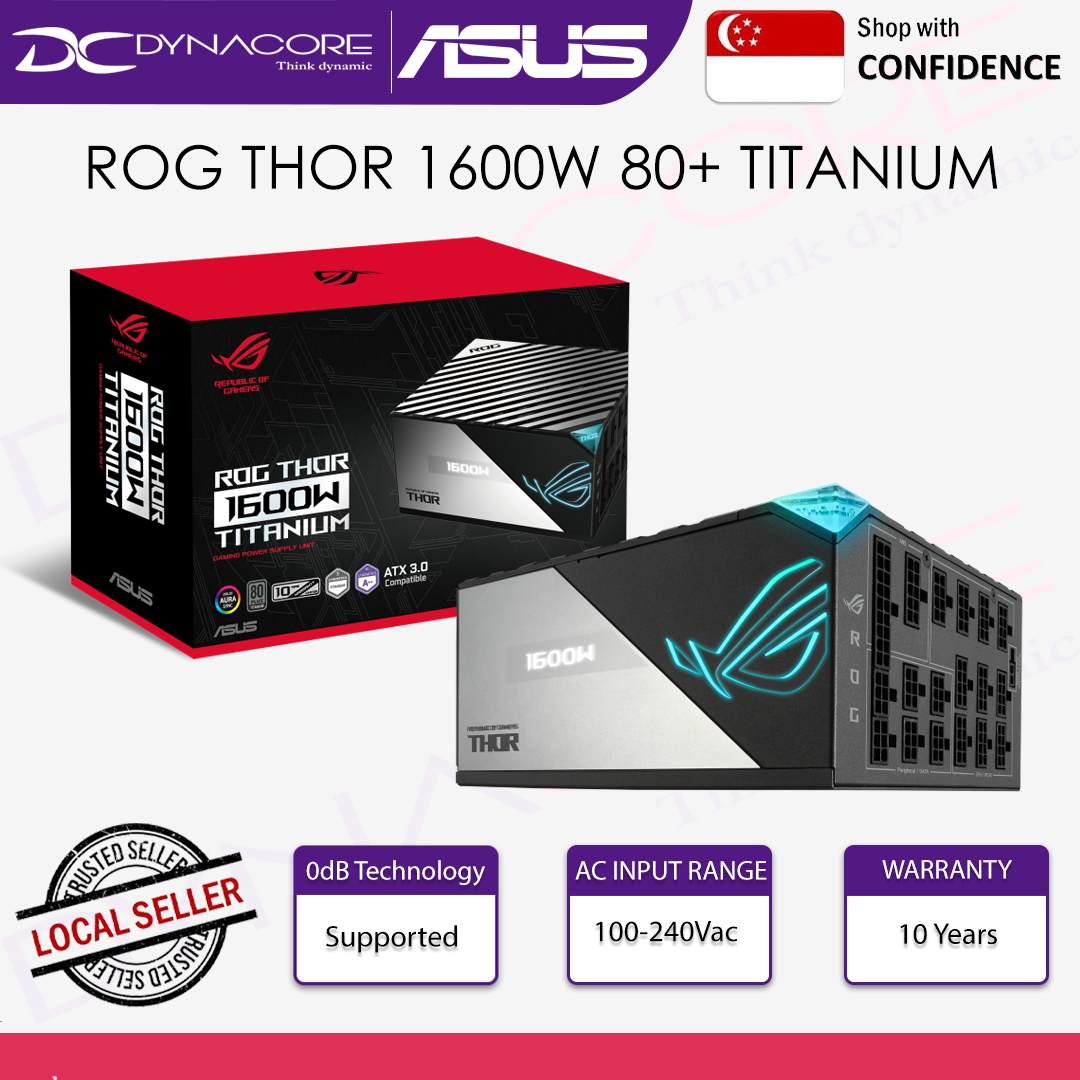

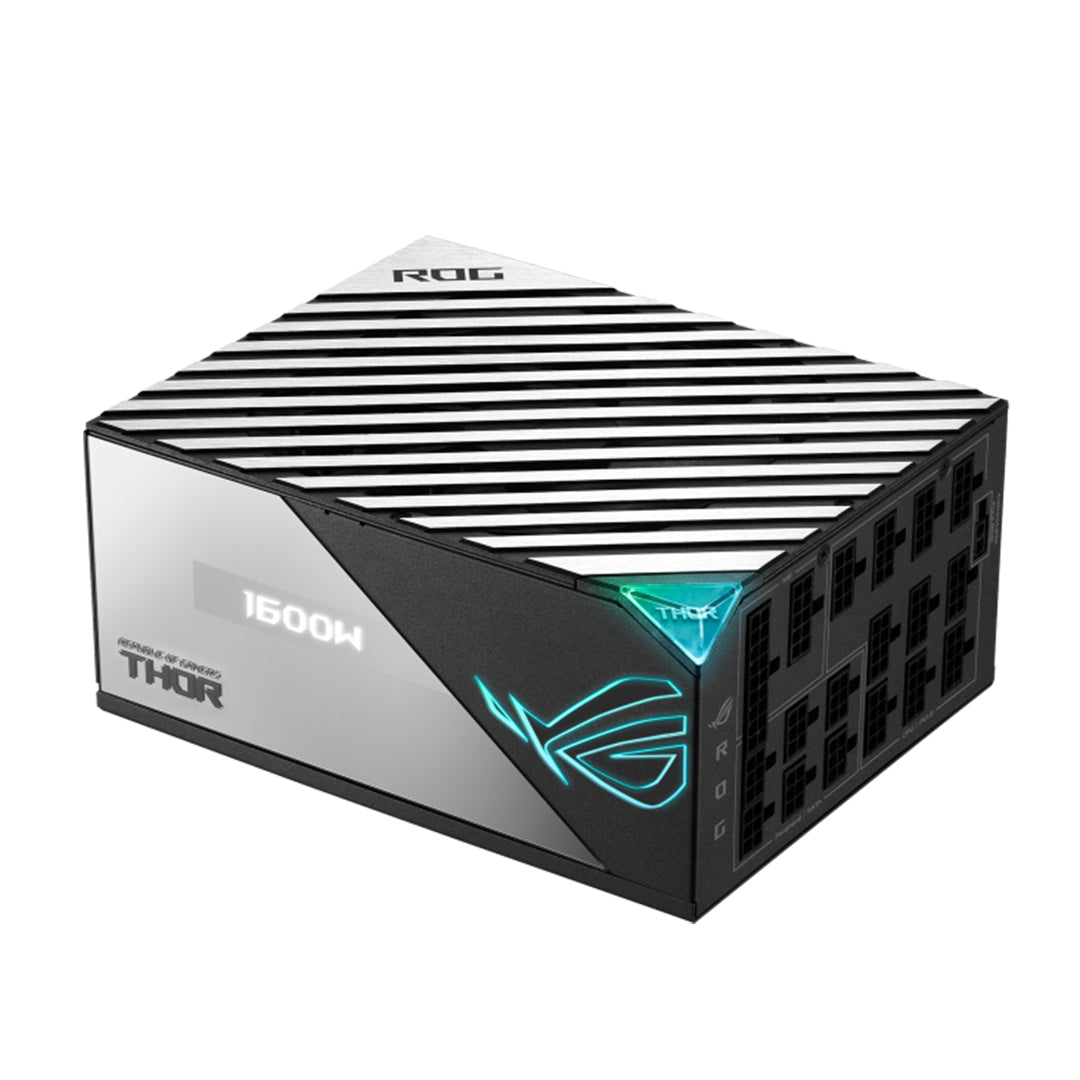

ASUS ROG THOR 1600W 80+ TITANIUM GAMING PSU - 195553198394

PFC Type

Active PFC

Dimensions

190 x 150 x 86 mm

Efficiency

80Plus Titanium

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

Thermal Features

ROG Thermal Solution

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 133.3A 0.3A 3A

Combined Load

100W 100W 1600W 3.6W 15W

Total Output

1600W (115V-240V). 1300W (100V-115V)

Cable Connectors

MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (component side)
PCI-E 6+2-pin x 10
SATA x 12
PERIPHERAL x 6

Package Contents

Power Cord x 1
Motherboard Power Cable x 1 (600mm)
CPU Cable x 2 (650mm)
16-pin PCI-E Cable x 1 (675mm)
PCI-E 1-to-1 Cable x 6 (675mm)
PCI-E 1-to-2 Cable x 2 (675+75mm)
SATA 1-to-4 Cable x 3 (400+120+120+120mm)
Peripheral 1-to-2 Cable x3 (450+120mm)
Addressable RGB Cable x 1 (800mm)
ROG sticker x 1
ROG cable tie x 6
Chassis Screws Package x 1
Cable Tie x 12
User Manual x 1

Weight

2.69kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A++

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
