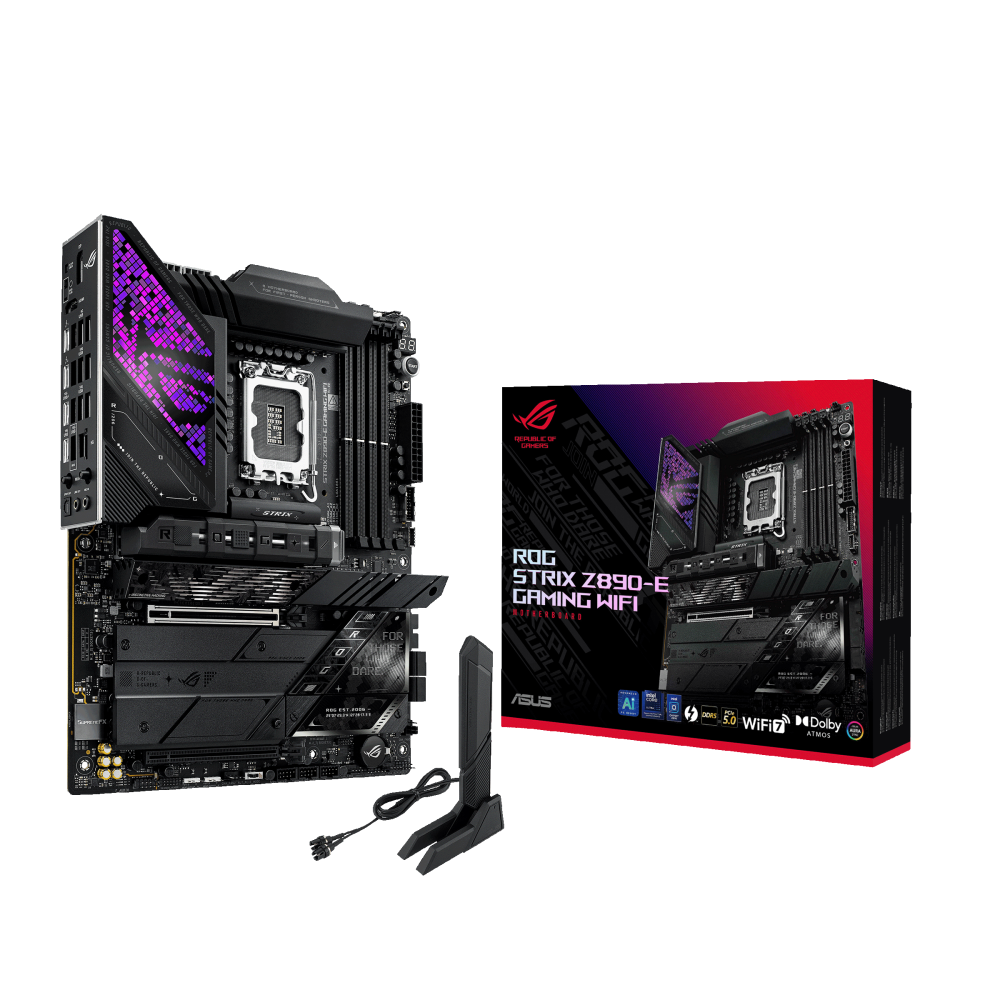

ASUS ROG STRIX Z890-E GAMING WIFI MOTHERBOARD - 197105756144

CPUIntel® Socket LGA1851 for Intel® Core™ Ultra Processors(Series 2)

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0

ChipsetIntel® Z890 Chipset

Memory4 x DIMM slots, max. 256GB, DDR5

Support up to 9200+MT/s (OC), Non-ECC, Clocked Unbuffered DIMM (CUDIMM)

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

Supports DIMM Flex

NitroPath DRAM Technology

DIMM Fit

ASUS Enhanced Memory Profile III (AEMP III)

Graphics1 x DisplayPort

1 x HDMI® port

2 x Intel® Thunderbolt™ 4 support DisplayPort and Thunderbolt™ video outputs

Expansion SlotsIntel® Core™ Ultra Processors(Series 2)

1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)

Intel® Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

StorageTotal supports 7 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors(Series 2)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

Intel® Z890 Chipset

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_6 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_7 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Ethernet1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth® v5.4

USBRear USB (Total 14 ports)

2 x Thunderbolt™ 4 (2 x USB Type-C®)

9 x USB 10Gbps ports (7 x Type-A + 1 x USB Type-C®* + 1 x USB Type-C® with up to 30W PD Fast-charge)

3 x USB 5Gbps ports (3 x Type-A)

Front USB (Total 11 ports)

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support additional 4 USB 5Gbps ports

3 x USB 2.0 headers support additional 6 USB 2.0 ports

BIOS256 Mb  Flash ROM, UEFI AMI BIOS

ManageabilityWOL by PME, PXE

AccessoriesCables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS Wi-Fi Q-Antenna

1 x Cable ties pack

1 x M.2 Q-Latch package

2 x M.2 Q-Slides

1 x ROG key chain

1 x ROG Strix stickers

7 x M.2 Rubbers

Documentation

1 x Quick start guide

Operating SystemWindows® 11 (22H2 & later)

Form FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
