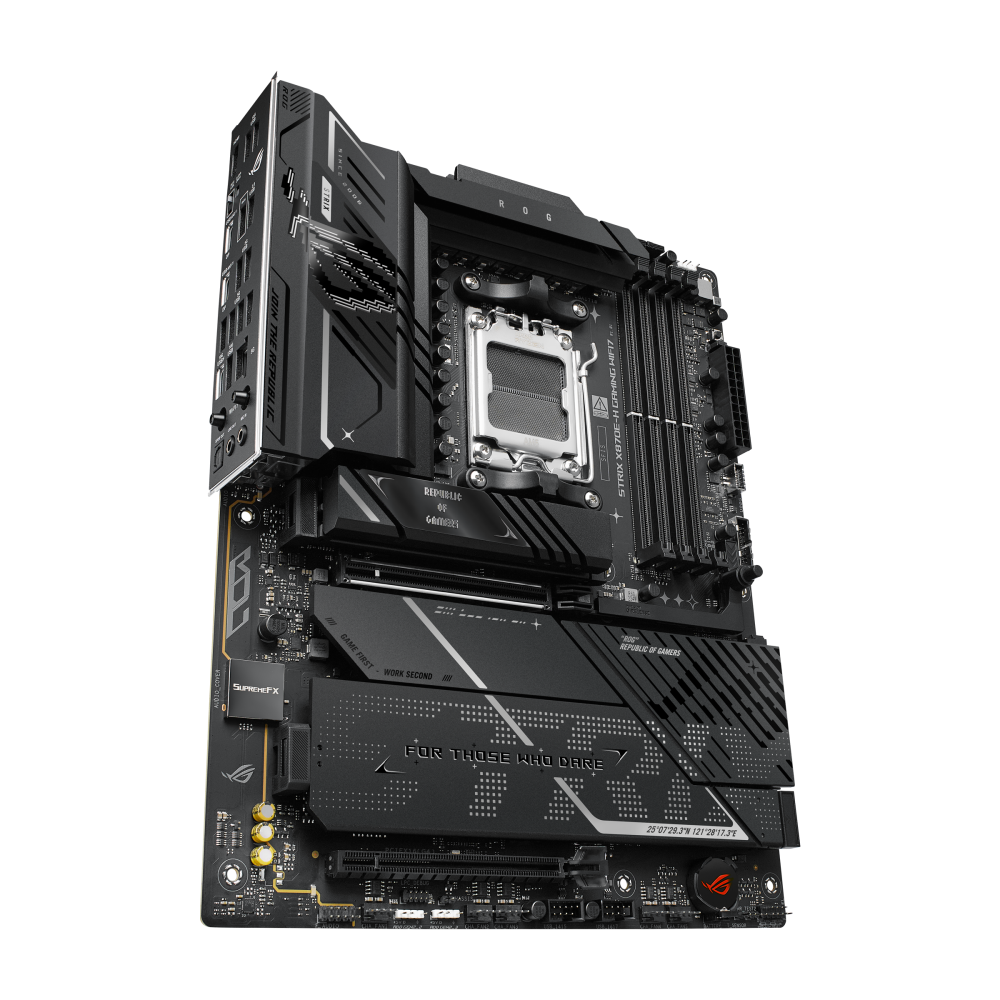

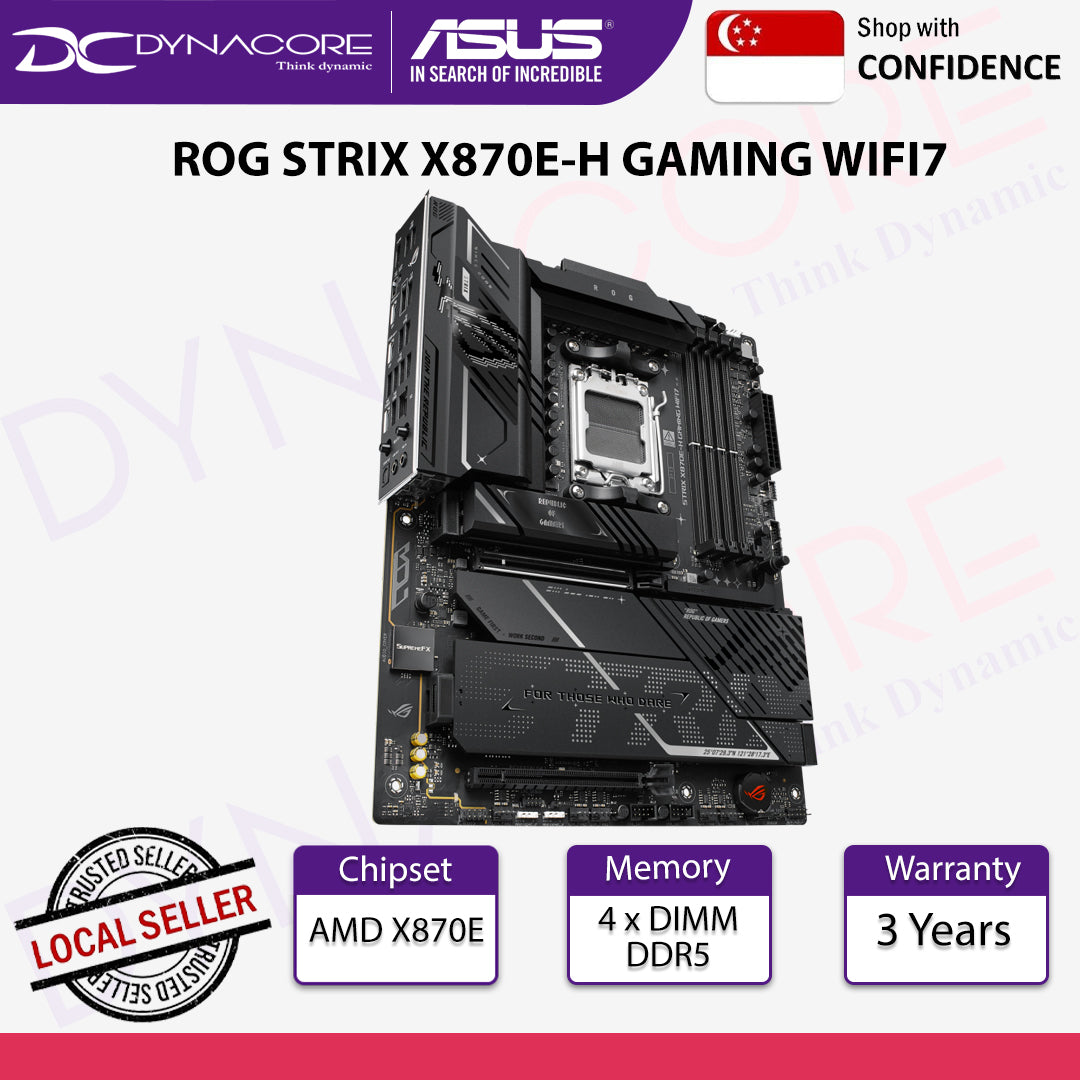

ASUS ROG STRIX X870E-H GAMING WIFI7 MOTHERBOARD - 199291167223

CPUAMD Socket AM5 for AMD Ryzen™ 9000 &

8000 & 7000 Series Desktop Processors

ChipsetAMD X870E

Memory4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™

9000 & 8000 & 7000 Series Processors

Dual channel memory architecture

Supports AMD Extended Profiles for

Overclocking (EXPO™)

Supports DIMM Fit / DIMM Fit Pro

ASUS Enhanced Memory Profile (AEMP)

Graphics1 x HDMI™ port

2 x USB4® (40Gbps) ports support USB

Type-C® display outputs

* Graphics specifications may vary between

CPU types. Please refer to AMD CPU specifications.

Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop

Processors*

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors*

1 x PCIe 4.0 x16 slot (supports x8/x4

mode)

AMD X870E Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

StorageSupports 4 x M.2 slots and 4 x SATA 6Gb/s

ports

AMD Ryzen™ 9000 & 7000 Series Desktop

Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280/22110

(supports PCIe 5.0 x4 mode)*

AMD Ryzen™ 8000 Series Desktop Processors*

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2280/22110 (Not

supports)

AMD X870E Chipset

M.2_3 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports

PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

RAID SupportAMD RAIDXpert2 Technology

Ryzen™ 9000 Series Processors: RAID

0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

* Specifications vary by CPU types.

Ethernet1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7 (Realtek® RTL8922AE)

2x2 Wi-Fi 7* (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth

Bluetooth® v5.4

*Wi-Fi features may vary depending on the

operating system

For

Windows 11, Wi-Fi 7 will require 24H2 or later version for full functions,

Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.

For

Windows 10, only Wi-Fi 6 is supported.

USBRear USB (Total 14 ports)

2 x USB4® (40Gbps) ports  (2 x USB Type-C®)

4 x USB 10Gbps ports (3 x Type-A + 1 x USB

Type-C® with up to 30W PD/PPS Fast-charge)

6 x USB 5Gbps ports (6 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 20Gbps connector (supports USB

AccessoriesCables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package

1 x ROG key chain

1 x ROG Strix stickers

4 x M.2 rubber

Documentation

1 x Quick start guide

Operating SystemWindows 11

Form FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
