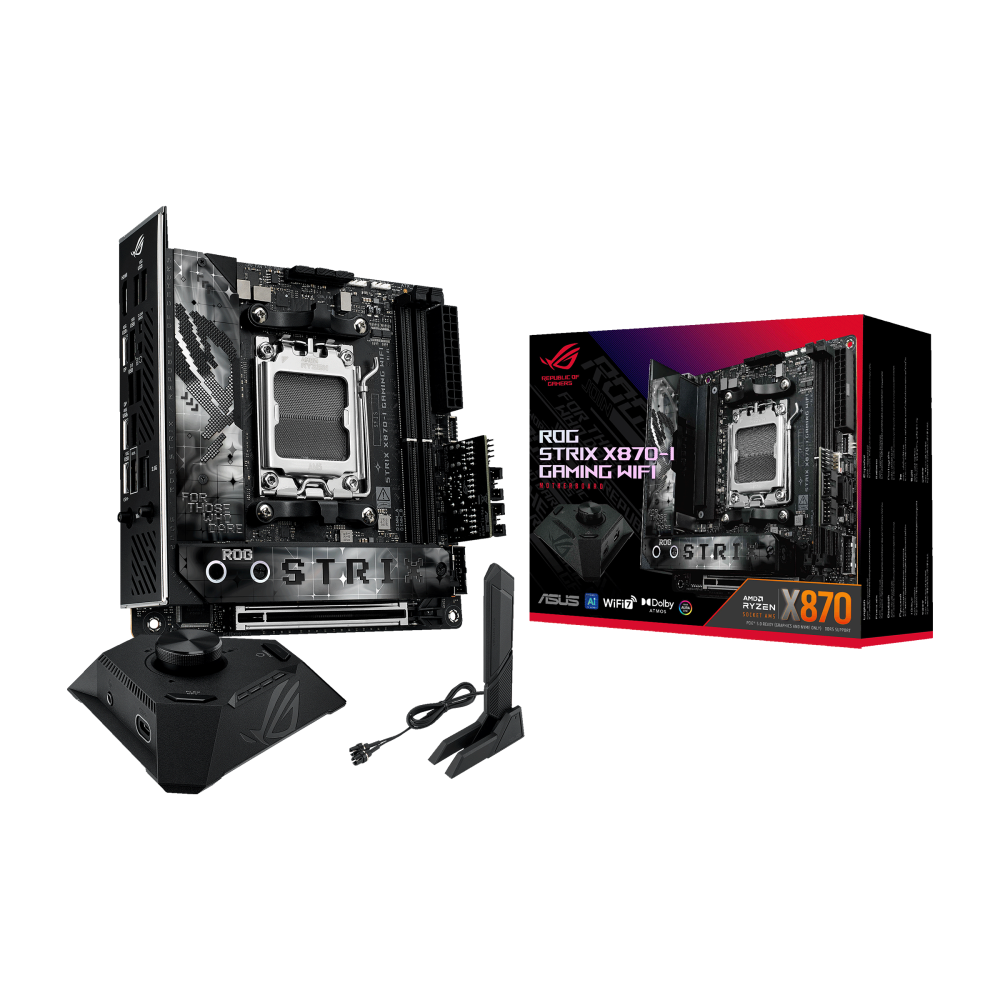

ASUS ROG STRIX X870-I GAMING WIFI MOTHERBOARD - 197105740310

CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

ChipsetAMD X870

Memory2 x DIMM slots, max. 128GB, DDR5

Supports up to

8400+MT/s(OC) with Ryzen™ 9000 Series Processors,

8600+MT/s(OC) with Ryzen™ 8000 Series Processors,

8000+MT/s(OC) with Ryzen™ 7000 Series Processors,

ECC and Non-ECC Un-buffered DIMM

Graphics1 x HDMI™ port

2 x USB4® (40Gbps) ports support USB Type-C® display outputs

Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

StorageSupports 2 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280(supports PCIe 4.0 x4 mode)

AMD X870 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4)

2 x SATA 6Gb/s ports

Ethernet1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth® v5.4

USBRear USB (Total 10 ports)

2 x USB4® (40Gbps) port(s)(2 x USB Type-C®)

5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C®)

3 x USB 2.0 port(s) (3 x Type-A)

Front USB (Total 3 ports)

1 x USB 10Gbps connector (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

* USB Type-C® power delivery output: max. 5V/3A

ROG STRIX HIVE II(Total 2 ports)

2 x USB 10Gbps port ( 1 x Type-A + 1 x USB Type-C®)

ROG FPS Card (Total 3 ports)

2 x USB 2.0 headers additional 3 USB 2.0 ports

BIOS256 Mb Flash ROM, UEFI AMI BIOS

ManageabilityWOL by PME, PXE

AccessoriesCables

1 x Panel cable

1 x ROG USB2.0 splitter cable

2 x SATA 6Gb/s cables

ROG FPS Card

1 x ROG FPS Card

ROG STRIX HIVE II

1 x ROG STRIX HIVE II

1 x USB Type-C® power connection cable

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package(s)

1 x ROG key chain

1 x ROG Strix stickers

1 x M.2 rubber package(s)

Documentation

1 x Quick start guide

Operating SystemWindows® 11 64-bit

Form FactorMini-ITX Form Factor

6.7 inch x 6.7 inch (17 cm x 17 cm)

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
