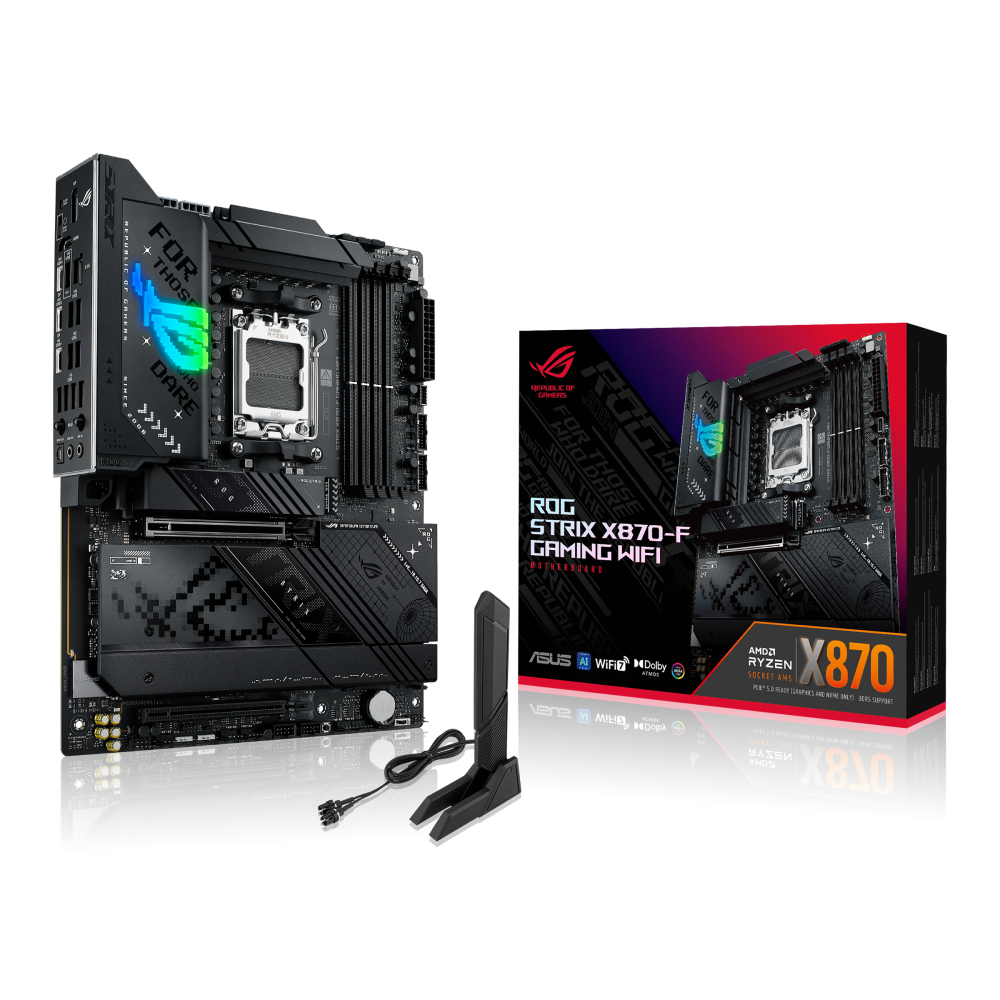

ASUS ROG STRIX X870-F GAMING WIFI MOTHERBOARD - 197105732056

CPUAMD Socket AM5 for AMD Ryzen™ 9000 &

8000 & 7000 Series Desktop Processors

ChipsetAMD X870

Memory4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s(OC) with Ryzen™

9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered

Memory

Graphics1 x DisplayPort

1 x HDMI™ port

2 x USB4® (40Gbps) ports support USB

Type-C® display outputs

Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD X870 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

StorageSupports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)

AMD X870 Chipset

M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

Ethernet1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7 (Qualcomm QCNCM865 or MediaTek MT7927)

2x2 Wi-Fi 7  (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth

Bluetooth® v5.4

USBRear USB (Total 12 ports)

2 x USB4® (40Gbps) ports(2 x USB Type-C® with DP Alt mode)

6 x USB 10Gbps ports (5 x Type-A + 1 x USB Type-C® with up to 30W PD Fast-charge)

4 x USB 5Gbps ports (4 x Type-A)

Front USB (Total 9 ports)

1 x USB 20Gbps connector (supports USB Type-C®)

2 x USB 5Gbps headers support 4 additional USB 5Gbps ports

2 x USB 2.0 headers support 4 additional USB 2.0 ports

BIOS256 Mb Flash ROM, UEFI AMI BIOS

ManageabilityWOL by PME, PXE

AccessoriesCables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package

1 x M.2 Q-Slide package

1 x ROG key chain

1 x ROG Strix stickers

4 x M.2 rubber packages

Documentation

1 x Quick start guide

Operating SystemWindows 11

Form FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return



* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
