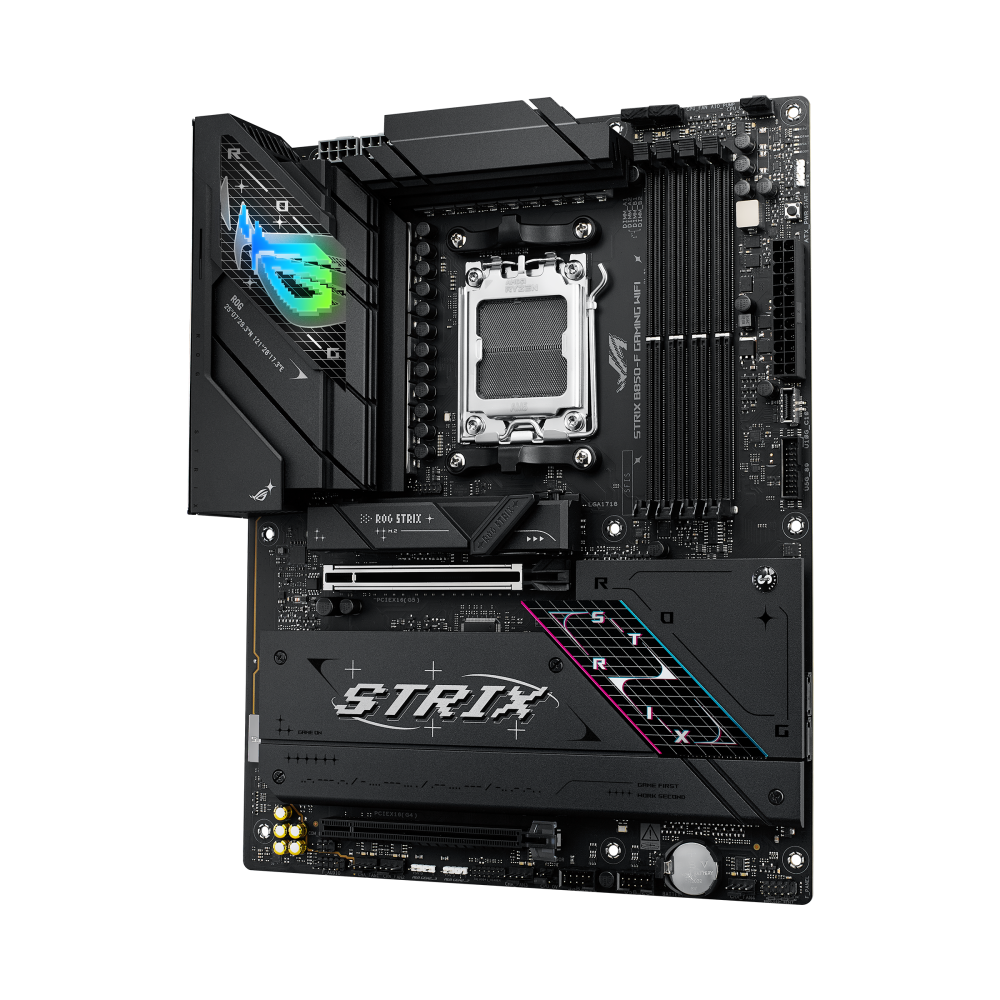

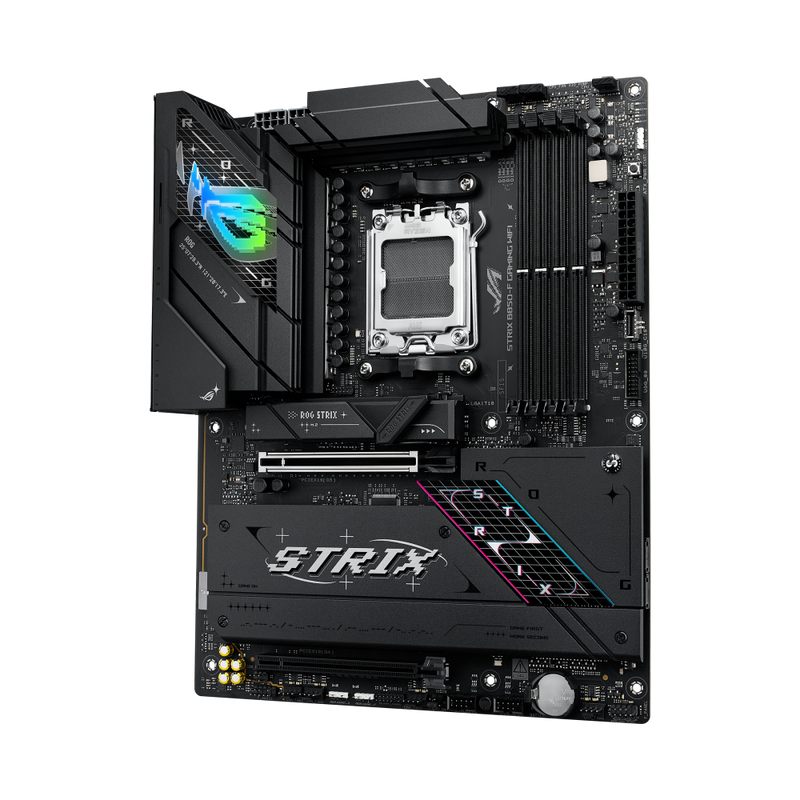

ASUS ROG STRIX B850-F GAMING WIFI MOTHERBOARD - 197105771024

CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

ChipsetAMD B850 Chipset

Memory4 x DIMM slots, max. 256GB, DDR5

Graphics1 x DisplayPort

1 x HDMI™ port

- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications

Graphics1 x DisplayPort

1 x HDMI™ port

- Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

StorageTotal supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

AMD Ryzen™ 7000 & 9000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)

M.2_2 (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)

M.2_2 (Key M), type 2280/22110 (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset

M.2_3 (Key M), type 2280 (supports PCIe 4.0 x4)

M.2_4 (Key M), type 2280 (supports PCIe 4.0 x4)

2 x SATA 6Gb/s ports

Specifications vary by CPU types.

M.2_3 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_3 will be disabled.

AMD RAIDXpert2 Technology

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.

Bluetooth® v5.4

BIOS256 Mb Flash ROM, UEFI AMI BIOS

ManageabilityWOL by PME, PXE

AccessoriesCables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Latch package

1 x M.2 Q-Slide package

1 x ROG key chain

1 x ROG Strix stickers

4 x M.2 rubbers

Documentation

1 x Quick start guide

Operating SystemWindows 11

Form FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
