ASUS ROG STRIX B850-E GAMING WIFI MOTHERBOARD - 197105769311

CPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors

* Refer to https://www.asus.com/support/download-center/ for CPU support list.

ChipsetAMD B850 Chipset

Memory4 x DIMM slots, max. 256GB, DDR5

Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC, Un-buffered DIMM*

Dual channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO™)

ASUS Enhanced Memory Profile (AEMP)

Graphics1 x DisplayPort

1 x HDMI™ port

1 x USB4® (40Gbps) port supports USB Type-C® display outputs

Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Release Slim (supports x16 or x8 modes)

AMD Ryzen™ 8000 Series Desktop Processors

1 x PCIe 5.0 x16 slot with Q-Rlease Slim (supports PCIe 4.0 x8 or x4 mode)

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Multi-GPU Support Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

Storage AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

AMD Ryzen™ 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (Not supports)

M.2_3 slot (Key M), type 2280 (Not supports)

AMD B850 Chipset

M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_5 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

ASMedia ASM1061 Controller

4 x SATA 6Gb/s ports

When either M.2_2 or M.2_3 slot is operating, PCIEX16_1 will run x8.

M.2_2 and M.2_3 slot will be disabled while using the AMD Ryzen™ 8000 Series Desktop Processors.

M.2_4 slot shares bandwidth with PCIEX16(G4). When PCIEX16(G4) slot is operating, M.2_4 will be disabled.

AMD RAIDXpert2 Technology for NVMe M.2 Device only

Ryzen™ 9000 Series Processors: RAID 0/1/5/10

Ryzen™ 8000 Series Processors: RAID 0/1

Ryzen™ 7000 Series Processors: RAID 0/1/10

Ethernet1 x Realtek 5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Supports Wi-Fi 7 320MHz bandwidth, up to 6.5Gbpstransfer rate.

Bluetooth® v5.4

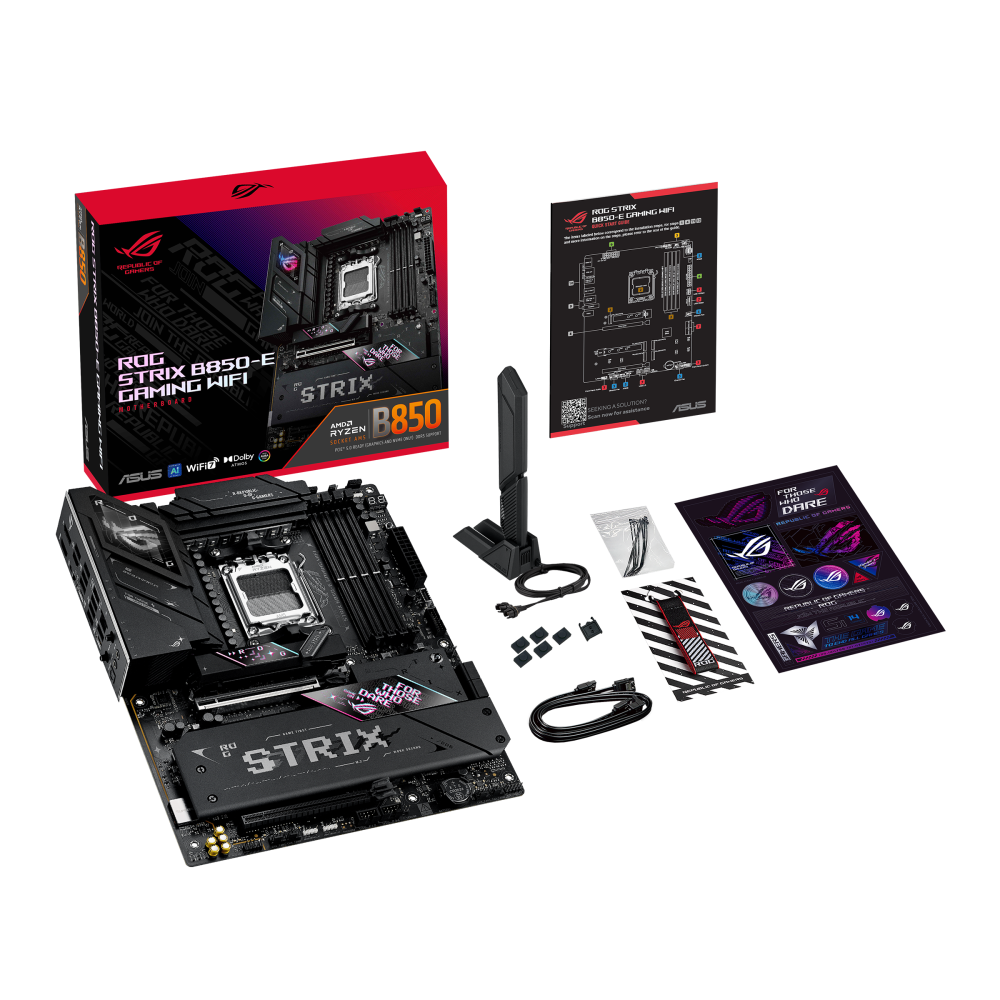

AccessoriesCables

2 x SATA 6Gb/s cables

Additional Cooling Kit

1 x Thermal pad for M.2 22110

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Cable ties package

1 x M.2 Q-Slide package

1 x ROG key chain

1 x ROG Strix stickers

5 x M.2 rubbers

Documentation

1 x Quick start guide

Operating SystemWindows 11

Form FactorATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
