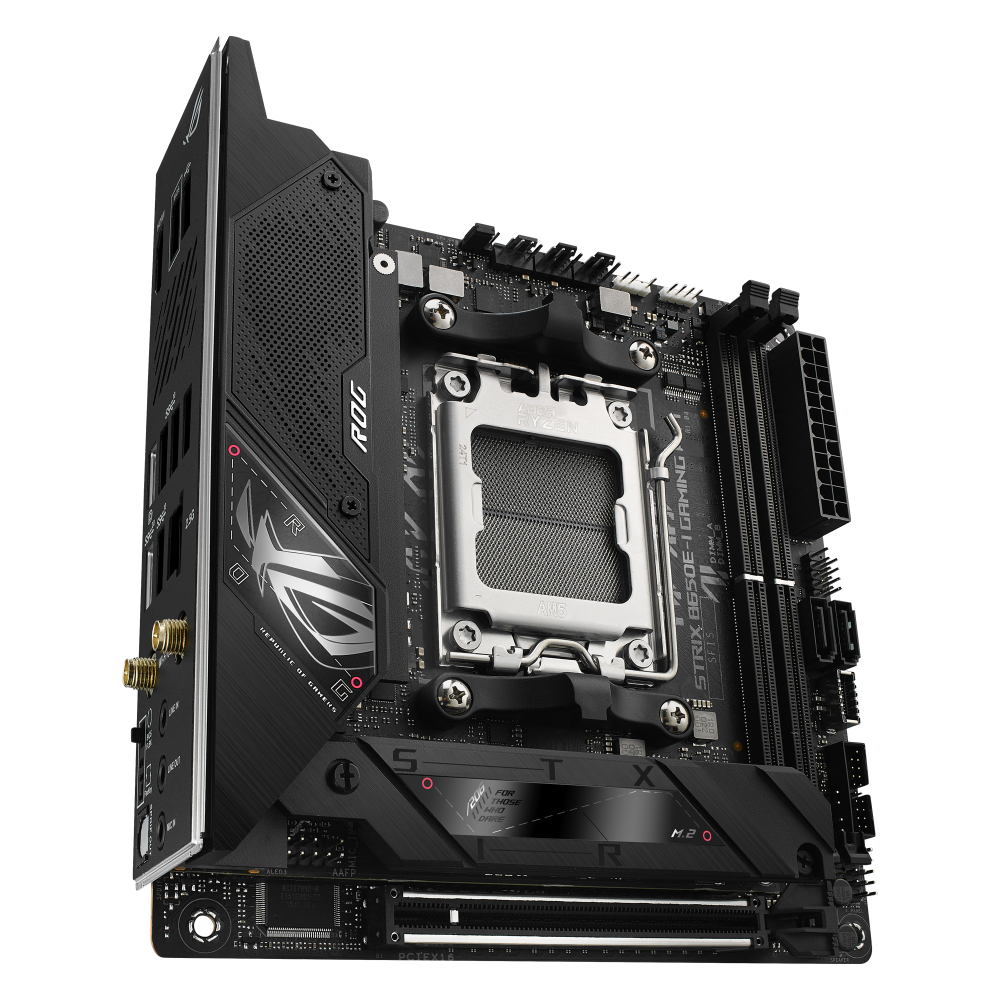

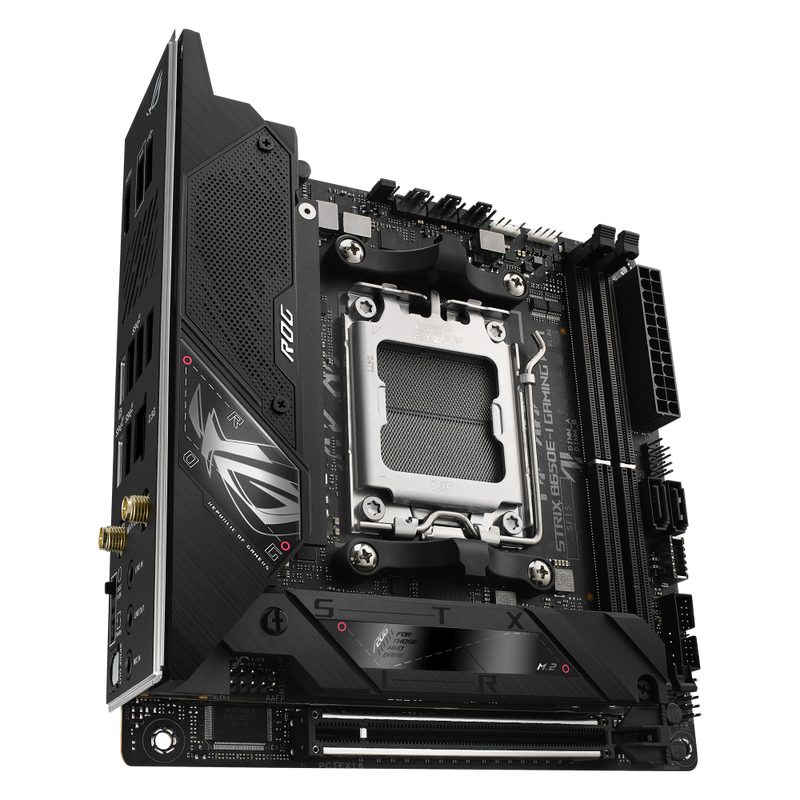

ASUS ROG STRIX B650E-I GAMING WIFI MOTHERBOARD - 195553957892

MBCPUAMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors*

list.

ChipsetAMD B650

Memory2 x DIMM, Max. 96GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/

6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC and Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports On-Die ECC function

Graphics1 x HDMI® port

1 x USB3.2 Gen2 port supports USB Type-C® display outputs

* Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

Supports max. 8K@60Hz as specified in display outputs

Supports 4K@60Hz as specified in HDMI 2.1.

VGA resolution support depends on processors' or graphic cards' resolution.

Expansion SlotsAMD Ryzen™ 9000 & 7000 Series Desktop Processors*

1 x PCIe 5.0 x16 slot

* Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.

Multi-GPU Support

StorageTotal supports 2 x M.2 slots and 2 x SATA 6Gb/s ports*

AMD Ryzen™ 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280  (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports  PCIe 4.0 x4 mode)

2 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1 and SATA RAID 0/1.

Ethernet1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band*

Bluetooth® v5.2

WiFi 6E 6GHz regulatory may vary between countries.

The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.

USBRear USB (Total 8 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

5 x USB 3.2 Gen 2 ports (4 x Type-A + 1 x USB Type-C®)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 5 ports)

1 x USB 3.2 Gen 2 connector

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Impedance sense for front and rear headphone outputs

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

- Supports up to 32-Bit/384 kHz playback

* For Compatibly of the product, please visit the respective product web site

* Compatibility issues are not covered under warranty or return

* To be eligible for a return in case of a change of mind or product damage customers are required to video record the unboxing of the package.
