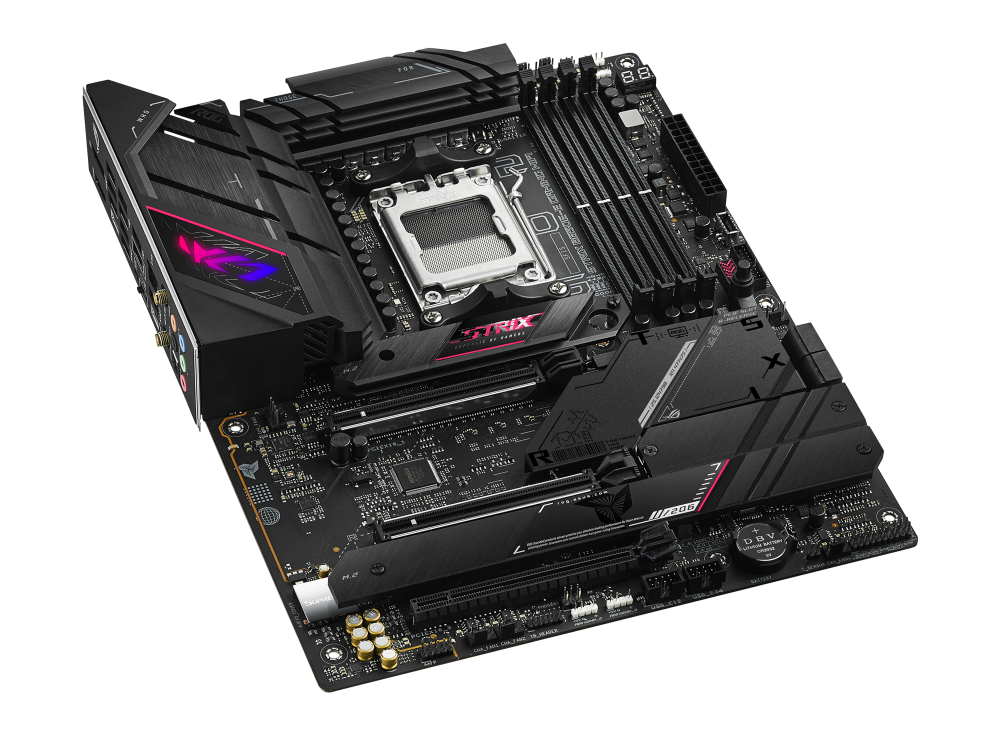

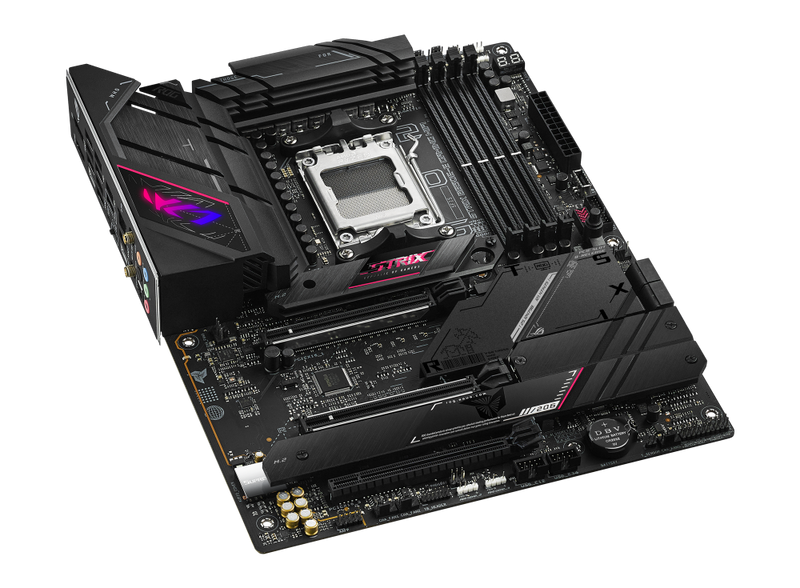

ASUS ROG STRIX B650E-E GAMING WIFI MOTHERBOARD

CPUAMD Socket AM5 for AMD Ryzen™ Desktop Processors*

ChipsetAMD B650

Memory4 x DIMM, Max. 192GB, DDR5 8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/ 6200(OC)/

6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC andNon-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports AMD EXTended Profiles for Overclocking (EXPO™)

OptiMem II

* Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.

* Non-ECC, Un-buffered DDR5 Memory supports

On-Die ECC function

Graphics1 x DisplayPort*

1 x HDMI® port**

* Supports max. 8K@60Hz as specified in DisplayPort 1.4.

**Supports max. 4K@60Hz as specified in HDMI 2.1.

Expansion SlotsAMD Ryzen™ Desktop Processors*

2 x PCIe 5.0 x16 slots (supports x16 & x8/x4 modes)

AMD B650 Chipset**

1 x PCIe 4.0 x16 slot (supports x4 mode)

* Please check PCIe bifurcation table in support site (https://www.asus.com/support/FAQ/1037507/).

StorageTotal supports 4 x M.2 slots* and 4 x SATA 6Gb/s ports

AMD Ryzen™ Desktop Processors

M.2_1 slot (Key M), type 2242/2260/2280

(supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280

(supports PCIe 4.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

AMD B650 Chipset

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

ASMedia ASM1061 Controller**

4 x SATA 6Gb/s ports

*AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10.

**RAID configuration is not supported on the SATA6G_E1-4 ports.

Ethernet1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & BluetoothWi-Fi 6E

2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.2

* WiFi 6E 6GHz regulatory may vary between countries.

USBRear USB (Total 12 ports)

1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 ports

Front USB (Total 7 ports)

1 x USB 3.2 Gen 2 connector (supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

AudioROG SupremeFX 7.1 Surround Sound High Definition Audio CODEC ALC4080

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input

Back Panel I/O Ports1 x USB 3.2 Gen 2x2 port (1 x Type-C®)

7 x USB 3.2 Gen 2 ports (6 x Type-A, 1 xUSB Type-C®)

4 x USB 2.0 ports

1 x DisplayPort

1 x HDMI® port

1 x Wi-Fi Module

1 x Intel® 2.5Gb Ethernet port

5 x Audio jacks*

1 x Optical S/PDIF out port

1 x BIOS FlashBack™  button

1 x Clear CMOS button
