Description & Specifications
Model

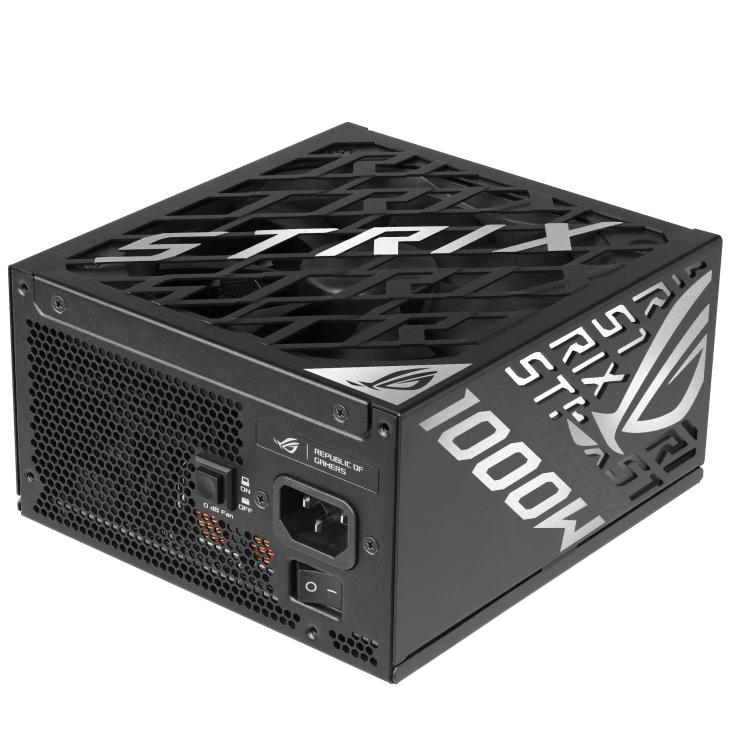

ROG STRIX 1000W Platinum
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
160 x 150 x 86 mm
Efficiency
80Plus Platinum
MTBF
>120,000 hrs @ 25°C
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
100-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 83.3A 0.3A 3A
Combined Load
130W 130W 1000W 3.6W 15W
Total Output
1000W
Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
CPU 4+4-pin x 2
PCI-E 16-pin x 1 (both PSU & component side)
PCI-E 6+2-pin x 4
SATA x 6
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 (16-pin-to-16-pin) Cable x 1 (750mm)
PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm)
SATA 1-to-3 Cable x 2 (400+120+120mm)
Peripheral 1-to-3 Cabel x 1 (400+150+150mm)
ROG Strix DIY sticker x 1
User Manual x 1
Weight
1.81 kg (single PSU)
Cybenetics Noise Level Certification
A+
0dB Technology
Supported. The fan shuts off entirely when the PSU is under certain load
- For Compatibly of the product, please visit the respective product web site.
- Compatibility issues are not covered under warranty or return.
*To be eligible for a return in case of a change of mind or product damage, customers are required to video record the unboxing of the package.
Warranty
