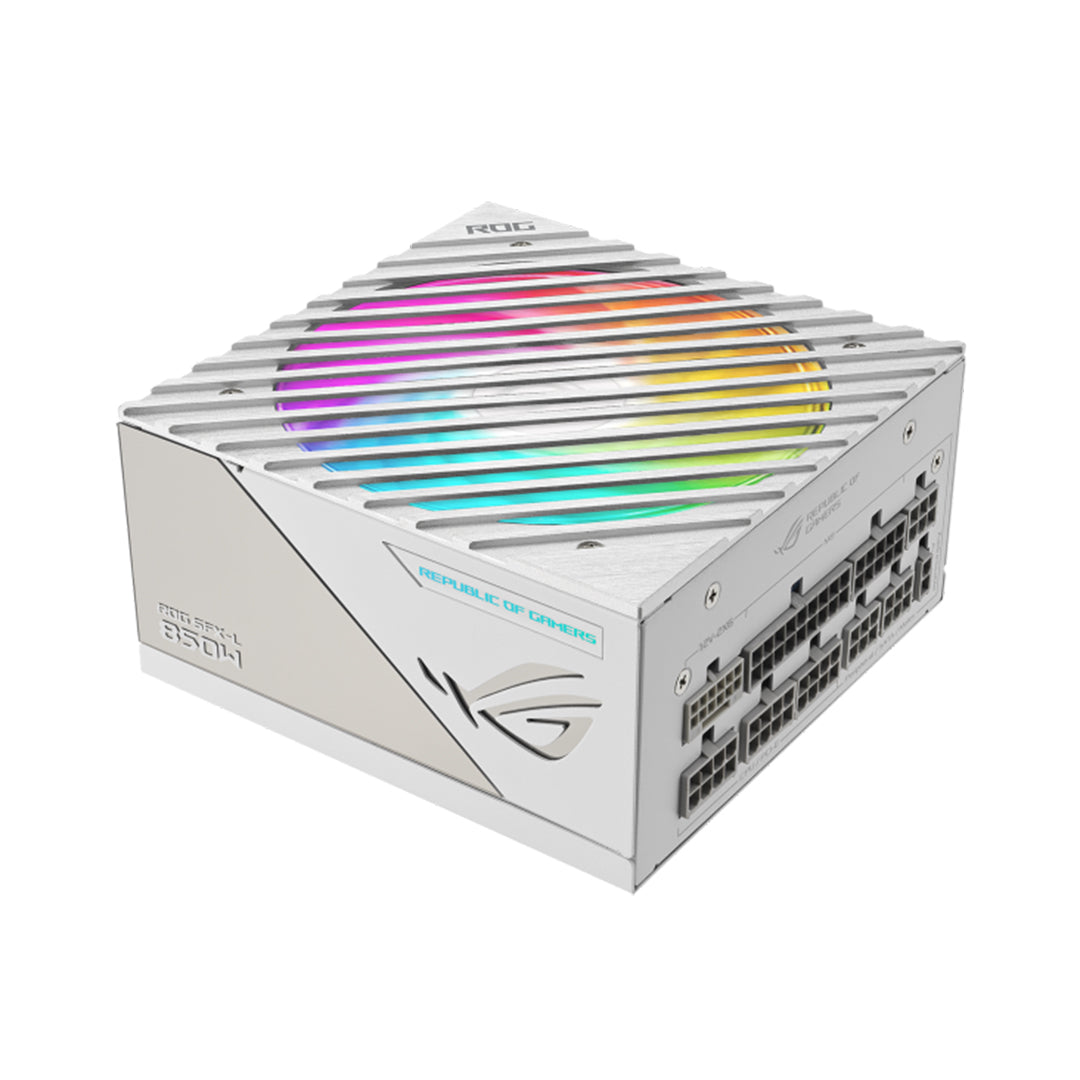

ASUS ROG LOKI SFX-L 850W PLATINUM WHITE EDITION GAMING PSU - 195553722223

Intel Form Factor

SFX-L

PFC Type

Active PFC

ATX Standard

ATX 3.0

Dimensions

125 x 125 x 63.5 mm

Efficiency

80Plus Platinum

Protection Features

OPP/OVP/UVP/SCP/OCP/OTP

Hazardous Materials

ROHS

AC Input Range

100-240Vac

DC Output Voltage

+3.3V +5V +12V -12V +5Vsb

Maximum Load

20A 20A 70.8A 0.8A 2.5A

Combined Load

110W 110W 850W 9.6W 12.5W

Total Output

850W

Cable Connectors

MB 24/20-pin x 1

CPU 4+4-pin x 2

PCI-E 16-pin x 1 (both PSU & component side)

PCI-E 8-pin x 3

SATA x 6

PERIPHERAL x 4

Package Contents

Power Cord x 1

Motherboard Power Cable x 1 (450mm)

CPU Cable x 2 (550mm)

PCI-E Gen 5 16-pin Cable x 1 (450mm)

PCI-E (16-pin to 8-pin-8-pin) Cable x 1 (450mm)

PCI-E 1-to-1 Cable x 1 (450mm)

SATA 1-to-3 Cable x 2 (300+200+100mm)

Peripheral 1-to-4 Cable x 1 (300+100+100+100mm)

Addressable RGB Cable x 1 (800mm)

User Manual x 1

ATX to SFX adapter bracket x 1

Weight

1.815kg (single PSU)

AURA SYNC

ARGB

Cybenetics Noise Level Certification

A

0dB Technology

Supported. The fan shuts off entirely when the PSU is under certain load
