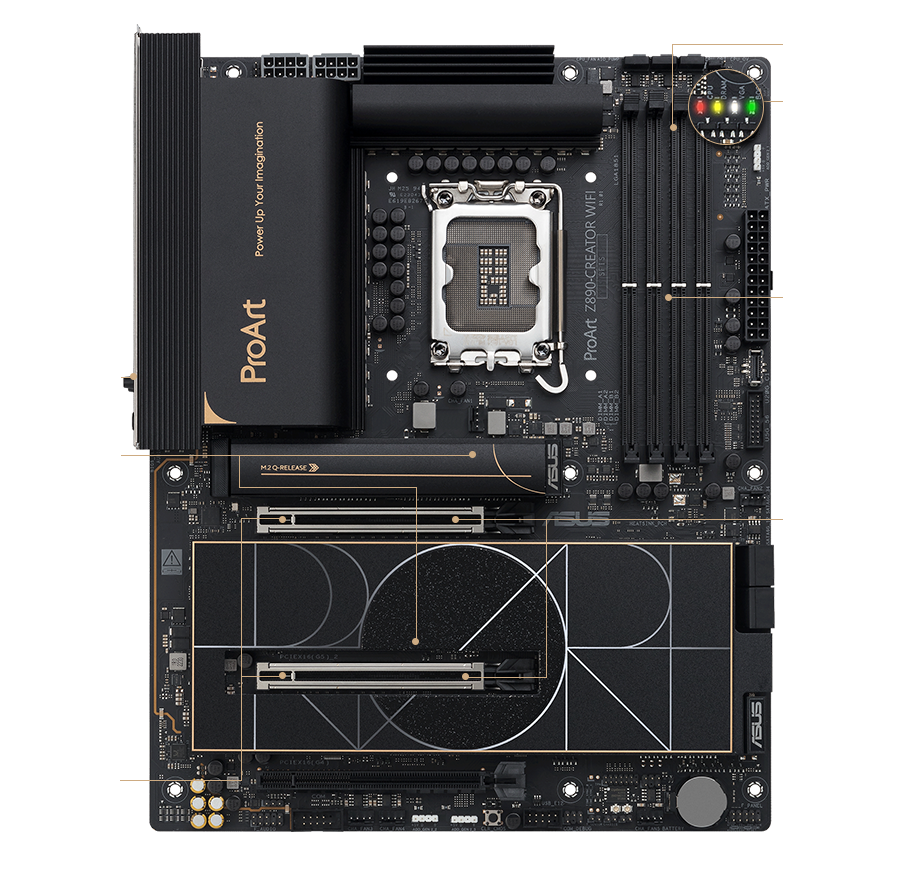

ASUS ProArt Z890-CREATOR WIFI Motherboard - 197105766174

Model

ProArt Z890-CREATOR WIFI

CPU

Support Intel® Core™ Ultra Processors (Series 2), LGA1851

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III (AEMP III)

Support DIMM Fit

Support DIMM Flex

Memory

4 x DIMM slots, max. 256GB, DDR5

Support up to 9066+MT/s (OC), Non-ECC, Un-buffered and Clocked Unbuffered DIMM (CUDIMM)

Dual channel memory architecture

Supports Intel® Extreme Memory Profile (XMP) memory module

ASUS Enhanced Memory Profile III (AEMP III)

Support DIMM Fit

Support DIMM Flex

Graphics

1 x HDMI™ port

2 x Intel® Thunderbolt™ 5 ports (USB Type-C®)

1 x Intel® Thunderbolt™ 4 ports (USB Type-C®)

Expansion Slots

Intel® Core™ Ultra Processors (Series 2)

2 x PCIe 5.0 x16 slots (supports x16 or x8/x8 modes)

Intel® Z890 Chipset

1 x PCIe 4.0 x16 slot (supports x4 mode)

Storage

Total supports 5 x M.2 slots and 4 x SATA 6Gb/s ports

Intel® Core™ Ultra Processors (Series 2)

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

Intel® Z890 Chipset

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 modes)

M.2_5 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Ethernet

1 x Marvell® AQtion 10Gb Ethernet

1 x Intel® 2.5Gb Ethernet

ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7

2x2 Wi-Fi 7 (802.11be)

Supports 2.4/5/6GHz frequency band

Support Wi-Fi 7 320MHz bandwidth, up to 5.8Gbps transfer rate.

Bluetooth® v5.4

USB

Rear USB (Total 10 ports)

2 x Thunderbolt™ 5 ports (2 x USB Type-C®)

1 x USB4 / Thunderbolt™ port (1 x USB Type-C®)

6 x USB 10Gbps ports (6 x Type-A )

1 x USB 2.0 port (1 x Type-A )

Front USB (Total 5 ports)

1 x USB 20Gbps (supports USB Type-C®)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

1 x USB 2.0 header supports 2 additional USB 2.0 ports

USB Type-C® power delivery output: max. 5V/3A

Remote Management Features

IT Management software supported

- ASUS Control Center Express(ACCE)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Manageability

WOL by PME, PXE

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x Q-connector

2 x M.2 Q-Latch packages

2 x M.2 rubber packages

1 x ProArt accessory bag

Documentation

1 x ACC Express activation key card

1 x Quick start guide

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX Form Factor

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
