Optimized for Cooling: With support for 280 and 360mm radiators and up to six fans, the AP201 is primed to deal with the thermal onslaught of high-performance hardware.

Industry-Leading Spatial Efficiency: Despite a 33L footprint, the AP201 supports ATX PSUs up to 180 mm long, graphics cards up to 338 mm long, custom liquid cooling, and various storage devices.

Tool-Free Side Panels: A simple yet secure clip mechanism allows chassis side panels to be easily removed and resistant to accidental dislodging.

Sizeable Cable-Management: The AP201 features an extended motherboard tray with strategically placed cutouts and a 32 mm gap to tuck cables out of sight.

Front Panel USB Type-C® Support: The front panel of the AP201 features a USB 3.2 Gen 2 Type-C port, so users can enjoy transfer speeds of up to 10 Gbps.

Model

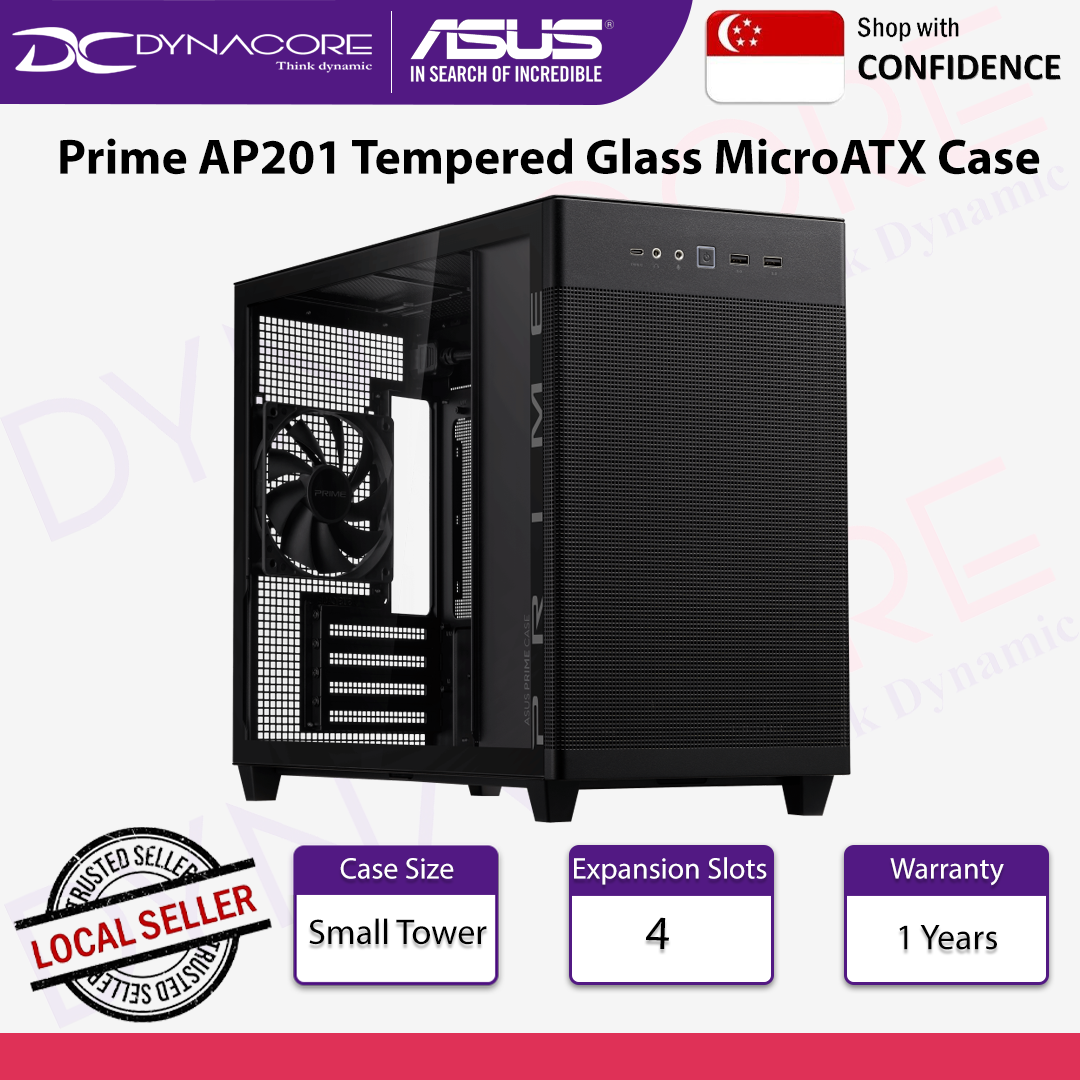

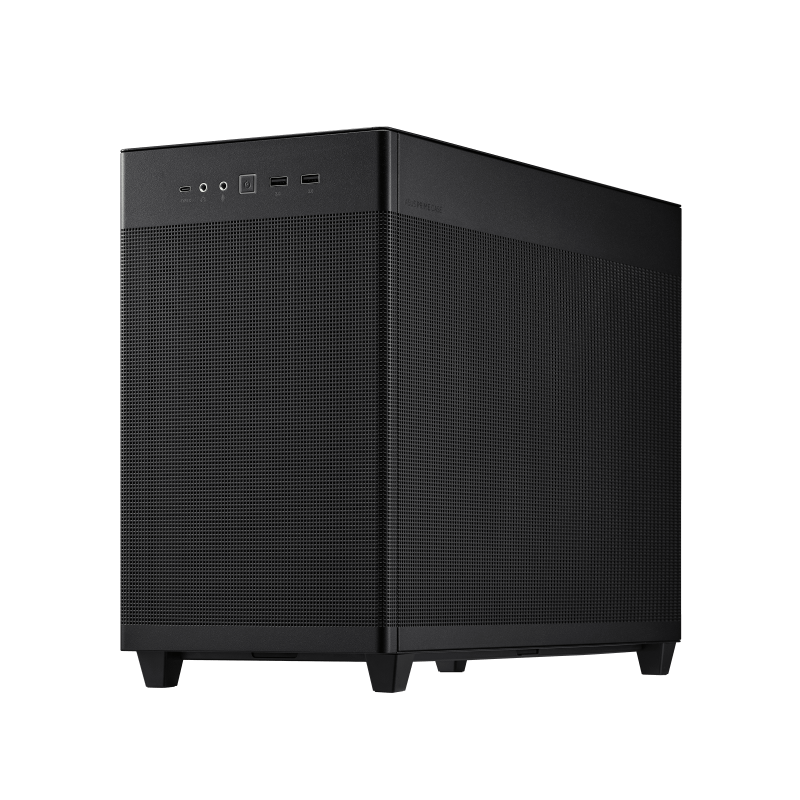

ASUS Prime AP201 Tempered Glass MicroATX Case

Case Size

Small Tower

Motherboard Support

Micro-ATX

Mini-ITX

Drive Bays

1 x 2.5" Bay

3 x 2.5"/3.5" Combo Bay

Expansion Slots

4

Front I/O Port

1 x Headphone

1 x Microphone

2 x USB 3.2 Gen1

1 x USB 3.2 Gen2 Type C

Radiator Support (Top)

120 mm

140 mm

240 mm

280 mm

360 mm

Radiator Support (Rear)

120 mm

Cooling Support (Top)

3 x 120 mm

2 x 140 mm

Cooling Support (Rear)

1 x 120 mm

Pre-installed Fans (Front)

None

Pre-installed Fans (Rear)

1 x 120 mm

Maximum CPU Cooler Height

170 mm

Maximum GPU Length

338 mm

Maximum PSU Length

140-180 mm

Removable Dust Filters

Bottom

Maximum Cable Management Space

32 mm

Dimensions

205 x 350 x 460 mm

Weight

5.8 Kg (Mesh Edition)

6.3 Kg (Tempered Glass Edition)
