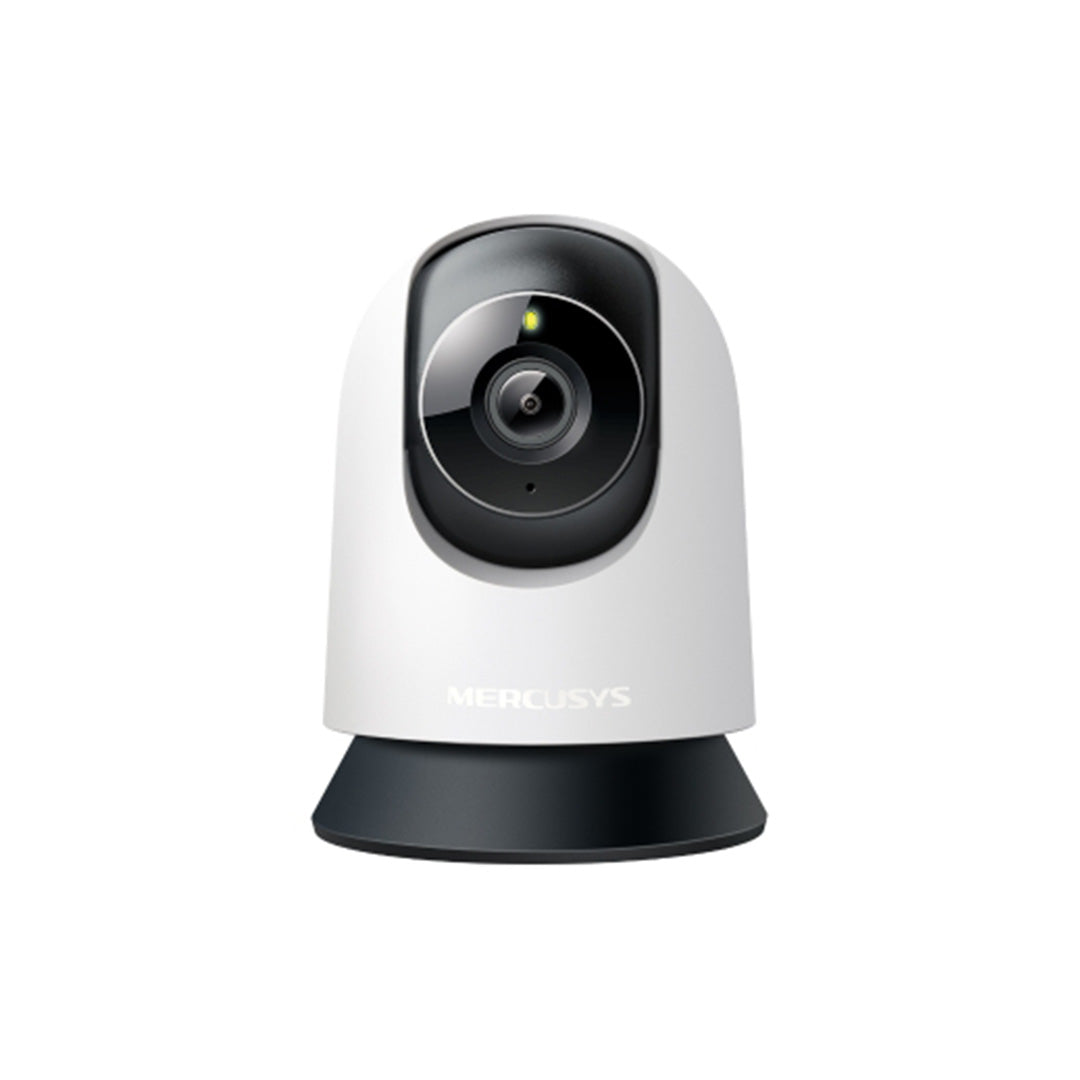

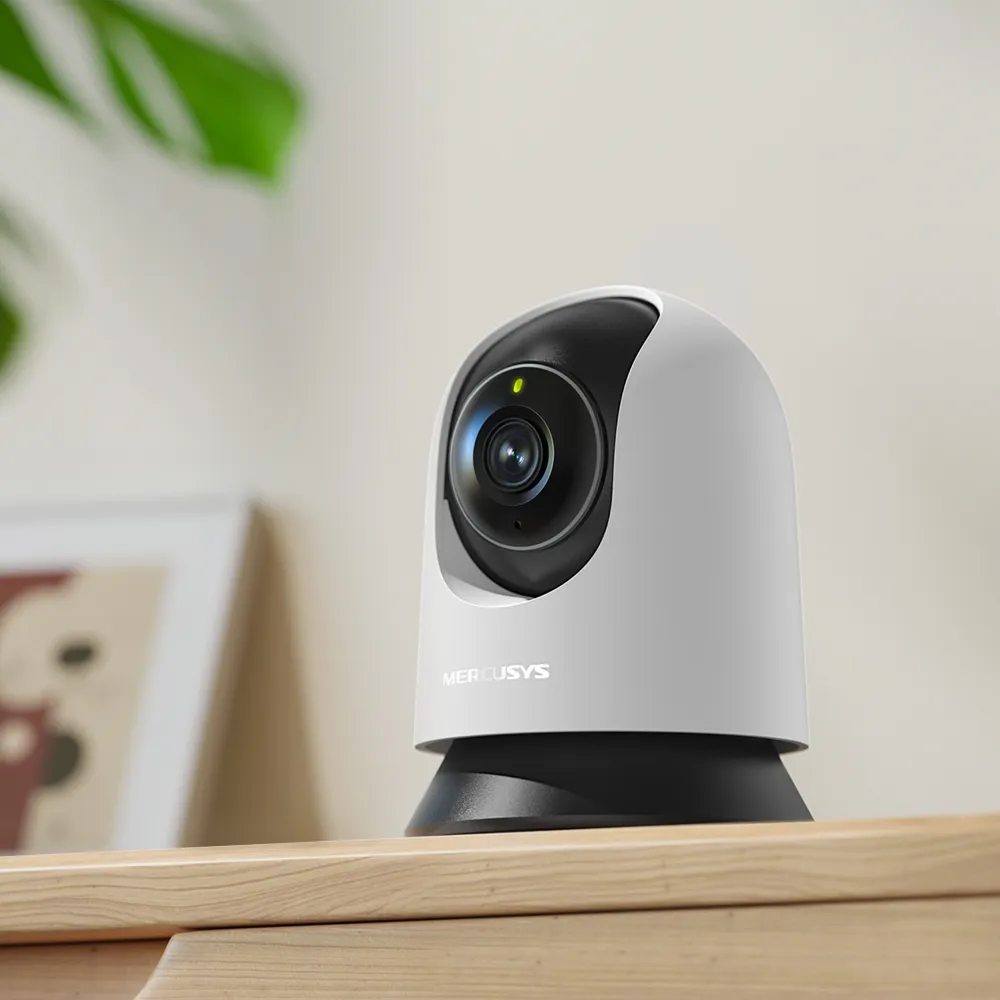

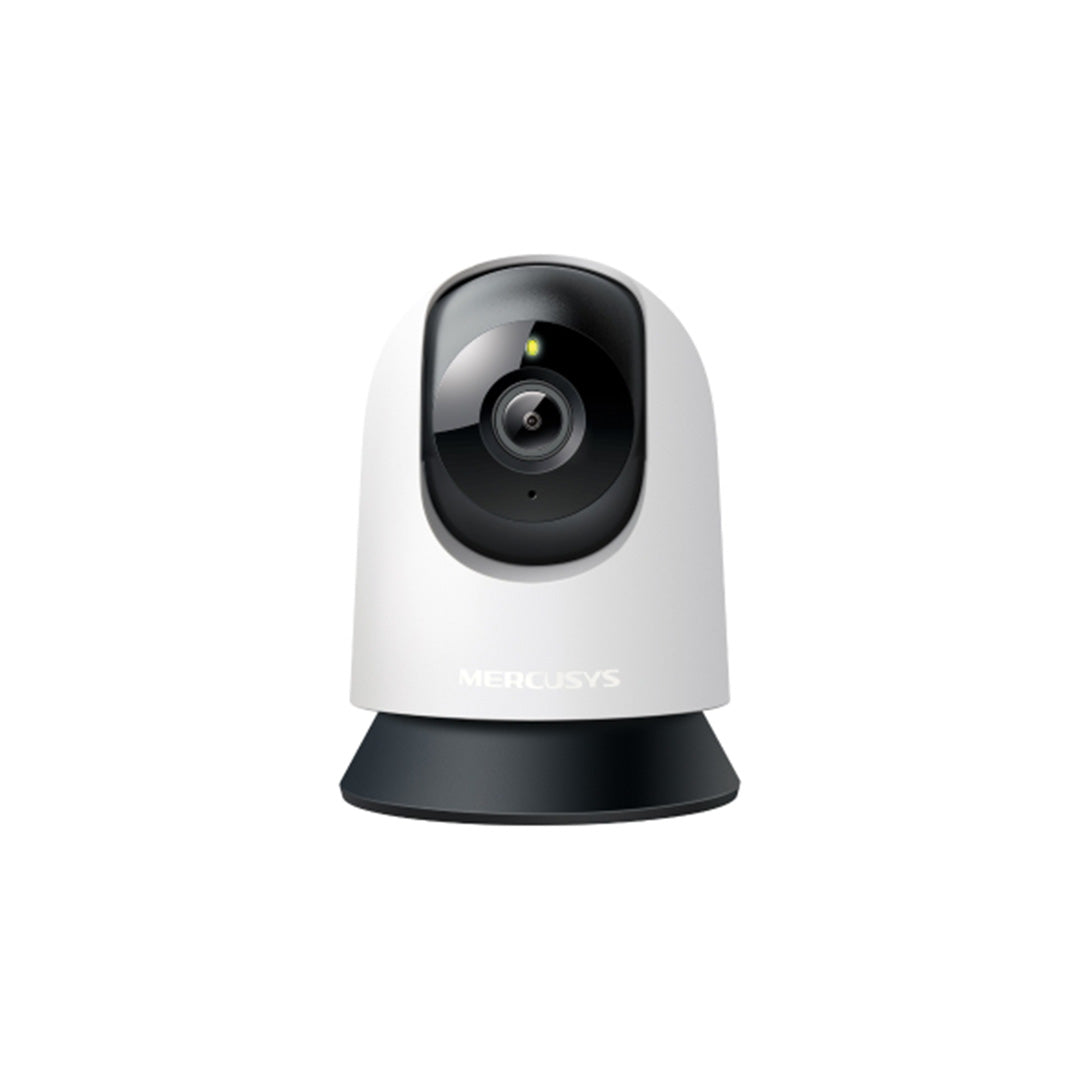

MERCUSYS MC210 2K 3MP Pan/Tilt Home Security Wi-Fi Camera - 6957939004477

Camera

Image Sensor

1/3'' Progressive Scan CMOS Not Starlight Sensor

 Lens

Focal Length: 4 mm

 Aperture: F2.0

 Field of View: 87° (Diagonal), 74°(Horizontal), 40°(Vertical)

 Motion Range

Pan Mechanical Range: 340° (360° Pan Coverage)

Tilt Mechanical Range: 70° (110° Tilt Coverage)

 Night Vision

850 nm IR LED (40 ft / 12 m)

 Interface & Button

1× RESET Button

1× MicroSD Card Slot (Up to 512 GB)

Video & Audio

Maximum Resolution

2304 × 1296 px

 Digital Zoom

Supports 10.8x zoom

 Frame Rate

15/20/25/30 fps ( 15fps by default)

 Video Compression

H.264

 Live View

Yes

 Image Enhancement

/

 Audio Input & Output

Built-in microphone and speaker

 Audio Communication

2-way audio

 Siren Volume

88dB (Level measured at 4-inch/10-cm distance)

Software

Security

128 bit AES encryption with SSL/TLS

Storage

Local Storage

Micro SD card slot

(Supports up to 512GB)

 Cloud Storage

MERCUSYS Camera Care Cloud Storage Services (Subscription required)

Network

Network Connectivity

Connect via Wi-Fi

 Wireless Connectivity

11Mbps(802.11b)

 54Mbps(802.11g)

 72.2Mbps(802.11n)

 Max. Distance Between Hub and Camera/Doorbell

/

 RTSP

Yes

 ONVIF

Yes

Power

Power Source

9V DC Power Adapter

 Input Voltage

100-240VAC, 50/60Hz, 0.3A

 Output Voltage

9.0V/0.6A

Detection & NotificationsSensor

/

 AI Detection

Motion detection

 Person Detection

Baby Crying Detection

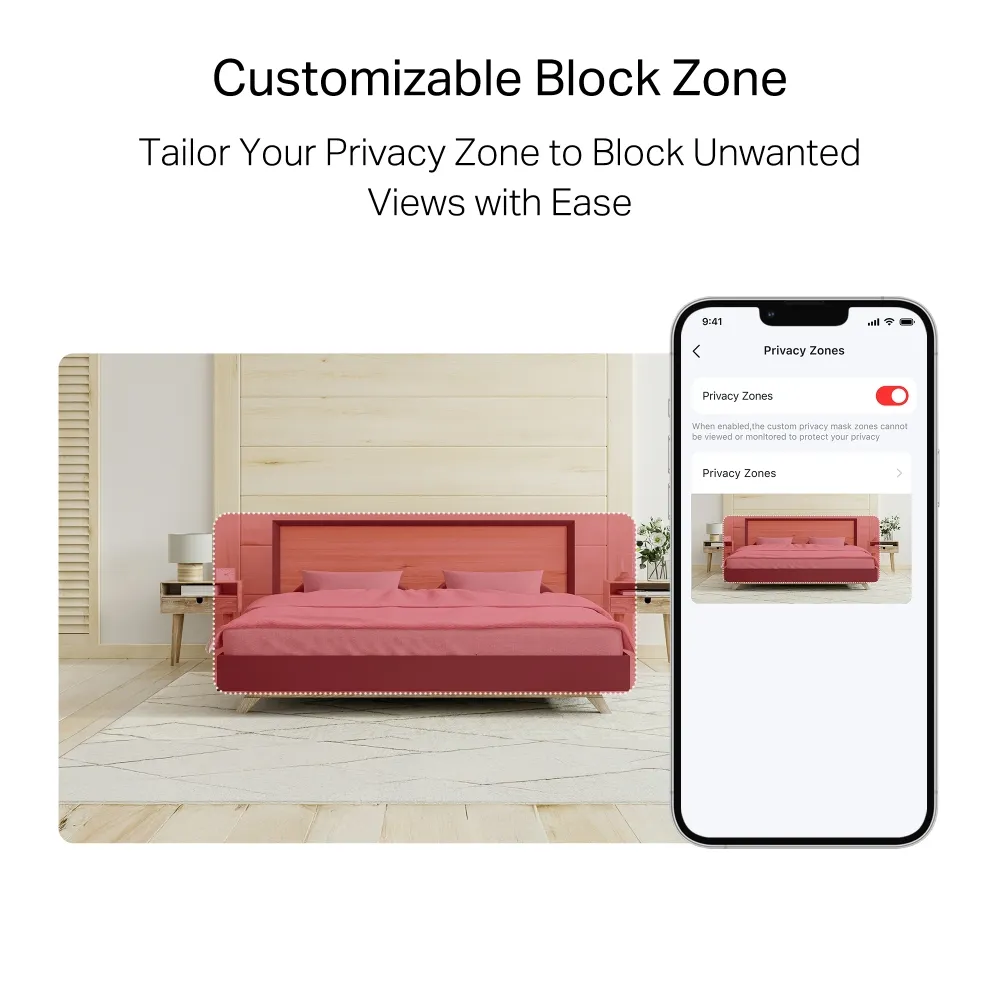

 Activity Zones

Yes

*Only works with Motion Detection.

 Output Notification

System Notification

General

Smart Integration

Google Assistant, Amazon Alexa

 Weather Resistance

/

 Mounting Options

Tabletop

Ceiling-Mounted

 Operating Temperature

0 ºC ~ 40 ºC (32°F ~ 104°F )

 Storage Temperature

 -40°C~60°C (-40°F~140°F)

 Operating Humidity

10%~90%RH, Non-condensing

 Storage Humidity

0%~90%RH, Non-condensing

 Charging Temperature

/

 Dimensions ( W x D x H )

78.4 × 78.4 × 105.6 mm

(3.09 × 3.09 × 4.16 in)

Others

Certifications

CE, NCC, BSMI, NTRA, KC, RCM, ONVIF

 Package Contents

Pan/Tilt Home Security Wi-Fi Camera (MC210) × 1

 Power Adapter × 1

 Mounting Anchors × 2

 Mounting Screws × 2

 Mounting Template Sticker × 1

 Quick Start Guide
