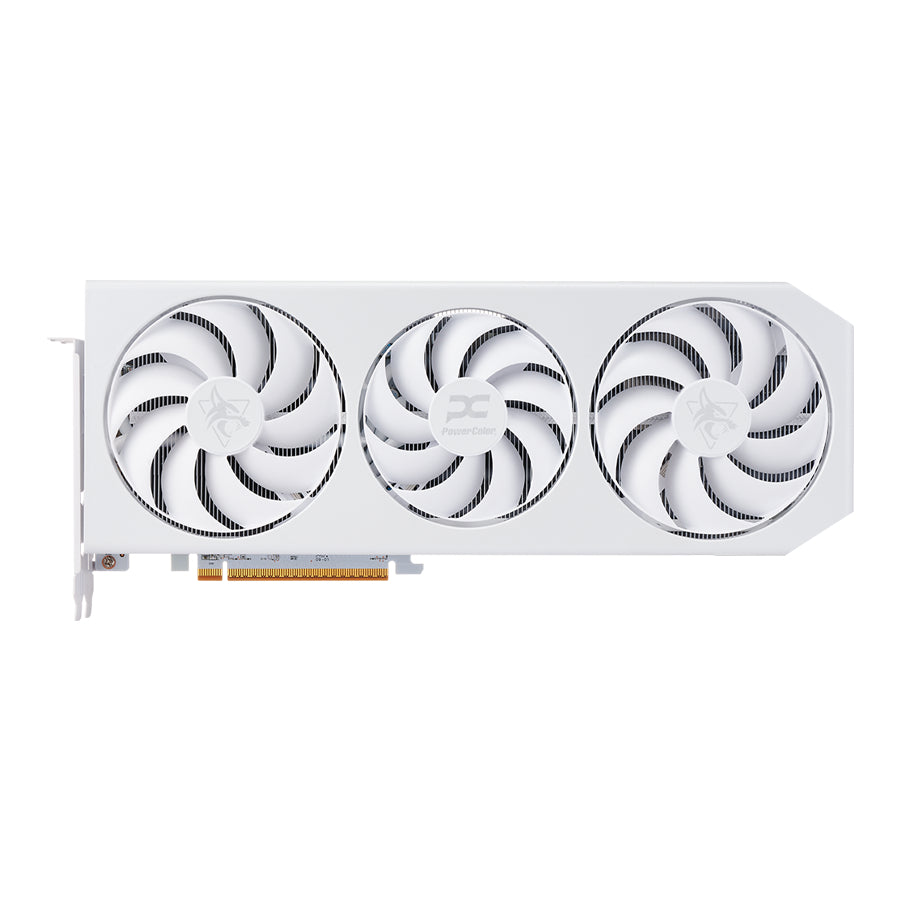

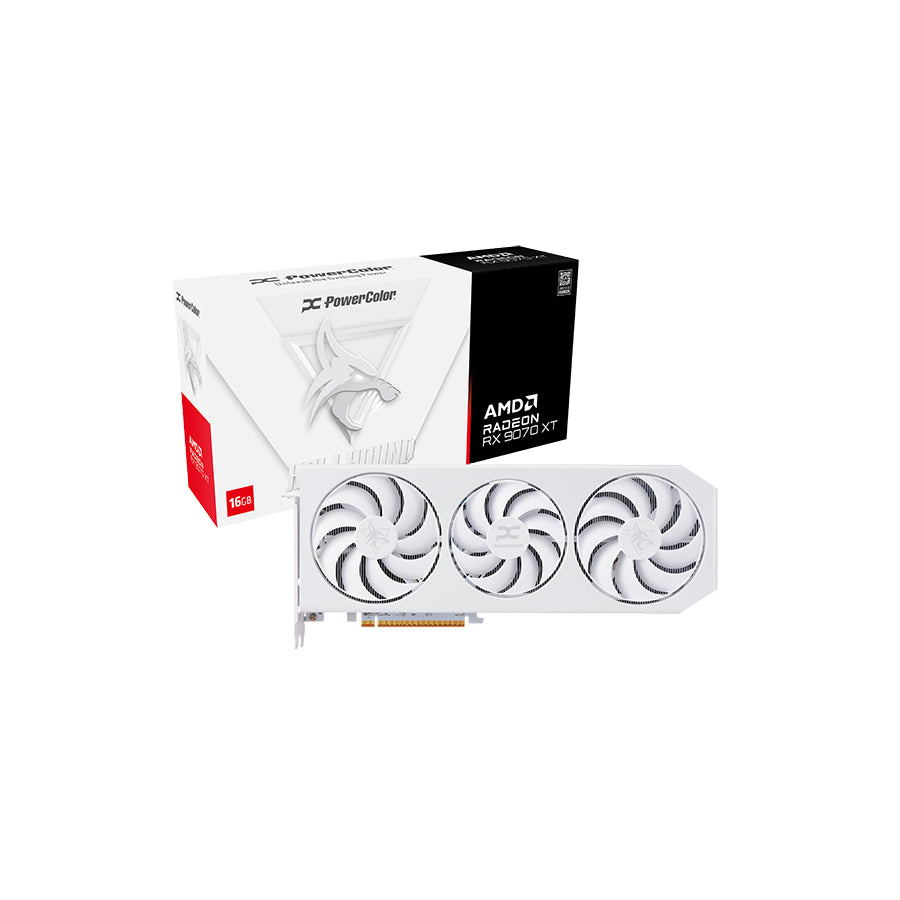

POWERCOLOR AMD RADEON HELLHOUND SPECTRAL WHITE RX9070XT 16GB OC GDDR6(3YRS) - 4713436175940

SPECIFICATION

Graphics Engine

AMD Radeon™ RX 9070 XT

Model Name

RX9070XT 16G-L/OC/WHITE

Series

Hellhound

Stream Processor

4096 Units

Video Memory

16GB GDDR6

Memory Speed

20.0 Gbps

Memory Interface

256-bit

Engine Clock(OC)

up to 2460MHz(Game)¹

up to 3010MHz(Boost)²

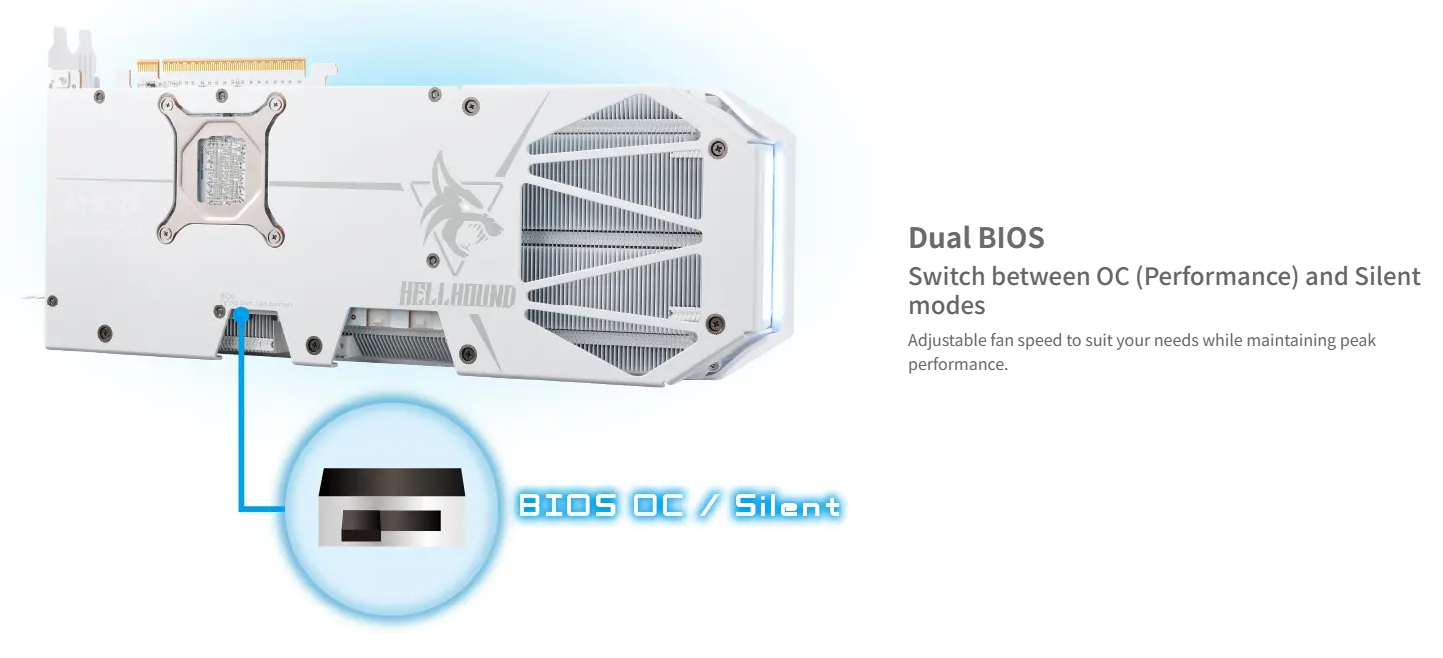

Engine Clock(STD/Silent)

up to 2400MHz(Game)¹

up to 2970MHz(Boost)²

Bus Standard

PCIE 5.0 x16

Standard Display Connectors

1 x HDMI 2.1b，3 x DisplayPort 2.1a (only 2x simultaneous DP2.1 connections can be supported)

Feature Support

DirectX® Support

12

OpenGL

4.6

AMD Eyefinity Technology

Support

AMD Stream Technology

Support

AMD Smart Access Memory

Support

Maximum Resolution

DisplayPort

7680×4320

HDMI

7680×4320

Power Specs + Board Dimensions

Board Dimensions

327mm*128mm*49mm

340mm*142mm*49mm(with bracket)

Slot

2.5

Minimum System Power requirement (W)

800W³

Extension Power Connector

Two 8-pin PCI Express Power connectors

Remark

¹Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP (Total Graphics Power). Actual individual game clock results may vary.

²Boost Clock is the maximum frequency achievable on the GPU running a burstyworkload. Boost clock achievability, frequency, and sustainability will vary based on several factors, including but not limited to:thermal conditions and variation in applications and workloads.

The entire information provided herein are for reference only.

PowerColor reserves the right to modify or revise the content at anytime without prior notice.
