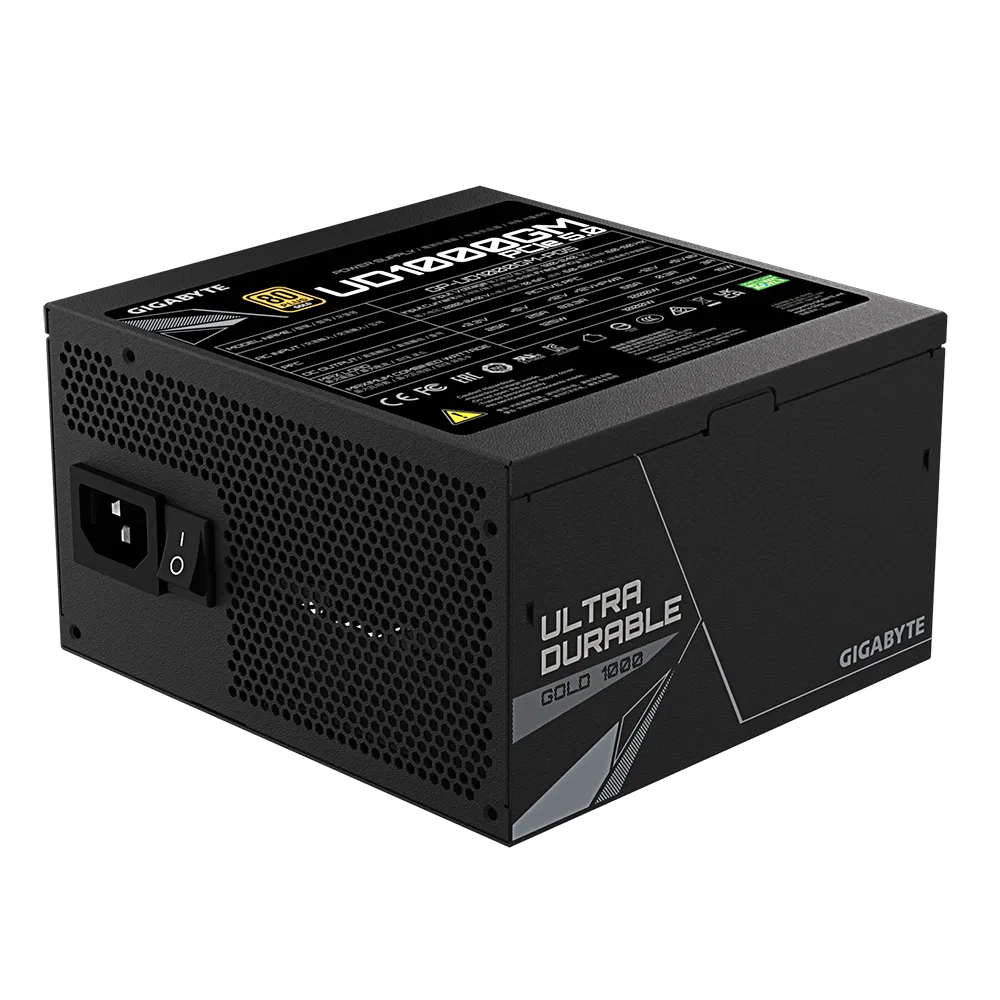

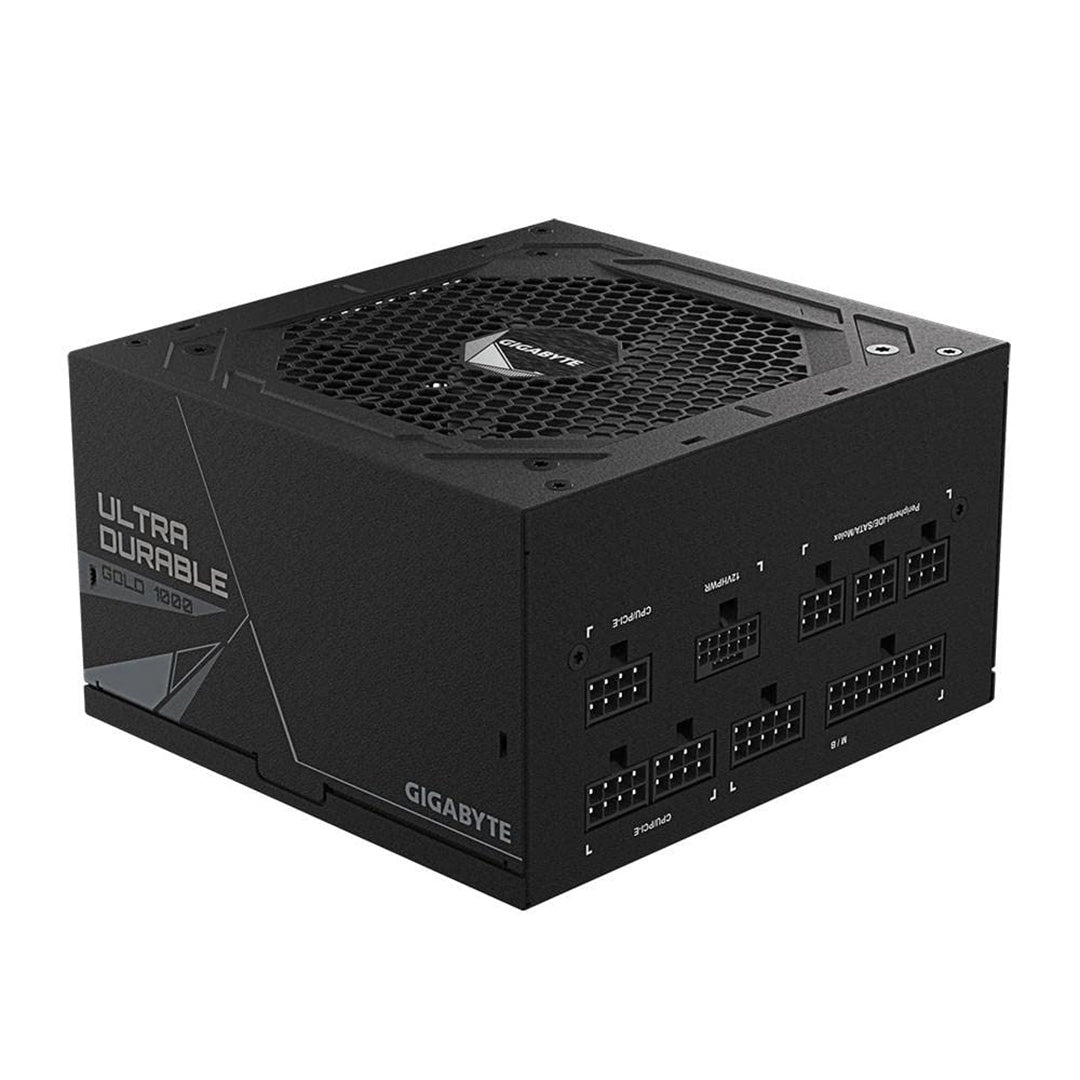

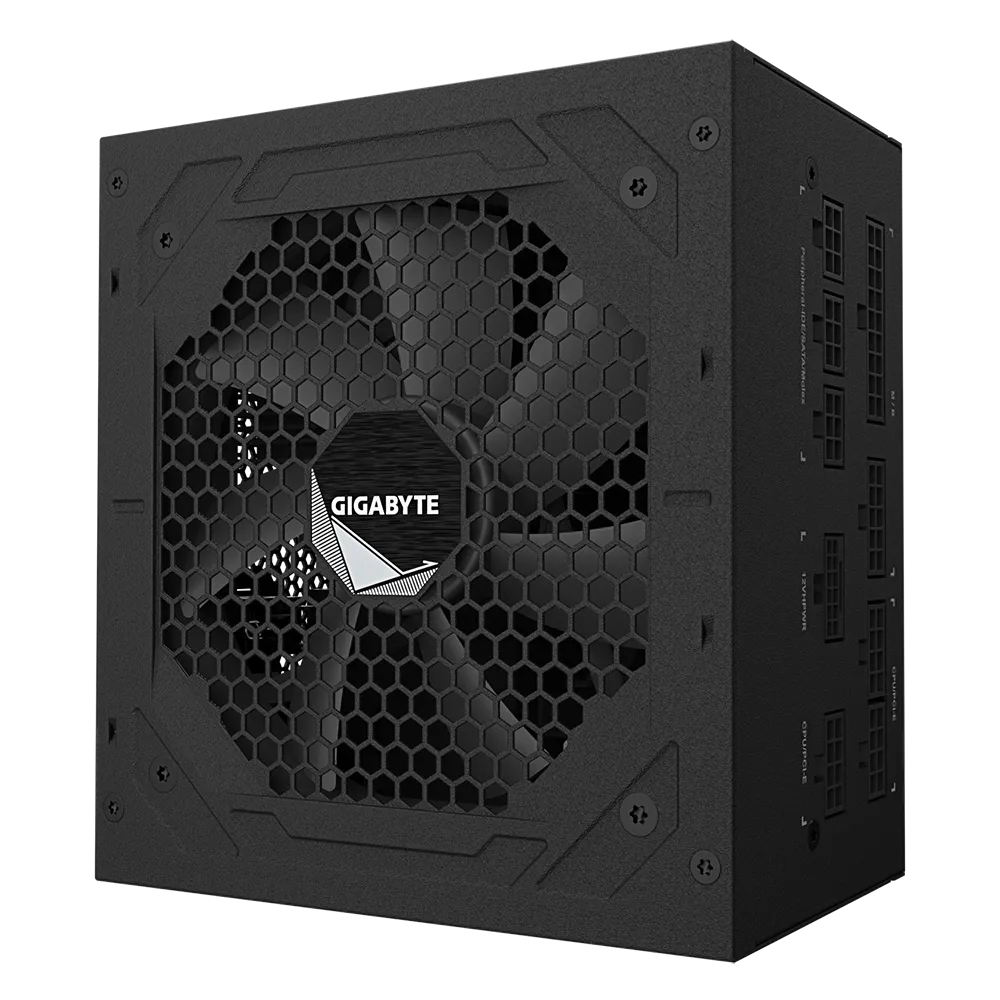

GIGABYTE GP-UD1000GM PG5 GP UD1000GM 1000W ATX3.0 PCIe 5.0 80 Plus Gold Certified Fully Modular Power Supply - 4719331553296

KEY FEATURE

1. Ultra Durable

• Main Japanese capacitors
• Enhanced thermal solution

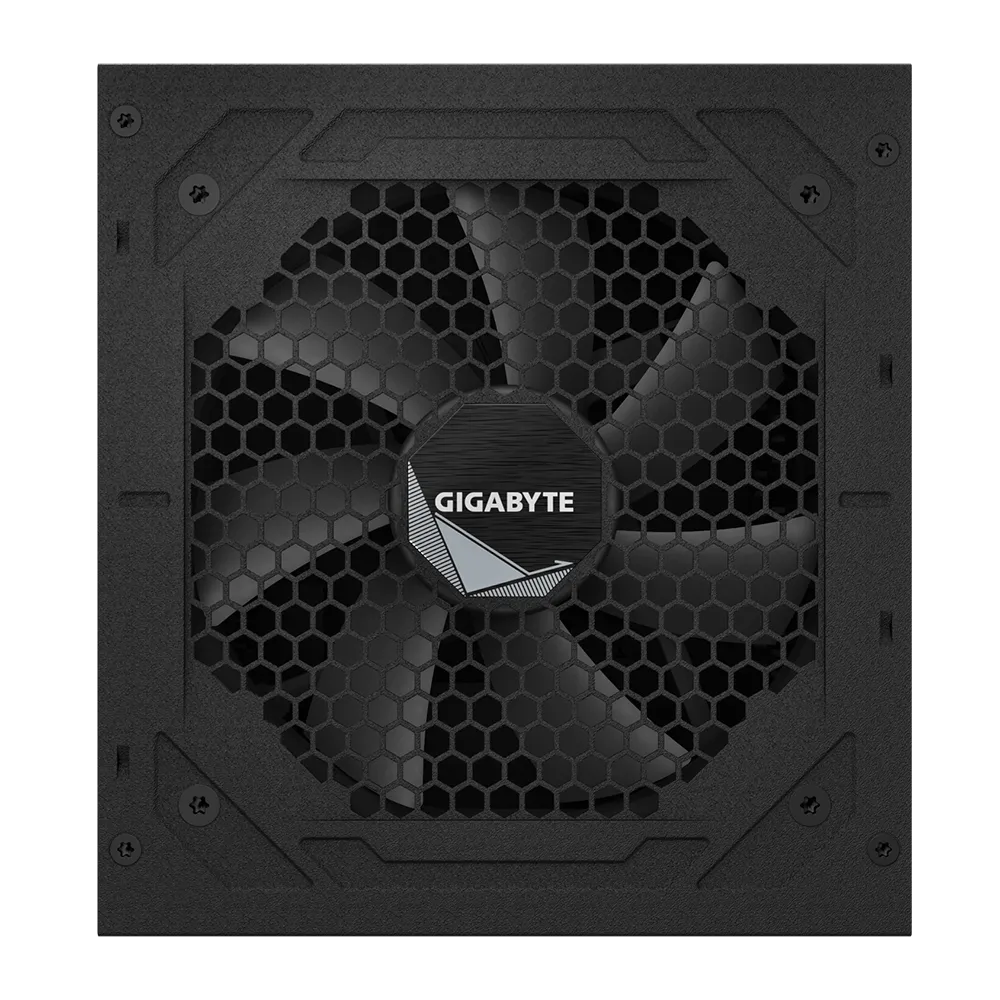

• 120mm smart hydraulic bearing (HYB) fan
• OVP/OPP/SCP/UVP/OCP/OTP protection

1. Support PCIe Gen 5.0 graphics card

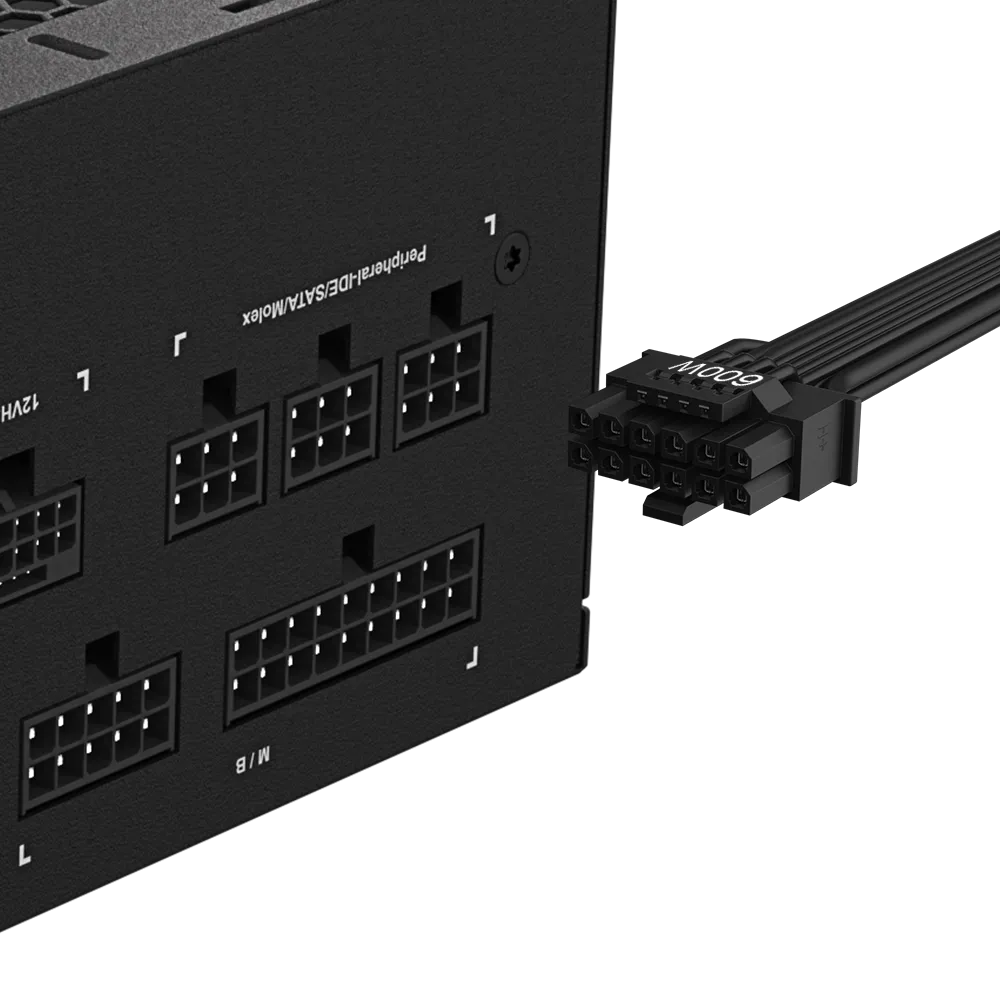

2. High-quality native 16-pin cable supports 600W output
3. 80 PLUS Gold certified

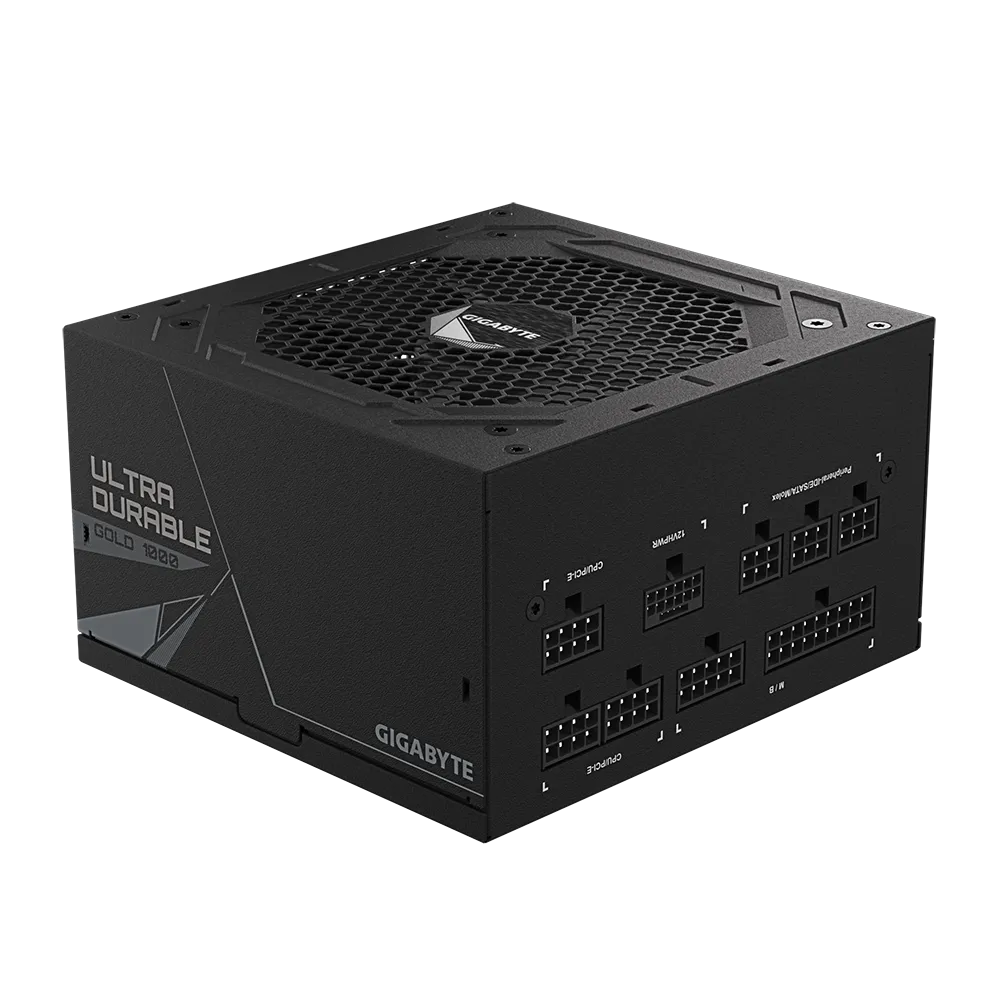

4. Fully modular design
5. Compact design
6. 10 years warranty

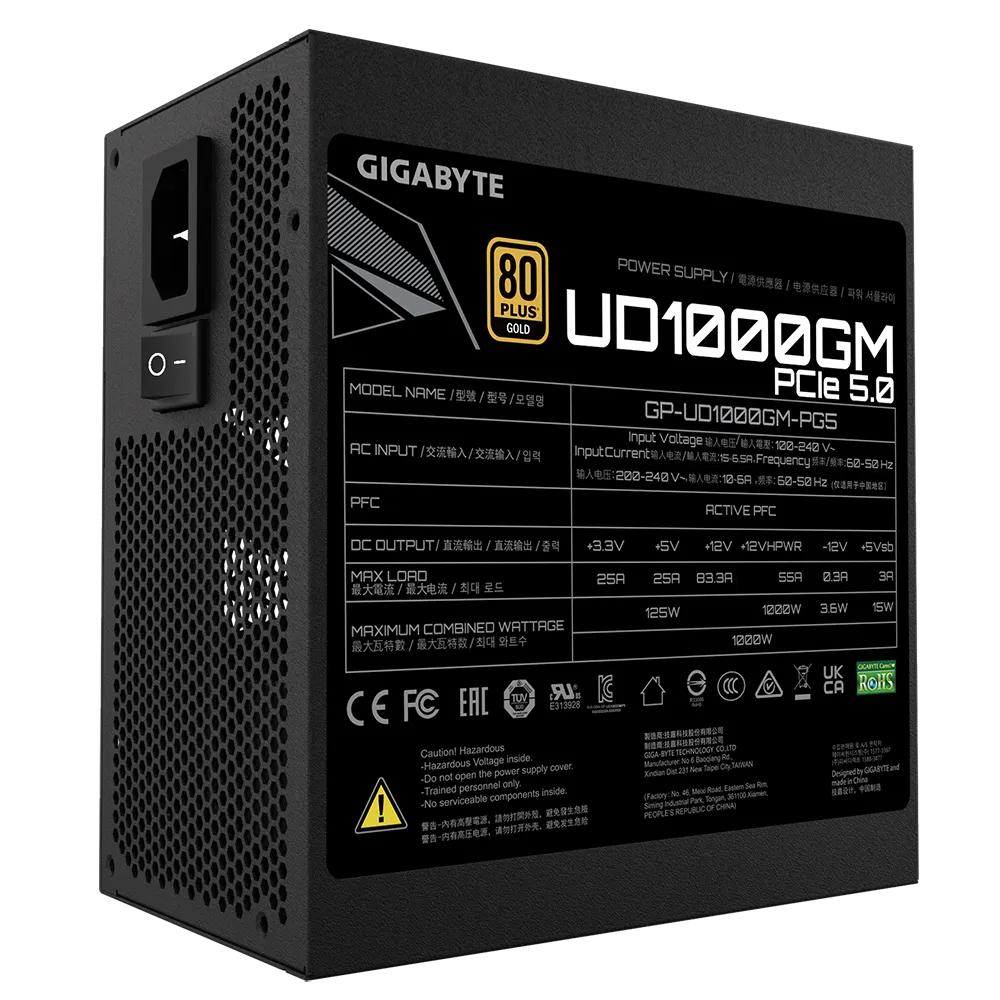

Model : GP-UD1000GM PG5

Type: Intel Form Factor ATX 12V

PFC: Active PFC (>0.9 typical)

Input Voltage: 100-240 Vac (full range)

Input Current: 15-6.5A

Input Frequency: 60-50 Hz

Output Capacity: 1000W

Dimension: 150 x 140 x 86 mm

Fan Type: 120mm Hydraulic Bearing (HYB) fan

80 PLUS: Gold

Efficiency: 90% at typical load

MTBF: >100,000 hours

Protection: OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal: 100-150ms

Hold Up Time: >16ms

Cable Type: Flat, All black

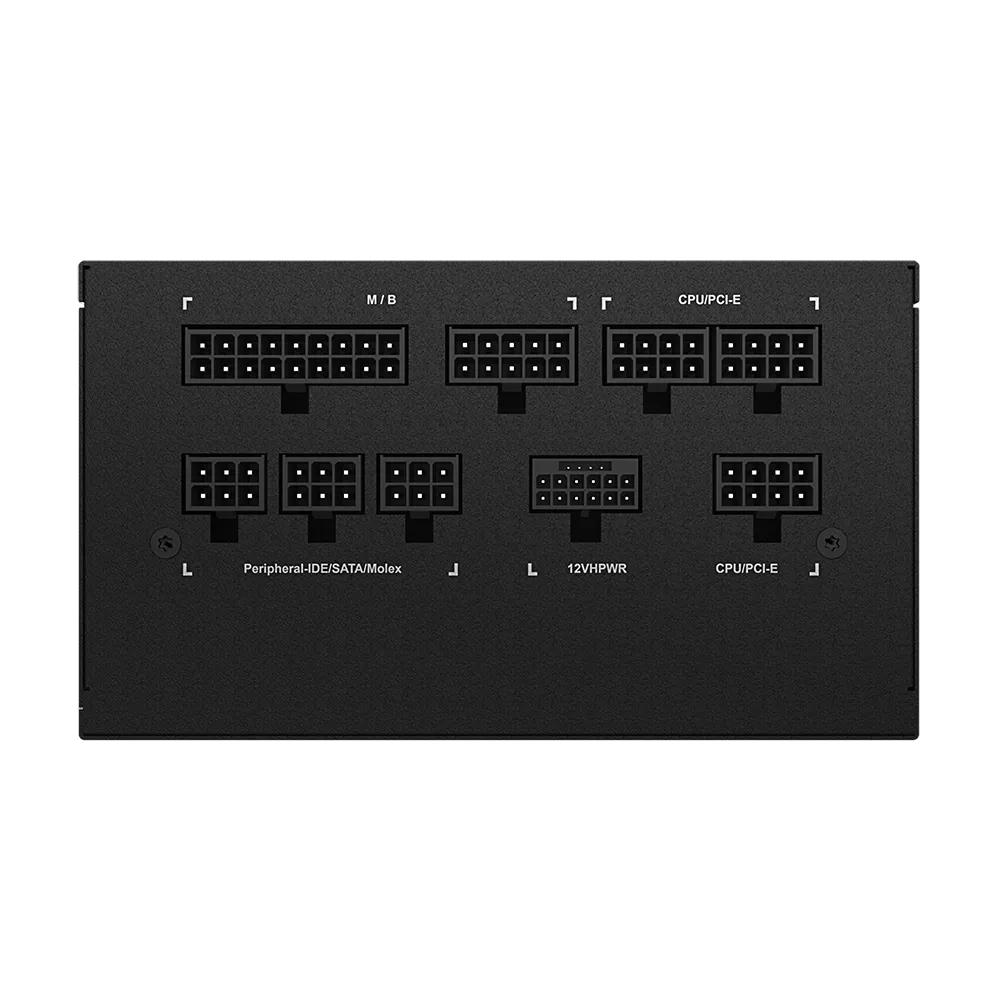

Connectors:

ATX/MB 20+4 Pin x 1 : 610mm*1

CPU/EPS 4+4 Pin x 2 : 600mm+200mm*1

PCI-e 16 Pin x 1: 700mm*1

PCI-e 6+2 Pin x 4 : 600mm+150mm*2

SATA x 8 : 600mm+150mm+150mm+150mm*2

4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
