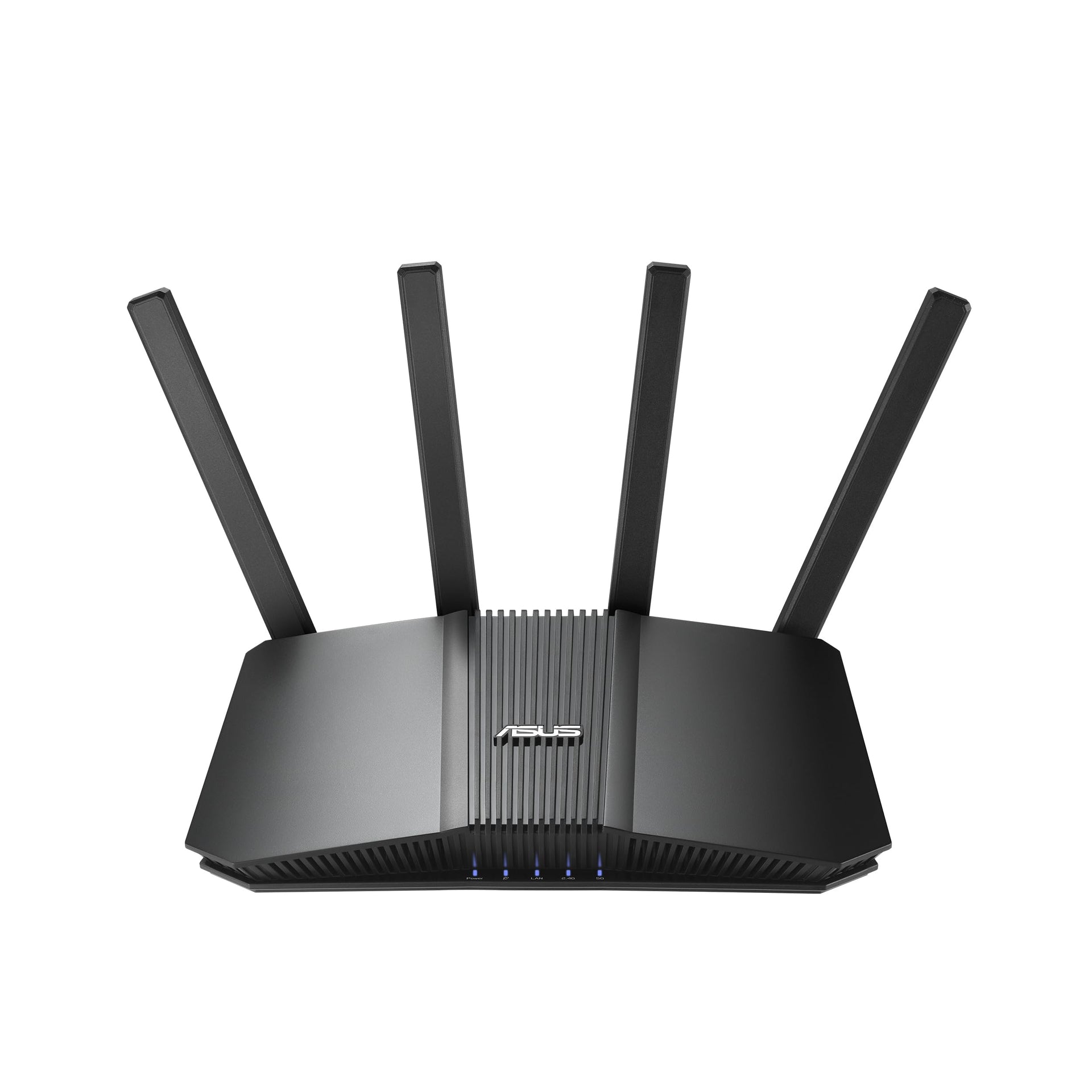

ASUS RT-BE82U WiFi 7 Dual-Band Extendable Router, 4K-QAM, MLO, Five 2.5GbE ports - 197105828810

IPv6

IPv4

WiFi 7 (802.11be)

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

BE6500 ultimate BE performance : 688+5764 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

External antenna x 4

5GHz 4x4

2.4GHz 2x2

2.0 GHz quad-core processor

256 MB Flash
1 GB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth

5 GHz

2.4 GHz

Repeater Mode

Media Bridge Mode

Access Point Mode

AiMesh Node Mode

Wireless Router Mode

1x 2.5G for WAN,
4x 2.5G for LAN,
USB 3.2 Gen 1 x 1

WPS Button, Reset Button, Power Button

Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1

AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 3 A current

RT-BE82U
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

502g

238 x 147 x 97 mm

AiMesh, • Primary AiMesh Router, • AiMesh Node

"Allow you to block access to unwanted websites and apps.", Web & Apps Filters, Time Scheduling, Safe Browsing, Customized Internet Schedule

"The Guest Network provides Internet connection for guests but restricts access to your local network.", Support Guest Network, • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3, Guest Network Connection Time Limit

AiProtection, VPN, WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise, WPS, Let's Encrypt, DNS-over-TLS, SSH, Security Scan, Firewall, • Maximum Firewall Keyword Filter : 64, • Maximum Firewall Network Service Filter : 32, • Maximum Firewall URL Filter : 64

AiProtection, • Router Security Assessment, • Malicious Site Blocking, • Two-Way IPS, • Infected Device Prevention and Blocking

Instant Guard, VPN Client L2TP, VPN Client Open VPN, VPN Client PPTP, VPN Client WireGuard, VPN Server IPSec, VPN Server Open VPN, VPN Server PPTP, VPN Server WireGuard

Adaptive QoS, • Bandwidth Monitor, • Bandwidth Limiter, -- Maximum Bandwidth Limiter Rule : 32, Traditional QoS, -- Maximum Traditional QoS Rule : 32, Traffic Monitor, • Real-time Traffic Monitor, • Wired Traffic Monitor, • Wireless Traffic Monitor, Traffic Analyzer, • Traffic Analysis Period : Daily, Weekly, Monthly, • Website History

Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP, Dual WAN, 3G / 4G LTE dongle, 4G / 5G Auto Mobile Tethering, Port forwarding, • Maximum Port Forwarding Rule : 64, Port triggering, • Maximum Port Triggering Rule : 32, DMZ, DDNS, NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay

DHCP Server, IGMP Snooping, IPTV, Manually Assign IP Address, • Maximum Manually Assign IP Address Rule : 64, Wake on LAN (WOL)

MU-MIMO, UTF-8 SSID, WiFi MAC Address Filter, • Maximum MAC Filters : 64, Wireless Scheduler, Airtime Fairness, RADIUS Client, Universal Beamforming, Explicit Beamforming

4G / 5G Auto Mobile Tethering, File System : HFS+, NTFS, vFAT, ext2, ext3, ext4, Safely Remove Disk, AiCloud, Download Master, AiDisk, Media Server, Time Machine, Samba Server, FTP Server, Shared Folder Privileges

WEB: ASUSWRT, APP: ASUS Router APP

Configuration Backup and Restore, Diagnosis tools, Feedback System, System Log, New Device Connect Notification, Login Captcha, Connection Diagnosis, Auto Firmware Update
