GIGABYTE GP-UD850GM 850W ATX3.0 80+ GOLD FULL MODULAR PSU - 4719331553166

FEATURES

• Ultra Durable

- Main Japanese capacitors

- Enhanced thermal solution

- 120mm smart hydraulic bearing (HYB) fan

- OVP/OPP/SCP/UVP/OCP/OTP protection

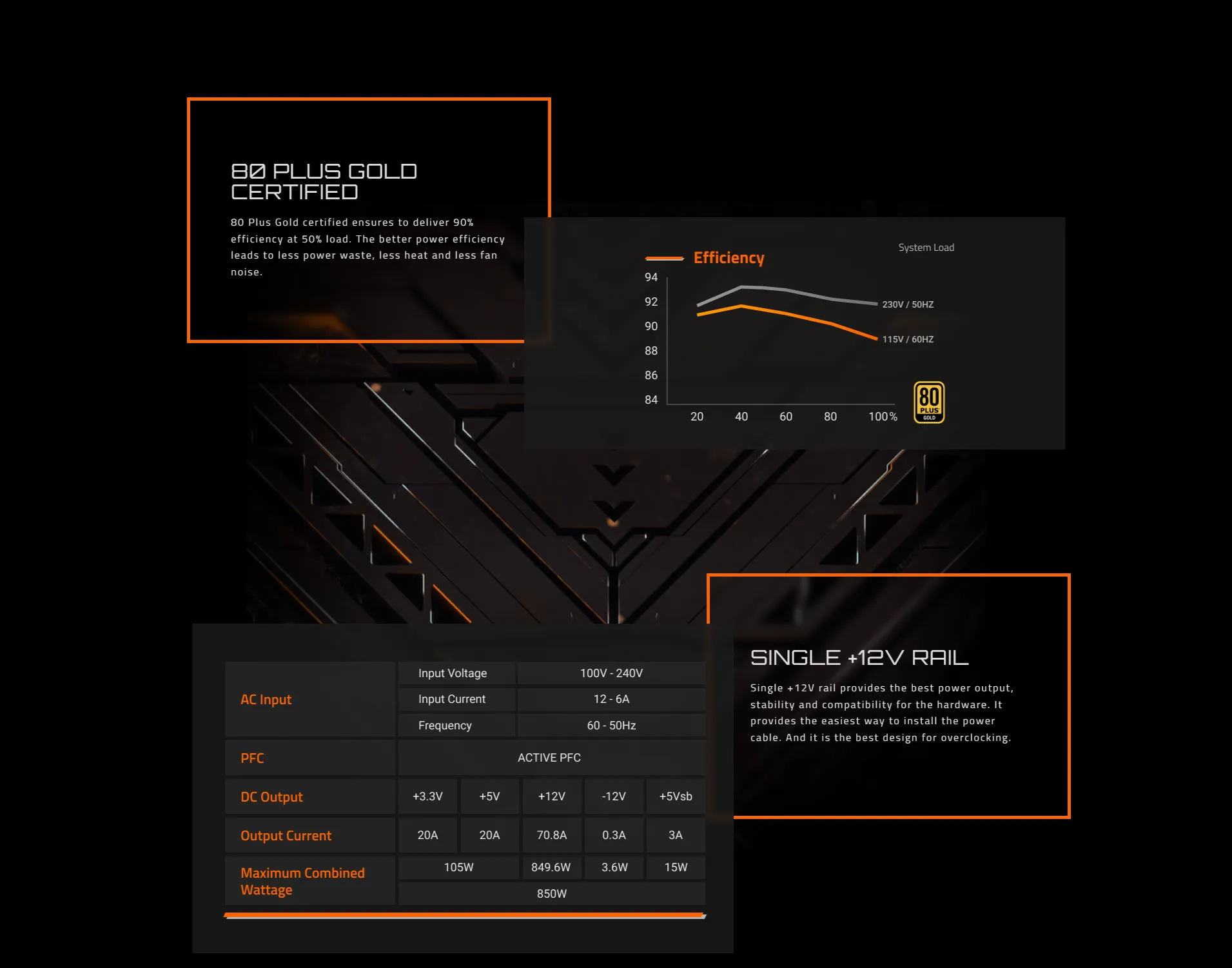

• 80 PLUS Gold certified

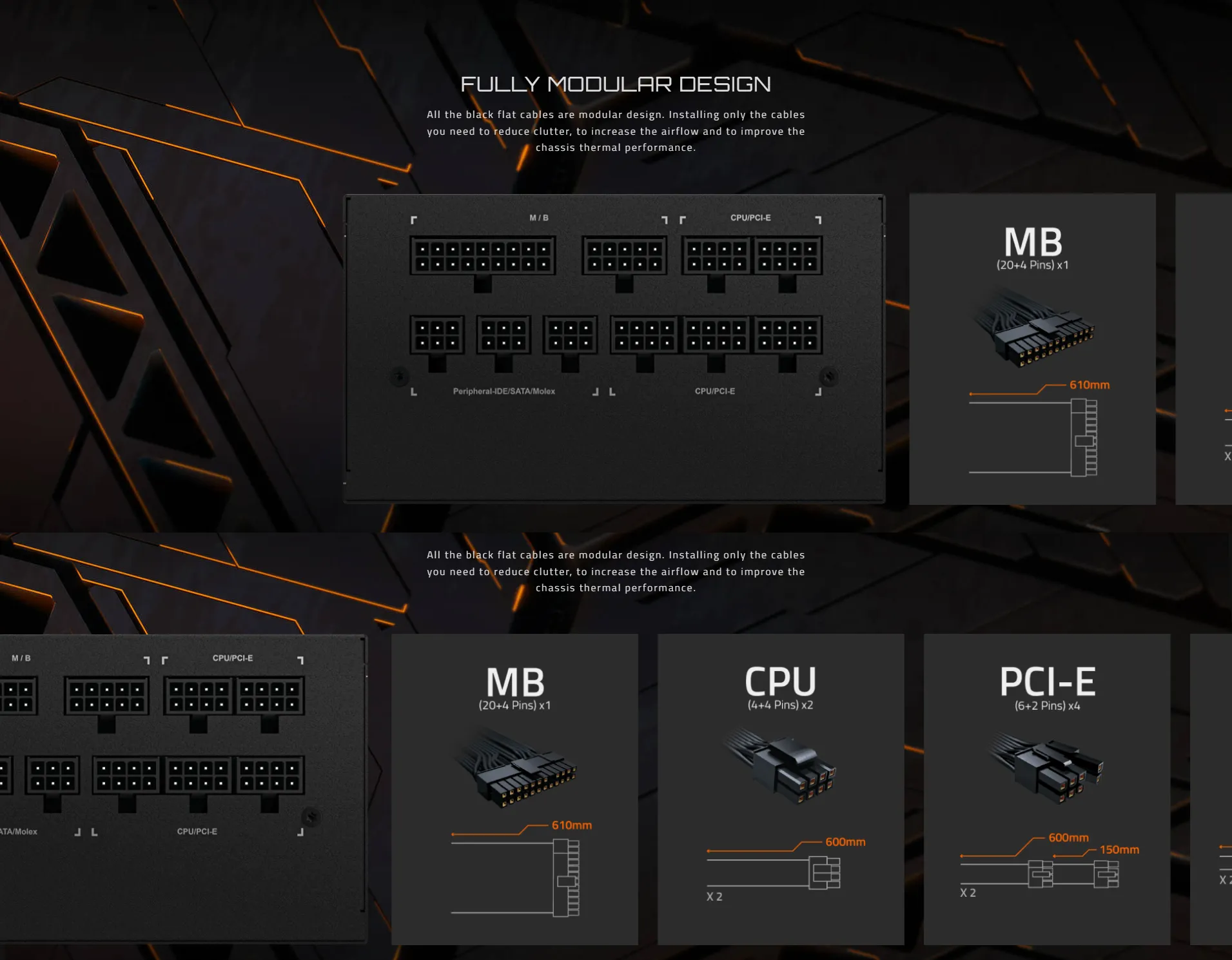

• Fully modular design
• Powerful single +12V rail

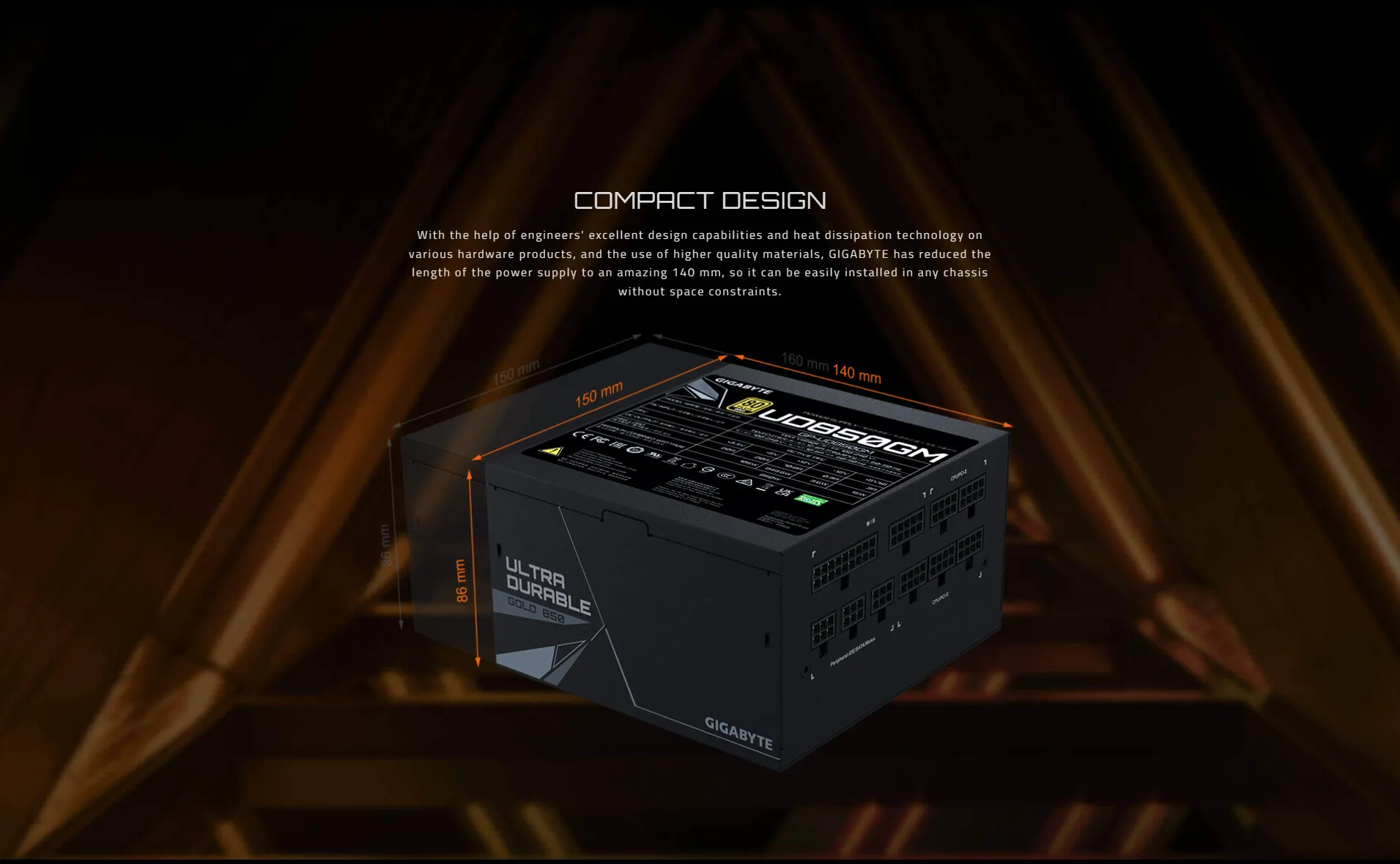

• Compact design
• 5 years warranty (Adjusted according to different regions)

SPECIFICATIONS

Model:

• GP-UD850GM

Type:

• Intel Form Factor ATX 12V v2.31

PFC:

• Active PFC (>0.9 typical)

Input Voltage:

• 100-240 Vac (full range)

Input Current:

• 12-6A

Input Frequency:

• 60-50 Hz

Output Capacity:

• 850W

Dimension:

• 150 x 140 x 86 mm

Fan Type:

• 120mm Hydraulic Bearing(HYB)fan

80 PLUS:

• Gold

Efficiency:

• 90% at typical load

MTBF:

• >100,000 hours

Protection:

• OVP/OPP/SCP/UVP/OCP/OTP

Power Good Signal:

• 100-150ms

Hold Up Time:

• >16ms

Cable Type:

• Flat, All black

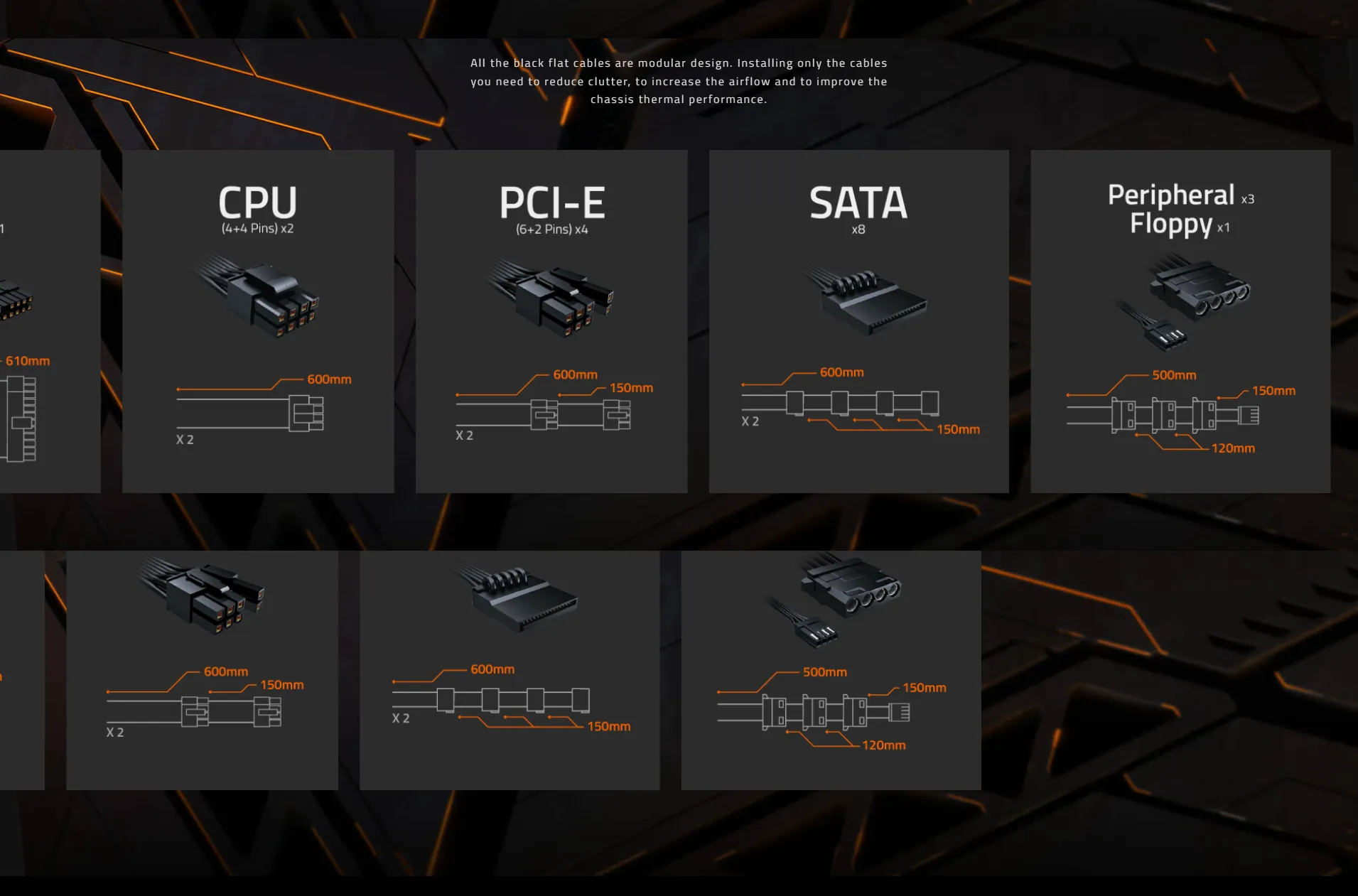

Connectors:

• ATX/MB 20+4 Pin x 1 : 610mm*1
• CPU/EPS 4+4 Pin x 2 : 600mm*2
• PCI-e 6+2 Pin x 4 : 600mm+150mm*2
• SATA x 8 : 600mm+150mm+150mm+150mm*2
• 4 Pin Peripheral x 3+4-Pin floppy x 1 : 500mm+120mm+120mm+150mm*1
